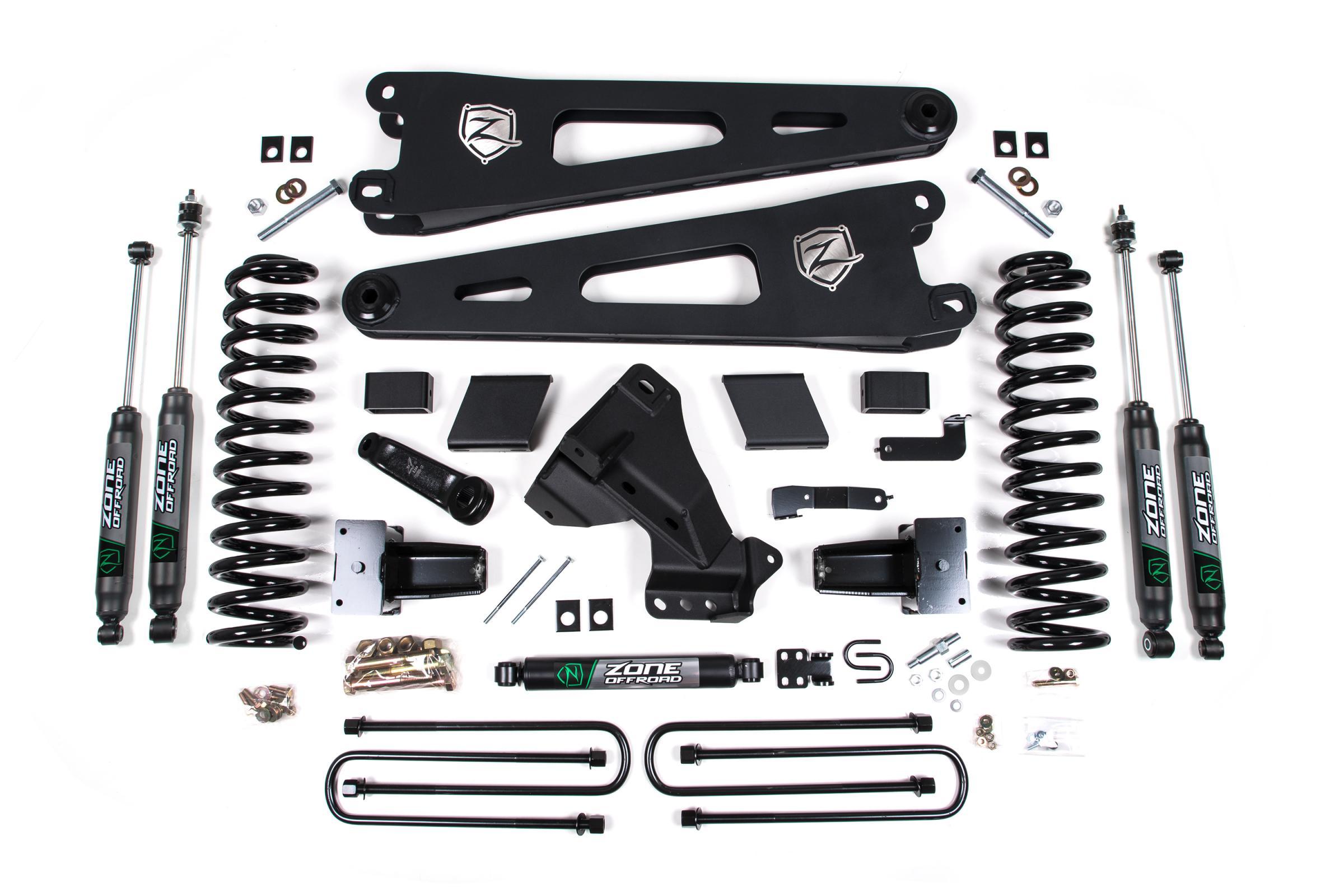

Zone Offroad 20-22 Ford F-250/F-350 Super Duty 7 Inch Lift Kit Nitro Shocks Gas - ZONF65N
Zone Offroad now offers 7 Inch radius arm lift kits for the 2020-2022 Ford F250/F30 Super Duty 4WD gas trucks. These new 7 Inch lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37 Inch tires.
As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:
- Front Lift Height 7 Inch
- Rear Lift Height 5 Inch
- Material Steel
- Front Lift Method Coil Springs
- Rear Lift Method Block Kit
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 20 x 10
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 3 Inch x 12.5
- Wheel Size 3 18 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 37 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Welding Required No
In The Box:
- Coil Springs
- Rear Lift Block & U-Bolt Kit
- Radius Arms
Features:
- Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
- Forged pitman arm to correct steering angles
- Heavy duty fabricated track bar relocation bracket to re-center front axle
- Full length Diesel/ Gas specific coil springs for a smooth ride
Kit Components:
- ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
- ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
- ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
- ZONF1608 2020-2024 F250/F350 6.5 Inch Rear Box Kit 1 711745594937
- ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
- ZONF1623 2005-2024 Super Duty 6 Inch Gas Coil (one) 2 711745599406
