Zone Offroad 20-22 Ford F-250/F-350 Super Duty 7 Inch Radius Arm Drop Lift Kit With Nitro Shocks Diesel - ZONF62N
Step up your game with these 7 Inch standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks.
Kits include a 5year/60,000mile drivetrain warranty.
Quick Specs:
- Front Lift Height 7 Inch
- Rear Lift Height 5 Inch
- Material Steel
- Front Lift Method Coil Springs
- Rear Lift Method Block Kit
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37x 12.5
- Wheel Size 2 20 x 10
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 37h x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Welding Required No

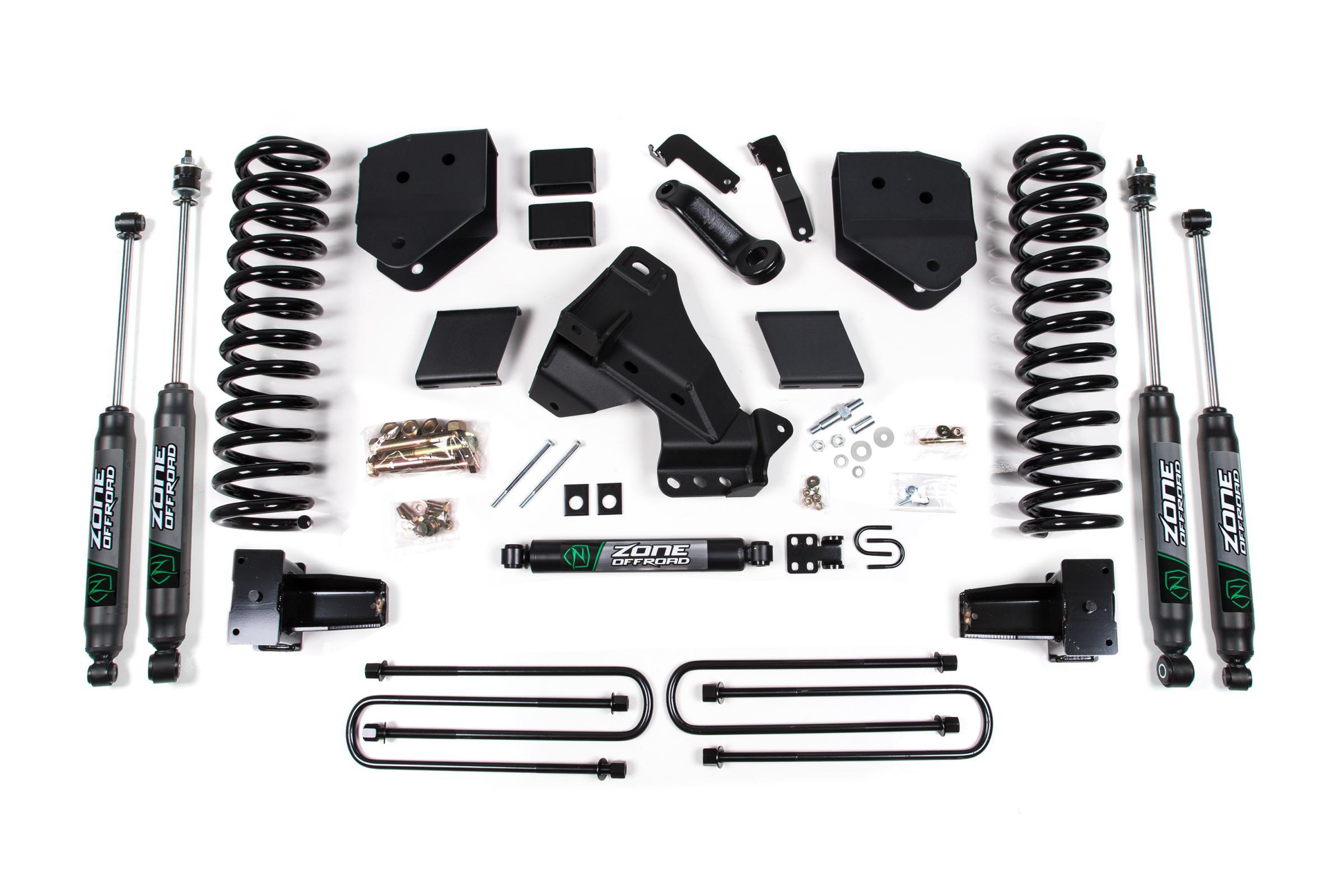

In The Box:
- Coil Springs
- Radius Arm Drop Brackets
- Rear Lift Block & U-Bolt Kit
Features:
- Corrects suspension geometry with high strength radius arm drop brackets
- Forged pitman arm to correct steering angles
- Heavy duty fabricated track bar relocation bracket to re-center front axle
- Full length Diesel/ Gas specific coil springs for a smooth ride
Kit Components:
- ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
- ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
- ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699
- ZONF1605 20-22 F250/F350 6 Inch Radius Arm Drop Front Box Kit 1 711745606067
- ZONF1608 2020-2024 F250/F350 6.5 Inch Rear Box Kit 1 711745594937
- ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
