Zone Offroad 19-24 RAM 3500 6.5 Inch Radius Arm Bracket 5 Inch Rear Block With Overload Diesel 8-Bolt T-Case No Shocks - ZOND112
Take your RAM 3500 to new heights with this 6.5 Inch standard lift kit from Zone Offroad. Kits include everything needed from full length coil springs and radius arm drop brackets to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:
- Front Lift Height 6.5 Inch
- Rear Lift Height 5 Inch
- Material Steel
- Front Lift Method Coil Springs
- Rear Lift Method Block Kit
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 4.5 Inch-5.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch-5.5 Inch
- Max Tire Size 2 37 x 12.5
- Finish Powdercoat
Features:
- High strength progressive rate front coil springs for a great ride on any terrain
- Heavy duty 1/4 Inch steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
- HD track bar relocation bracket to correctly position front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
- Allows clearance for up to 37 tires

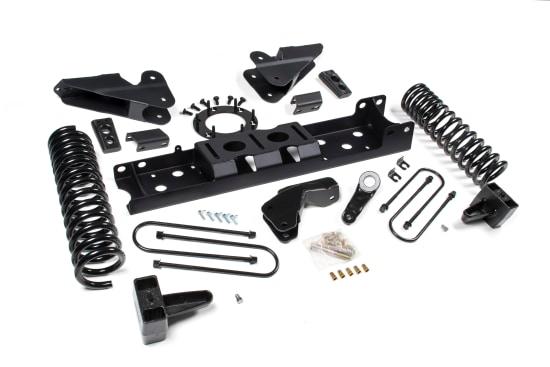

Kit Components:
- ZOND1517 19-24 RAM 3500 5 Inch Rear Box 4 3/8 Inch U-bolt With Overload 1 711745594968
- ZOND1603 19-24 RAM 2500 / 19-24 RAM 3500 6.5 Inch Front Box Kit 1 711745602397
- ZOND3602 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 6.5 Inch Diesel 2 711745598645
- ZOND5823 19-24 RAM 3500 T-Case Index Kit 8 Bolt 1 711745606050
