Zone Offroad 19-24 RAM 2500 6.5 Inch Radius Arm 4.5 Inch Rear Coils Diesel 6-Bolt T-Case Nitro Shocks - ZOND118N
Take your RAM 2500 to new heights with this 6.5 Inch radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 tires.
Quick Specs:
- Front Lift Height 6.5 Inch
- Rear Lift Height 4.5 Inch
- Material Steel
- Front Lift Method Coil Springs
- Rear Lift Method Coil Springs
- Lift Type Suspension
- Wheel Size 20 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 37x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Welding Required No
Features:
- High strength progressive rate front coil springs for a great ride on any terrain
- Heavy duty 1/4 Inch steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
- HD track bar relocation bracket to correctly position front axle under the truck
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
- Allows clearance for up to 37 tires

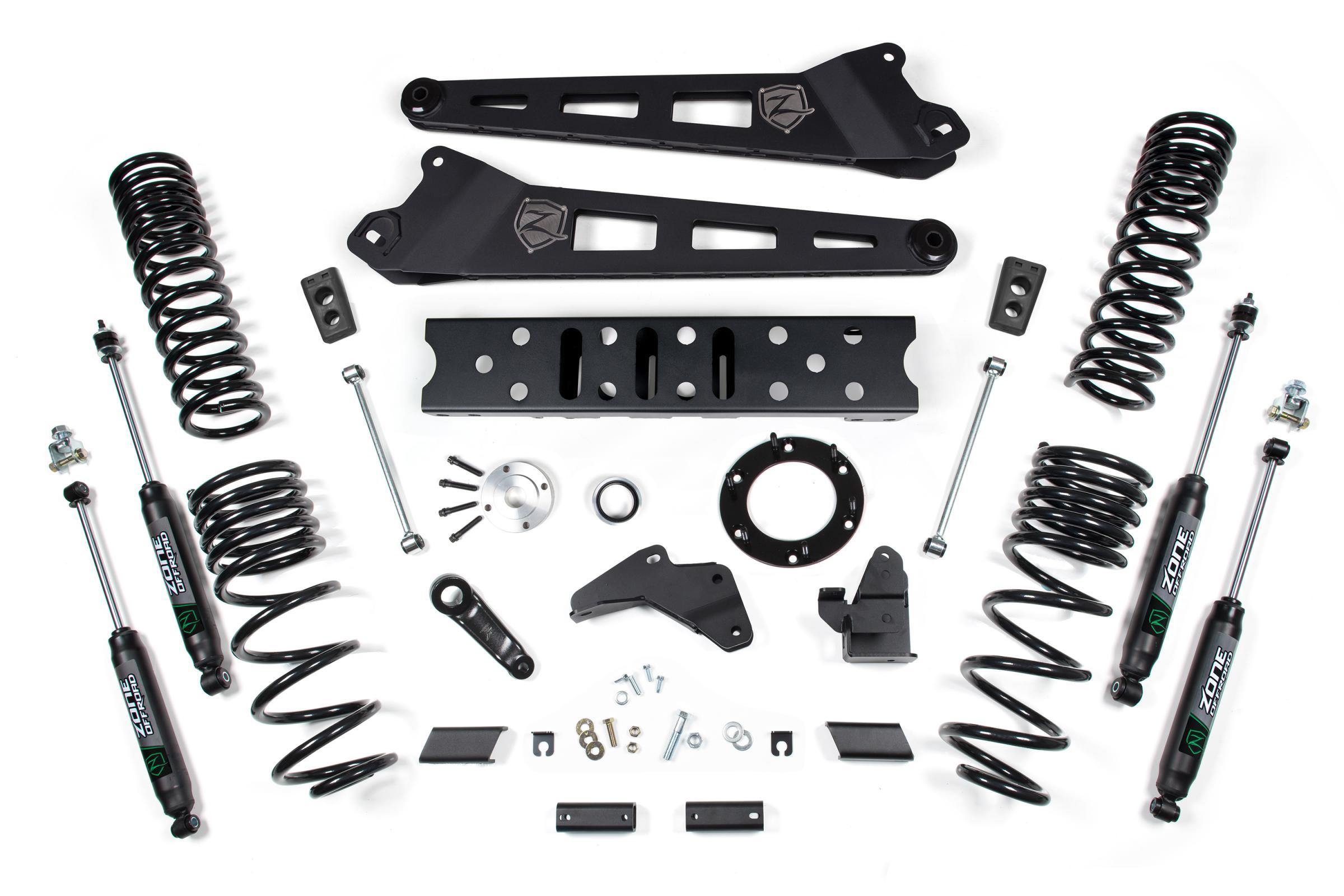

Kit Components:
- ZON7742 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595620
- ZON7756 Nitro- 27.9 x 16.6 x 2-3/8 Special/EB1 2 711745595705
- ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
- ZOND1458 19-24 RAM 2500 4.5 Inch Rear Coil Spring Box Kit 1 711745605824
- ZOND1604 19-24 RAM 2500 / 19-24 RAM 3500 6.5 Inch Rplmt Radius Arm Box Kit 1 711745606012
- ZOND3602 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Coils 6.5 Inch Diesel 2 711745598645
- ZOND5620 19-24 RAM 2500 / 19-24 RAM 3500 T-Case Index 6 Bolt Diesel 6 Inch 1 711745594982
