Zone Offroad 19-23 Silverado/Sierra 1500 3.5 Inch Adventure Series Lift Kit With FOX Shocks - ZONC47F
More than a leveling kit, this 3.5 Inch Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35 Inch tires.
These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5 Inch of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer).
Optional weld-in steering stops are supplied allowing clearance for up to 35 Inch tires. In the rear of this kit, a cast 2 Inch lift block lifts and levels.
Quick Specs:
- Front Lift Height 3.5 Inch
- Material Steel
- Front Lift Method Strut Spacers
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 20 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 35x12.50 (Chevy)
- Max Tire Size 2 35x12.50 (GMC)
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

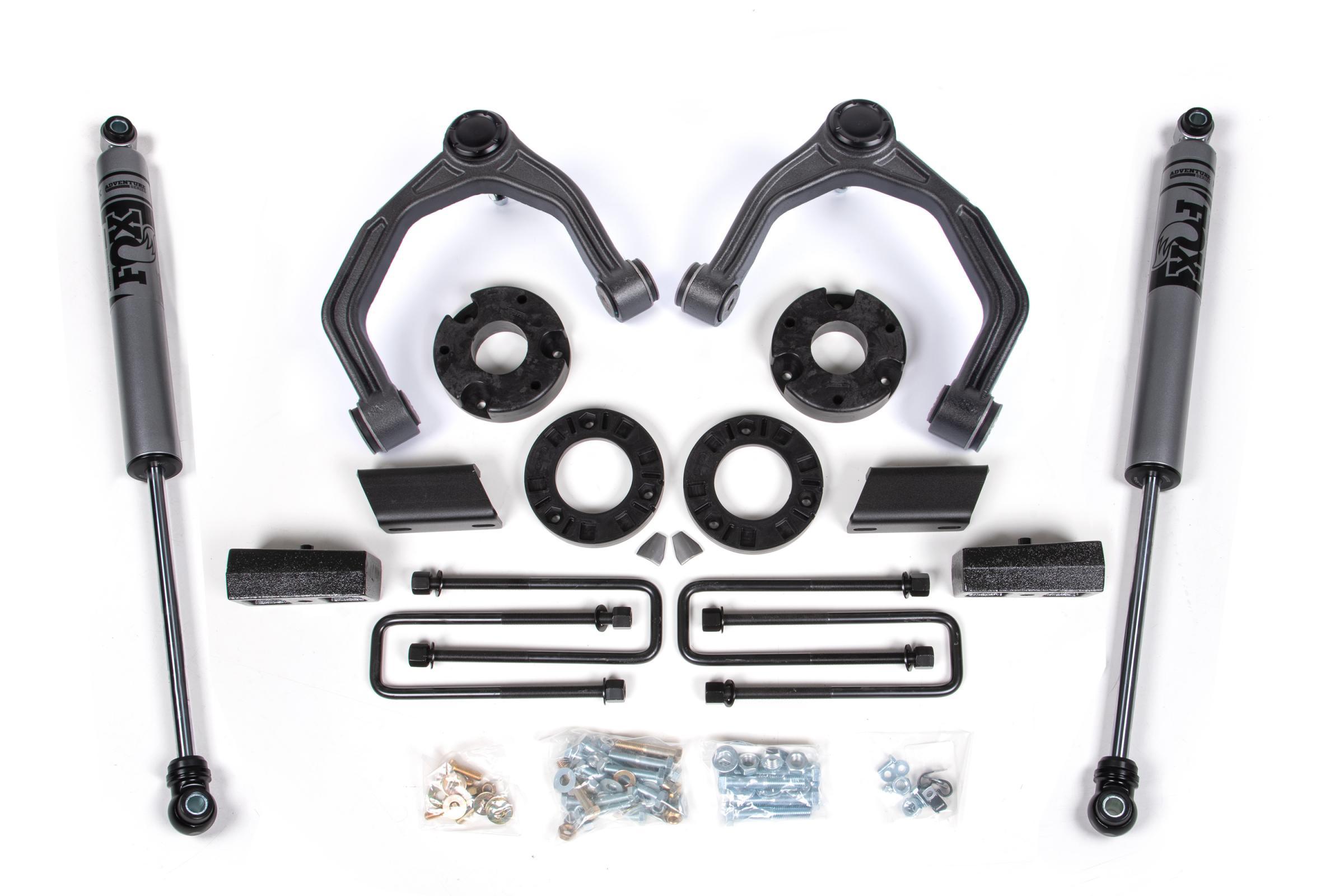

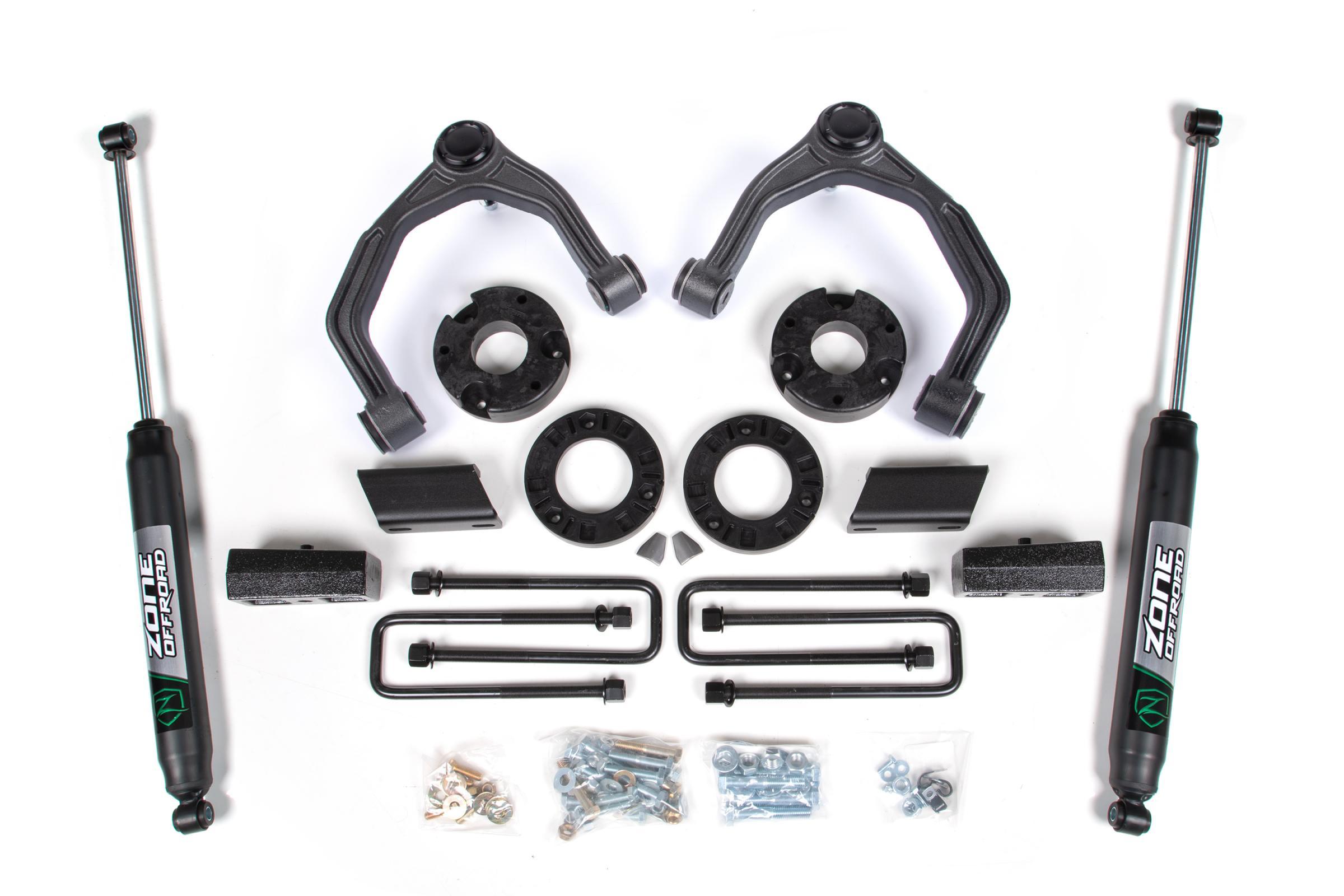

In The Box:
- Rear Lift Block & U-Bolt Kit
- Strut Spacers
- Upper Control Arms
Features:
- High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
- Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
- Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
- Maintains ride and handling characteristics with clearance for larger tires.
- 2 Inch rear lift blocks and heavy duty u-bolts to level the stance.
- Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
- Optional Steering Stops included for larger wheel/tire combinations
Kit Components:
- FOX98450719 Fox Adv Shock 26.85 x 16.76 x 2-EB1/EB1 2 810156368295
- ZONC2353 2019-2024 Chevrolet Silverado/GMC Sierra 1500 3.5 Inch Adventure Series Box Kit 1 711745612679
