Zone Offroad 19-22 Silverado/Sierra 1500 AT4 / Trail Boss 1.75 Inch Lift Kit 1 Inch Rear Block No Shocks - ZONC74
Specially designed for the 2019-2022 Chevy/GMC 1500 AT4 / Trail Boss trucks, these kits are designed to a higher standard, working within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires.

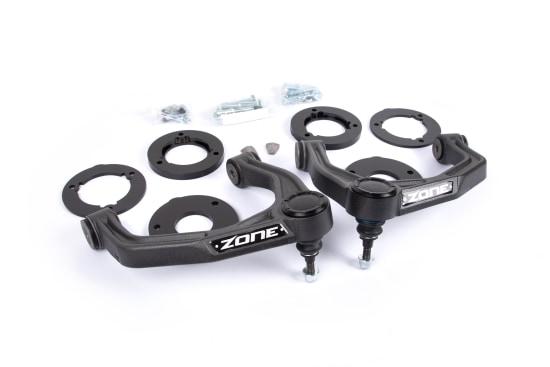

Kits include strut spacers, adventure series upper control arms, hardware packs and steering stop extensions.
Quick Specs:
- Rear Block Height 3 Inch
- Front Lift Height 1.75 Inch
- Rear Lift Height 1 Inch
- Material Metal
- Front Lift Method Strut Spacers & Preload
- Rear Lift Method Block Kit
- Lift Type Leveling Kit
- Wheel Size See Notes
- Back Spacing See Notes
- Max Tire Size See Notes
- Finish Powdercoat
- Cutting Required Yes
- Has Control Arm type Cast Steel
- Accommodates Factory Wheels See Notes
In The Box:
- Strut Spacers
- Upper Control Arms
Features:
- 3 piece design with top mount spacer and 2 preload spacers to raise ride height without over-extending suspension during droop travel
- High strength adventure series upper control arms allow more travel, increase strength and correct issues caused by kits using the factory UCAs
- Maintains ride quality and handling characteristics
- Allows clearance for 33-34 inch tires
- Includes Factory Protection Plus
Kit Components:
- ZONC1173 2019-2024 Chevy/GMC 1500 AT4 / Trail Boss 1.75 Inch Leveling Kit 1 711745612631
- ZONC1308 2019-2023 Chevy/GMC 1500 3 Inch Rear Block Kit 1 711745613676
