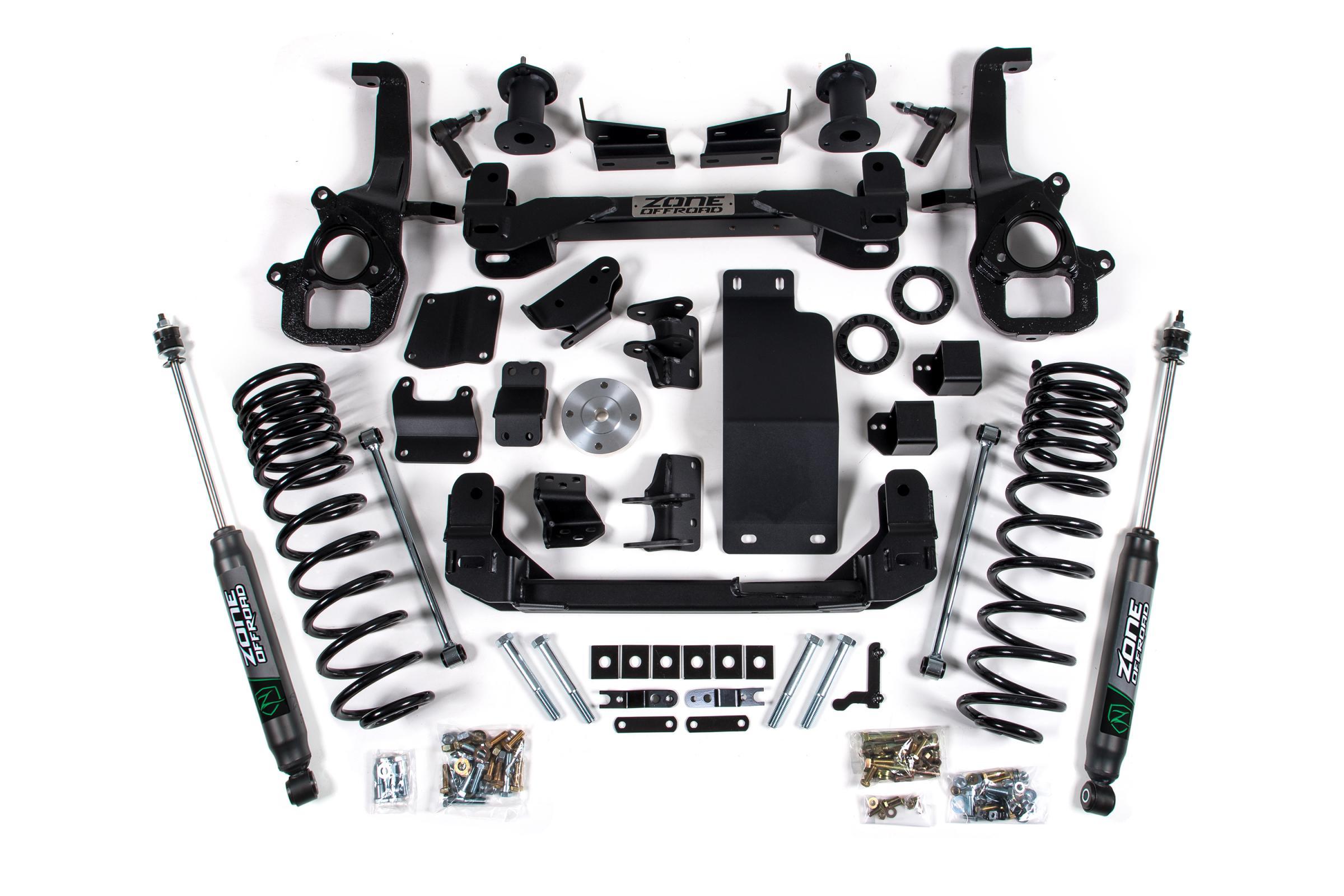

Zone Offroad 20-23 RAM 1500 4WD 6 Inch Front 5 Inch Rear Lift Kit With OE 22in Wheels Fox Shocks - ZOND97F
Take your RAM 1500 to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Material Steel
- Front Lift Method Knuckle & Strut Spacer
- Rear Lift Method Coil Springs
- Lift Type Lift Kit
- Wheel Size 20 x 9
- Back Spacing 4.5-5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5-5 Inch
- Max Tire Size 2 37 x 12.5
- Finish Powdercoat
- Cutting Required Yes
- FMVSS Certification Yes
- Accommodates Factory Wheels See Notes
In The Box:
- Coil Springs - Rear
- Differential Relocation Brackets
- Frame Crossmembers - Front and Rear
- Driveshaft Spacer
- Steering Knuckles
- Strut Spacers
- Sway Bar Links
- Tie Rod End(s)
Features:
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
- 5 Inch rear coil springs achieve leveled stance while maintain ride quality and load capacity.
Kit Components:
- FOX98450751 Fox Adv Shock 29.84 x 18.25 x 2-S50/EB1 2
- ZOND2634 2019-2023 RAM 1500 4WD 6 Inch Strut Spacer Box Kit 1 711745594340
- ZOND2639 2019-2023 RAM 1500 4WD 3-5 Inch Rear Box Kit 1 711745594357
- ZOND2640 2019-2023 RAM 1500 4WD Knuckle Box Kit 22in Wheel Drv 1 711745594364
- ZOND2641 2019-2023 RAM 1500 4WD Knuckle Box Kit 22in Wheel Pass 1 711745594371
- ZOND2642 2019-2023 RAM 1500 4WD 4-6 Inch Front Box Kit 1 of 2 1 711745594388
- ZOND2643 2019-2023 RAM 1500 4WD 4-6 Inch Front Box Kit 2 of 2 1 711745594395
- ZOND3509 2019-2023 RAM 1500 4WD 5 Inch Rear Box Kit 1 711745594401
