Zone Offroad 17-19 Ford F-250/350 Super Duty 4 Inch Radius Arm Lift Kit 2 Inch Rear Block Diesel 3 Leaf Main No shocks - ZONF109
Take your Super Duty to new heights with this 4 Inch lift kit from Zone Offroad - now available for gas and diesel trucks! These kits can be cofigured with either radius arm drop brackets or upgraded to stout Zone HD Radius Arms for superior strength and durability.
Kits include everything needed to reliably lift your truck and the capability to run up to 37 Inch tires, from coil springs to steering correction and rear lift blocks to level the stance. Upgrade your stock shocks with Nitro Series Gas Shocks, or Fox 2.0 Adventure Series for even greater performance and control.
As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Get the look, performance, and capability your truck deserves!
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 2 Inch
- Material Metal
- Front Lift Method Coil Springs
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 20 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 37 x 12.5
- Wheel Size 3 Inch17 x 9
- Back Spacing 3 4.5 Inch
- Max Tire Size 3 37 x 12.5
Features:
- High strength front coil springs improve ride quality
- Radius arm drop brackets to correct caster and maintain suspension geometry included, or available with Zone HD Radius Arms for a ultra-strong upgrade
- Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle
- Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Replacement 2 Inch rear lift blocks and u-bolts to lift and level the stance

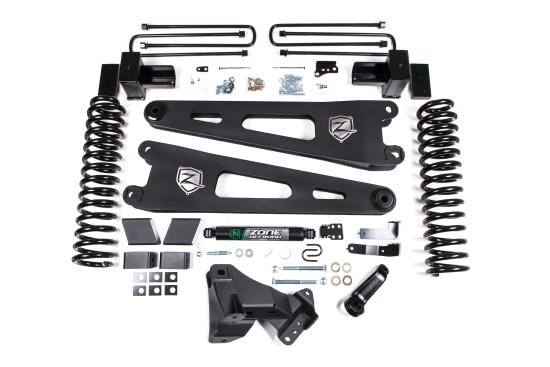

Kit Components:
- ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
- ZONF1318 2017-2024 F250 5 Inch Rear Block 3 Leaf Main 1 711745599130
- ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
- ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
