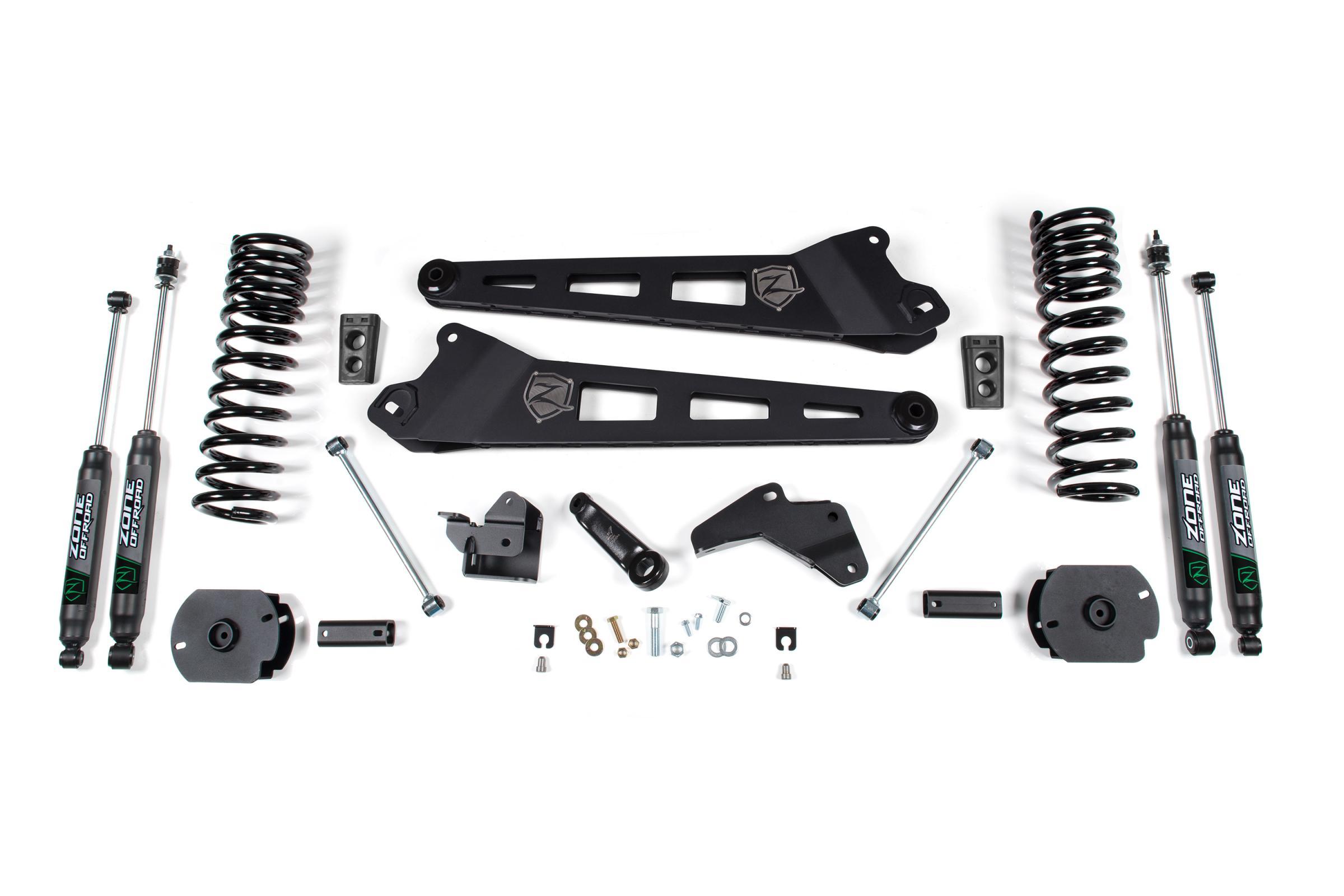

Zone Offroad 14-18 RAM 2500 4 Inch Replacement Radius Arm Lift Kit Gas With Nitro Shocks - ZOND63N
Take your RAM 2500 to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.
Quick Specs:
- Front Lift Height 4 Inch
- Rear Lift Height 2.5 Inch
- Front Lift Method Radius Arm Drop
- Rear Lift Method Coil Spring Spacers
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 17 x 9
- Back Spacing 2 5.75 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 5.75 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Bump Stops
- Coil Spring Spacers
- Coil Springs
- Dropped Pitman Arm
- Sway Bar Relocation Brackets
- Track Bar Relocation Bracket
- Radius Arms
Features:
- Progressive rate front coil springs improve ride quality and offroad performance
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
- Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Rear coil spacers, bump stop extensions, track bar bracket and sway bar links to level the stance and correct suspension geometry
Kit Components:
- ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
- ZON7758 Nitro- 26.2 x 15.7 x 2-3/8 Special/EB1 2 711745595736
- ZOND1258 2014-2024 Ram 2500 2.5 Inch Rear Spacer Box Kit 1 711745594272
- ZOND1402 13 Ram 4.5 Inch Rplmt Radius Arm Box Kit 1 711745598034
- ZOND1410 2014-2024 Ram 2500 / 2013-2024 Ram 3500 Replacement Radius Arm Box Kit 2 711745594296
- ZOND3301 2014-2024 Ram 2500 / 2013-2024 Ram 3500 4 Inch Coil Spring Gas 2 711745598553
