Zone Offroad 14-18 Silverado/Sierra 1500 2WD 6.5 Inch Cast Steel Arms Fox Adventure Shocks - ZONC33F
Take your Silverado/Sierra 1500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for 35 Inch tires.
Quick Specs:
- Front Lift Height 6.5 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Knuckle & Strut Spacer
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5.25 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3 5.75 Inch
- Max Tire Size 3 35 x 12.5
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

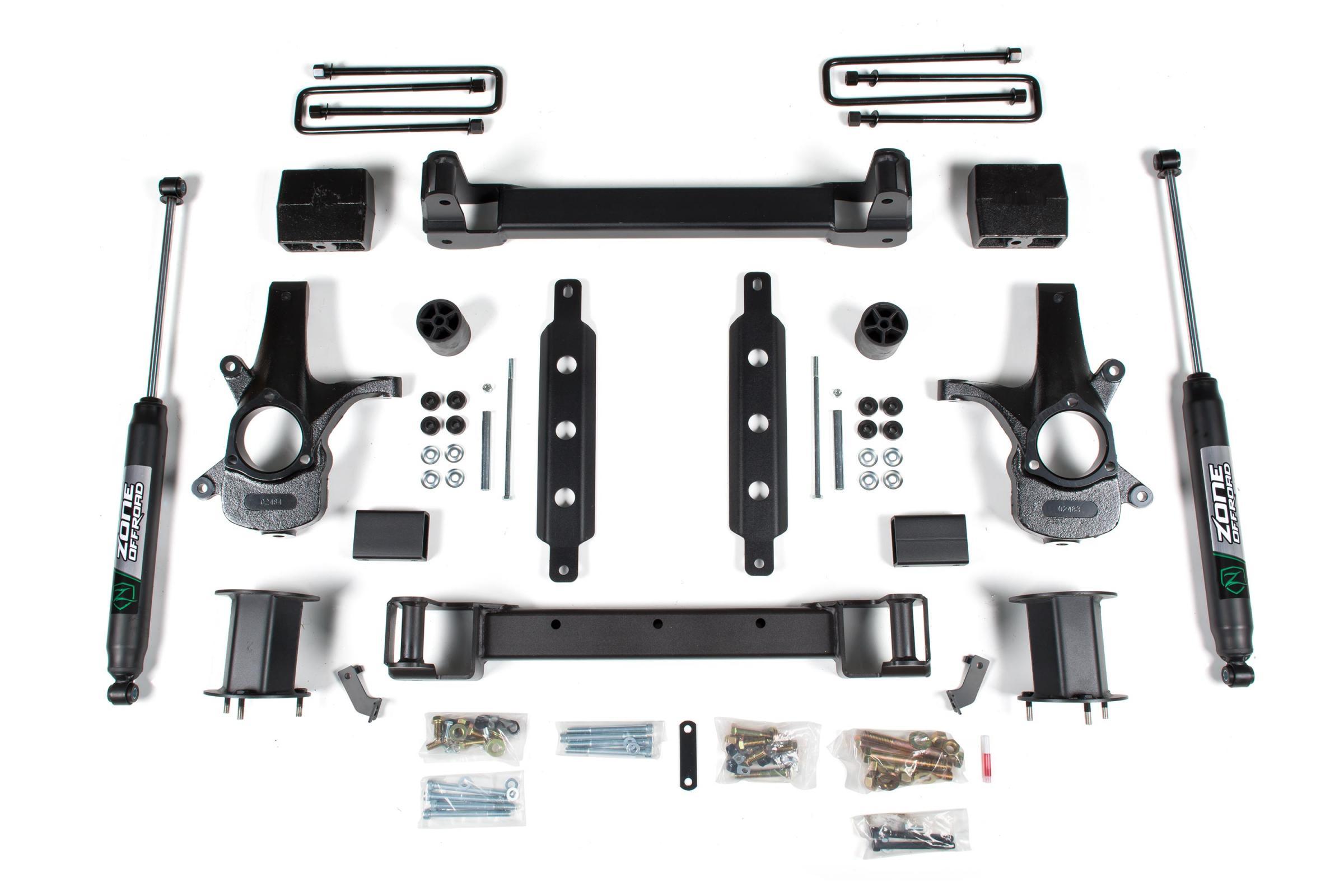

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Differential Drop Brackets
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Steering Knuckles
- Strut Spacers
- Sway Bar Relocation Brackets
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain FMVSS No126 (ESC System) compatibility
- Top mounted strut spacers to provide lift and install easily
- Rear 5 Inch lift block and u-bolt kit to lift and level the stance
- Sway bar, bracket line and bump stop relocation brackets to correct operating angles
- Allows clearance for up to 35 Inch tires
Kit Components:
- FOX98450759 Fox Adv Shock 30.05 x 18.46 x 2-EB1/EB1 2 810156368066
- ZONC2650 2014-2018 Chevy/GMC 1500 6.5 Inch/4.5 Inch Cast Steel 1 711745597303
- ZONC2653 2014-2018 Chevy/GMC 1500 2WD 6.5 Inch (Box 2of2) 1 711745597334
