Zone Offroad 11-16 F-250/350 8 Inch Lift Kit With Overload Diesel No Shocks - ZONF55
Take your Super Duty to new heights with this 8 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear block + add-a-leaf kit.
Get the look, performance, and capability your truck deserves with clearance for 38 Inch tires.
Quick Specs:
- Front Lift Height 8 Inch
- Rear Lift Height 6 Inch
- Front Lift Method Coil Springs
- Rear Lift Method Dual Add-A-Leafs & Block Kit
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 38 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 38 x 12.5
- Wheel Size 3 22 x 9
- Back Spacing 34.5 Inch
- Max Tire Size 3 38 x 12.5
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

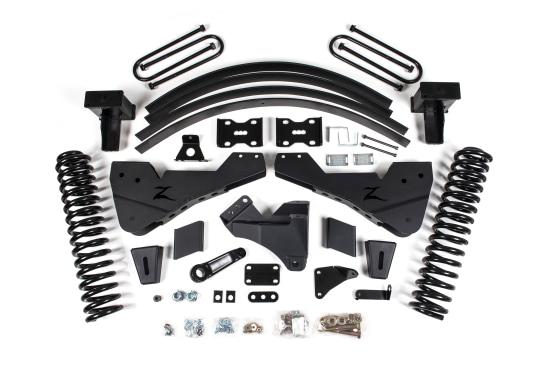

In The Box:
- Add-A-Leaf's
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Dropped Pitman Arm
- Radius Arm Drop Brackets
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
Features:
- Full length 8 Inch lift coil springs
- Forged pitman arms and HD track bar bracket to correct steering angles
- High strength radius arm drop brackets to corect suspension geometry
- Sway bar and brake line relocation brackets to correct operating angles
- Rear lift block + dual add-a-leaf kit to lift and level the rear stance
- Allows clearance for up to 38 Inch tires
Kit Components:
- ZONF1618 2011-16 F250 6 Inch Rear Block Kit w/ ovld 1 711745599383
- ZONF1801 2011-16 F250 8 Inch Front Box Kit 1of2 1 711745599413
- ZONF1802 2011-16 F250 8 Inch Front Box Kit 2 of 2 1 711745599420
- ZONF3801 2011-16 F250 8 Inch Coil Kit Diesel (1 coil) 2 711745599840
- ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956
