Zone Offroad 10-13 RAM 2500 Powerwagon 4WD 5 Inch Coil Spring Lift Kit System With Nitro Shocks - ZOND131N
Go big and go anywhere with this 5 Inch Lift Kit for your truck that gives you clearance for huge tires up to 35 Inch. This kit has everything you need to raise your 4WD 2010 - 2013 InchDodge / Ram 2500 / 3500 Truck.
If you're going to do it, do it right.
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height -
- Front Lift Method Coil Springs
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

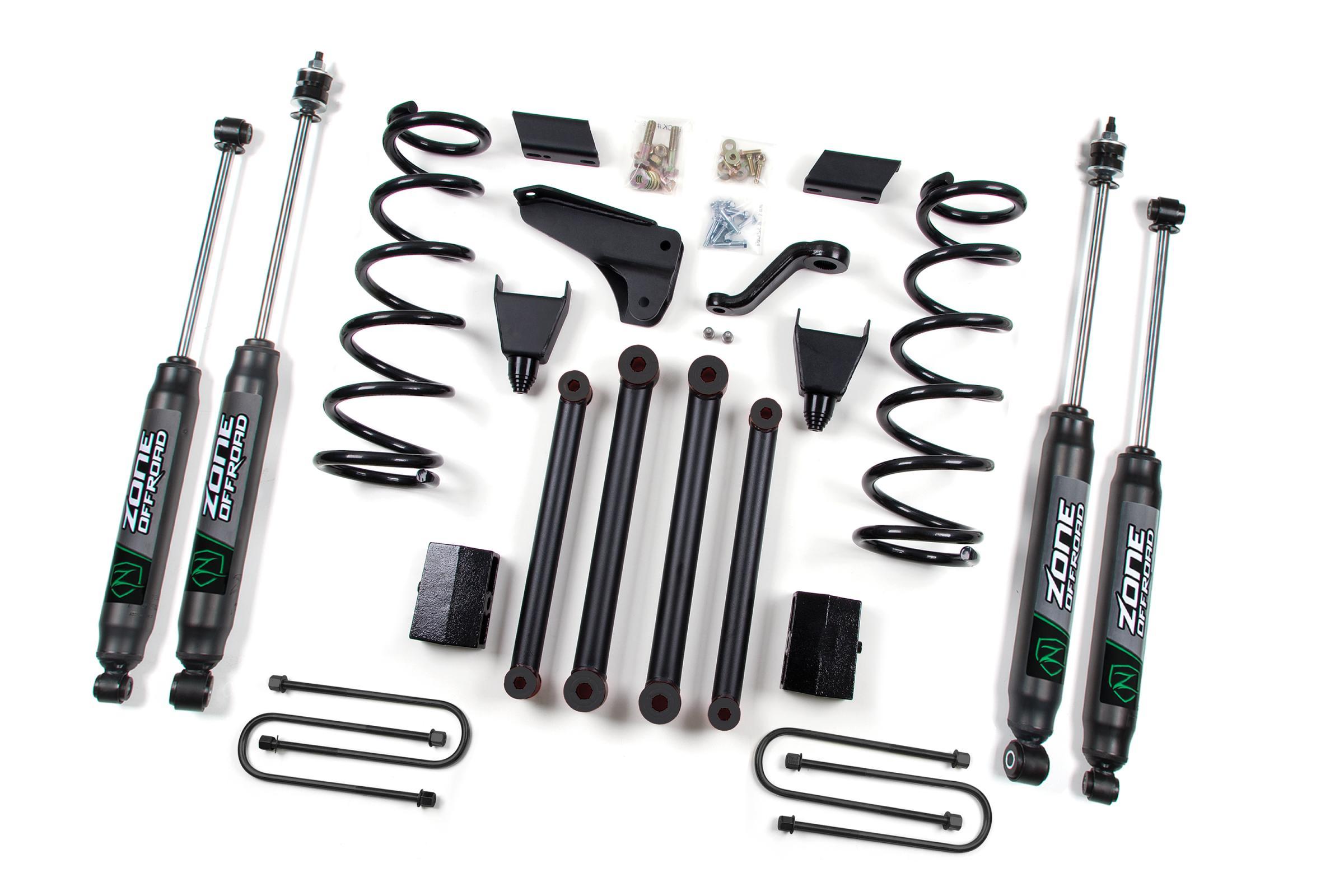

In The Box:
- All Necessary Mounting / Installation Hardware
- Bump Stop Extensions
- Coil Springs
- Control Arms
- Dropped Pitman Arm
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Track Bar Relocation Bracket
Features:
- 100 percent bolt-on design for easy installation.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
- Heavy-duty front track bar bracket correctly positions front axle under vehicle.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
Kit Components:
- ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
- ZON7761 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595774
- ZOND1409 Rear Box Kit 1 711745598065
- ZOND1504 10 Dodge Ram 2500/3500 5.0 Inch Box Kit 1 711745598157
- ZOND3501 Dodge Coil Kit 1 711745598591
- ZOND5301 Dodge PowerWagon Sway Bar Links 1 711745598683
