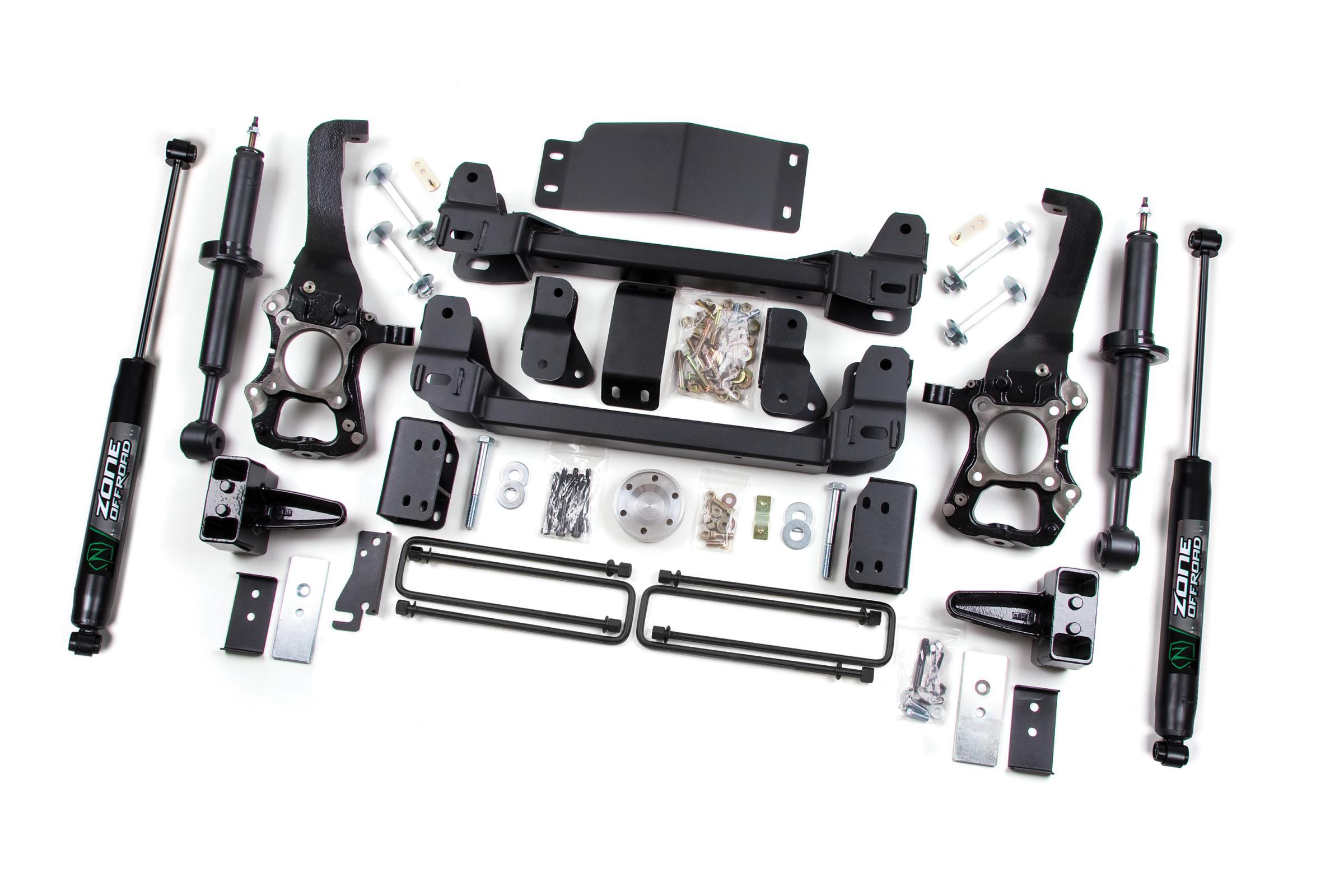

Zone Offroad 09-12 Ford F-150 6 Inch Lift Kit With Nitro Shocks - ZONF10N
Take your F150 to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear a block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 tires.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Knuckle & Strut Spacer
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 5 Inch
- Max Tire Size 37 x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 3 Inch x 12.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 3 37 x 12.5
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Differential Drop Brackets
- Driveshaft Spacer
- Rear Lift Block & U-Bolt Kit
- Skid Plate
- Zone Nitro Series Struts
Features:
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
- High-pressure, extended length, replacement front struts improve performance on and offroad.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Lift system does not change the front track width of the vehicle.
Kit Components:
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF2612 09-13 Ford F150 6 Inch Front Box Kit (3of4) 1 711745599574
- ZONF2613 09-13 Ford F150 6 Inch Front Box Kit (4of4) 1 711745599581
- ZONF2615 09-14 Ford F150 6 Inch Front Box Kit (1of4) 1 711745599604
- ZONF2616 09-14 Ford F150 6 Inch Front Box Kit (2of4) 1 711745599611
- ZONF2619 09-14 Ford F150 5.0 Inch Rear Block Kit 1 711745599628
- ZONF2690 09-12 Ford F150 Front Struts 1 711745599826
