Zone Offroad 08-10 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Gas Without Overload With Nitro Shocks - ZONF36N
When you go big you can go anywhere. This 6 Inch Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 3 Inch Inch tires.
Get the look and performance you want out of your 4WD 2008 - 2010 Ford F-250 / F-3 Inch.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 4 Inch
- Material Metal
- Front Lift Method Coil Springs & Replacement Radius Arms
- Rear Lift Method Dual Add-A-Leafs & Block Kit
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 4.5 Inch
- Max Tire Size 3 Inch x 12.5
- Wheel Size 2 18 x 9
- Back Spacing 2 4.5 Inch
- Max Tire Size 2 3 Inch x 12.5
- Wheel Size 3 Inch20 x 9
- Back Spacing 3 Inch4.5 Inch
- Max Tire Size 3 Inch3 Inch x 12.5
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No

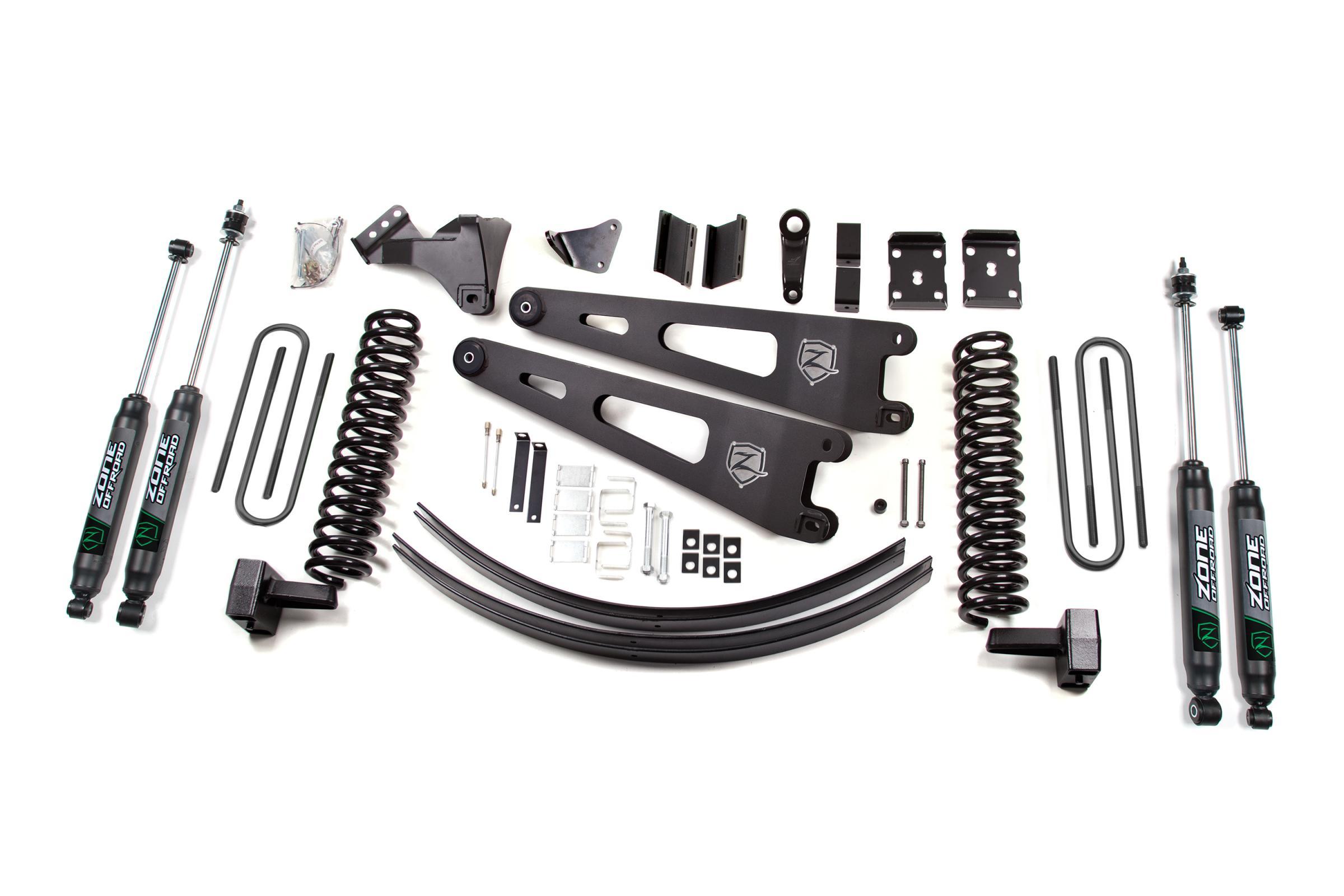

In The Box:
- Add-A-Leaf's
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Dropped Pitman Arm
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Radius Arms
Features:
- Brake line relocation brackets allow re-use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
- Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
- High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
- Sway bar relocation brackets maintain operating angle for reduced body roll.
Kit Components
- ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
- ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
- ZONF1309 08-12 Ford F250/350 4 Inch Rear 1 711745599116
- ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
- ZONF1603 08-10 Super Duty 6 Inch Box Kit 1 711745599314
- ZONF1623 2005-2024 Super Duty 6 Inch Gas Coil (one) 2 711745599406
- ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956
