Zone Offroad 07-21 Toyota Tundra 3.5 Inch Adventure Series Lift With Nitro Shocks - ZONT6N
Engineered to take advantage of your truck's factory suspension design, this system offers smooth on road ride quality while increasing wheel travel for when you hit the trails.
At the core of this system is a pair of Adventure Series upper control arms with a repositioned ball joint mount to provide improved suspension travel while eliminating the ball joint binding and premature wear.
The arms are constructed from 1/8 Inch steel with CNC-machined ball joint and bushing cups. MOOG ball joints come pre-installed and ready to handle off-road abuse. At the frame mount, the arms use factory-style rubber bushings for quiet, low maintenance operation.
A pair of top-mounted, steel strut spacers provide lift while retaining factory ride quality and speeding up installation time by not requiring strut disassembly. Factory bump stops are relocated, as is the sway bar.
Differential drop spacers and longer hardware keep the CV axle angles at a minimum while still allowing the use of the factory front driveline. In the rear, replacement shackles provide 1 Inch of lift to level the vehicle's stance.
Quick Specs:
- Front Lift Height 3.5 Inch
- Rear Lift Height 1 Inch - 2 Inch
- Material Steel Tube
- Front Lift Method Strut Spacers
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 6-6.25 Inch
- Max Tire Size 35/70
- Wheel Size 2 20 x 9
- Back Spacing 2 6-6.25 Inch
- Max Tire Size 2 295 / 60
- Finish Powdercoat
- Has Control Arm type Stamped Steel / Aluminium
- Accommodates Factory Wheels Yes
- Welding Required No

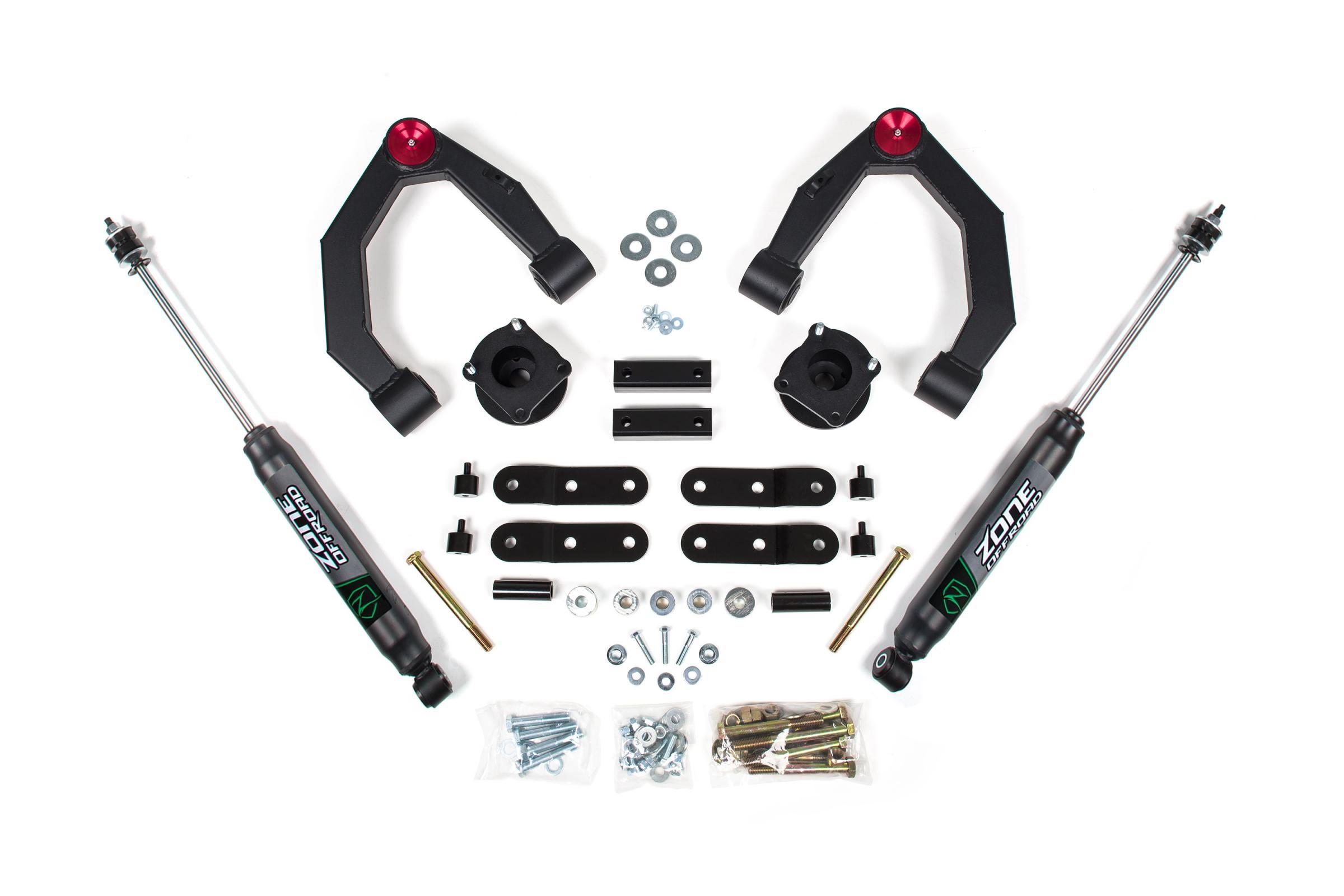

In The Box:
- Boomerang Shackles - Rear
- Control Arms
- Strut Spacer - Front
Features:
- Fully Welded, Heavy Duty Boxed Upper Control Arms That Dwarf The Factory Arms
- CNC-Machined UCA Bushing & Ball Joint Cups
- OE Style Rubber Bushings & Greasable Style Ball Joints For Quiet, Reliable, & Low Maintenance Operation.
- Improved UCA Range Of Motion Compared To Stock Arms
- UCAs Utilize Replaceable Ball Joints and Bushings
- Top Mounted Strut Spacer Retains Factory Ride Quality & Offers Easy Installation
- Differential Relocation to Correct CV Shaft Operating Angle
- Long Lasting Black Powdercoat Finish
- Limited Lifetime Warranty
Kit Components:
- ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
- ZONT2300 07-21 Toyota Tundra Adventure Series UCA Kit 1 711745601765
- ZONT2301 07-21 Toyota Tundra 3.5 Inch Box Kit 1 711745601772
