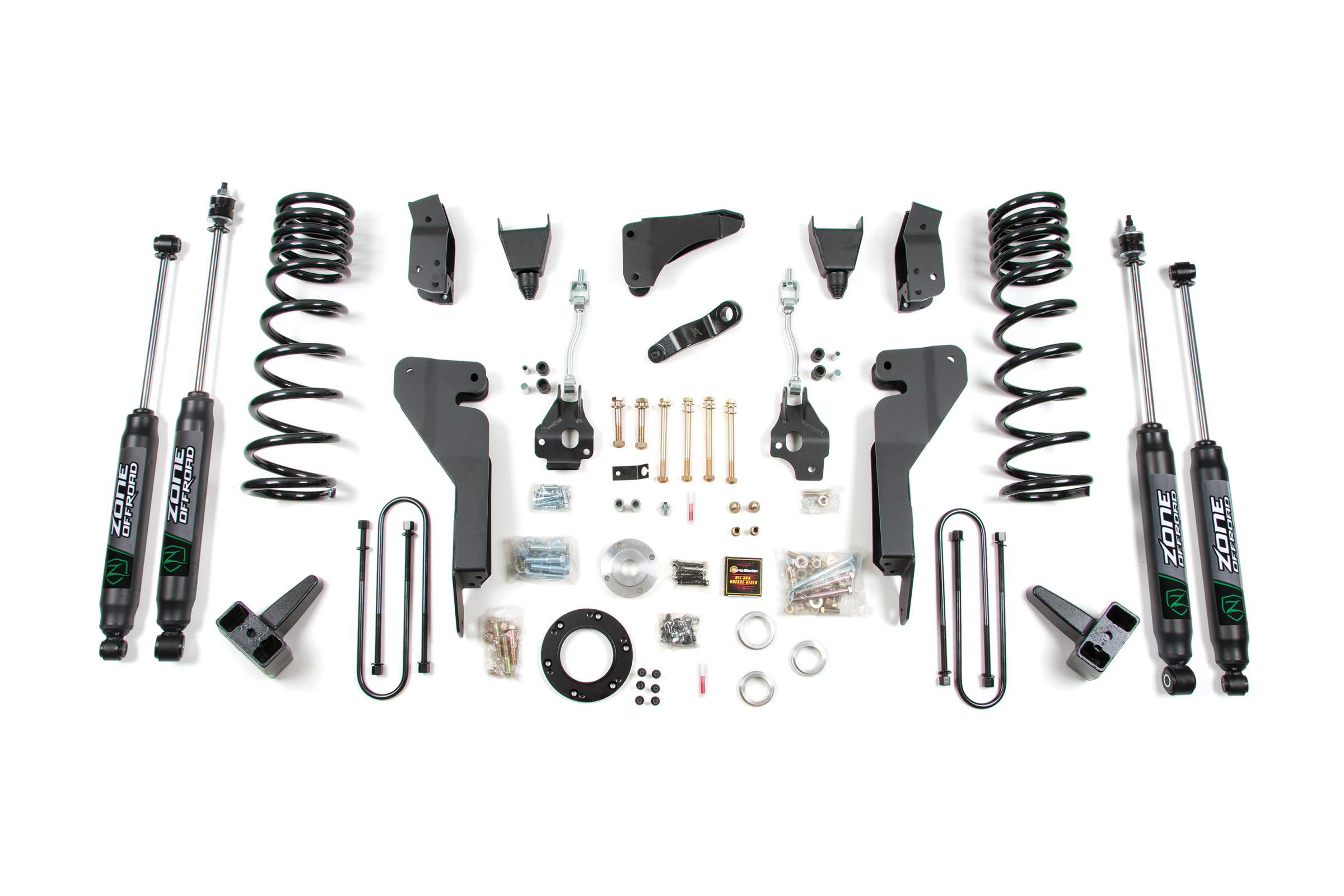

Zone Offroad 03-07 Dodge RAM 2500 8 Inch Lift Kit With 4 Inch Axle Diesel With Nitro Shocks - ZOND25N
Step up to our highest lift that will let you clear 38 Inch tires, but will still leave you in control. This coil spring and cast block 8 Inch lift Kit is the easy and affordable way to create the truck you've always wanted.
Fits Diesel 4WD 2003- 2007 Dodge / Ram 2500 / 3500 Trucks.
Quick Specs:
- Front Lift Height 8 Inch
- Rear Lift Height 5 Inch
- Front Lift Method Coil Springs
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 17 x 9
- Back Spacing 5 Inch
- Max Tire Size 38x13.5
- Wheel Size 2 18 x 9
- Back Spacing 2 5 Inch
- Max Tire Size 2 38x13.5
- Wheel Size 3 20 x 9
- Back Spacing 3.5 Inch
- Max Tire Size 38x13.5
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels See Notes
- Welding Required No
In The Box:
- All Necessary Mounting / Installation Hardware
- Brake Line Brackets
- Coil Springs
- Control Arm Relocation Brackets
- Dropped Pitman Arm
- Rear Lift Block & U-Bolt Kit
- Track Bar Relocation Bracket
- Transfer Case Indexing Ring
Features:
- 100 percent bolt-on design for easy installation.
- High-strength control arm relocation brackets correct suspension geometry and add rigidity.
Kit Components:
- ZON7751 Nitro- 29.43 x 17.24 x 2-3/8 S50/EB2 2 711745595682
- ZON7761 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595774
- ZOND1508 03-13 Ddge 2500 5.0 Inch Block Kit-4 Inch Axle 1 711745598188
- ZOND1801 03-13 Dodge 2500 Control Arm Mount Kit 1 711745598263
- ZOND1804 03-07 Dodge 2500 6/8 Front Box Kit 1 711745598294
- ZOND3801 03-13 Dodge 2500 8in Coils Diesel 1 711745598652
- ZOND5805 03-13 Dodge 2500 T-Case Indexing Kit 1 711745598799
