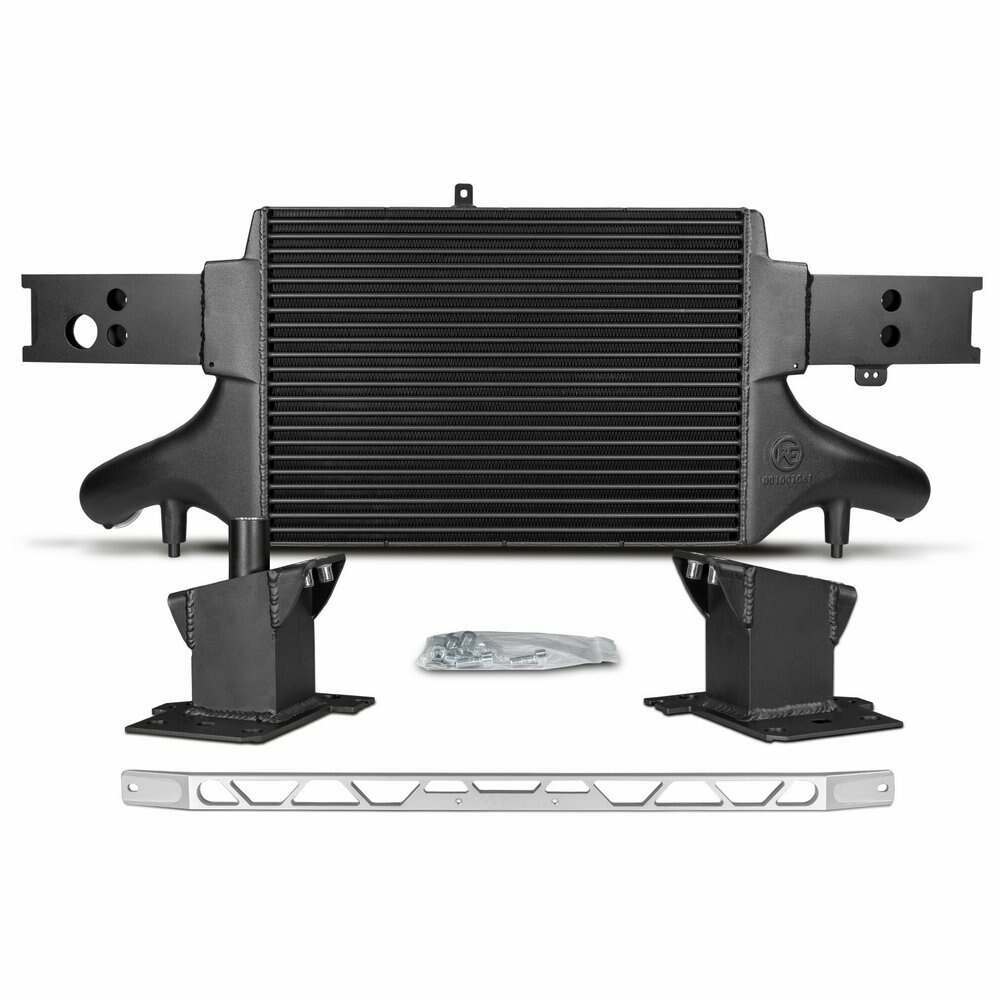

Wagner Tuning Competition Intercooler EVO3 Audi RS3 8V - 200001081.ACC.S
COMPETITION INTERCOOLER EVO 3 AUDI RS3 8V now available with TÜV certificate and two different intercooler core options
Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+
Important note:We recommend to use the standard version for power applications up to 600HP and the X-version for power application above 600HP.
The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16,5L/14,45Inch x 3,74Inch = 1006,9Inch³) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit and weighs only 14,3 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm (2,67Inch) in- and outlets.
OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)
WT EVO 3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)
Comment:
recalibration of the ACC maybe necessary
kit comes with:
1 intercooler including crossmember
1 mounting material
1 installation instruction
1 TÜV Certification
