VMP 2.3 L TVS Supercharger Level 2 Kit '15-'17 Mustang 5.0 L
Limited availability! We have sourced overstock of our old castings and are building them into complete blowers. We are currently shipping Gen2R head units until they run out. The Gen2R was the last version of VMP's 2.3 L TVS superchargers. Loved by many for that instant torque hit. Expect 600-650rwhp depending on supporting mods.
Features
Rated at 750 HP and 600 Ft/Lb TQ*
Warrantied components
Complete kit with custom tuning
Easy to install at home in 8-12 hours by following our videos
Maintains stock-like driveability
Expandability - room to grow when you want to upgrade
Start with a 3.2 inch pulley (previously called an 85mm) for mild combinations on pump gas, and pulley-down as your appetite for horsepower grows. As pulley size goes down, power and boost go up exponentially. When you max out the stock 6-rib belt, upgrade to one of our 8 or 10 rib overdrive setups. VMP’s kits are fully upgradeable with larger throttle bodies and smaller pulleys for when you install supporting mods and want even more power.
The 15-17 Gen 2 coyote motor is a formidable engine, holding up to 650-800rwhp with ease. The key is good fuel quality and not over-doing it with too much boost and too little octane. We recommend a 3.2 inch pulley for 91 and 93 octane, for boostane or E85 you may go down to a 2.7 inch pulley.
VMP TVS supercharger kit includes:

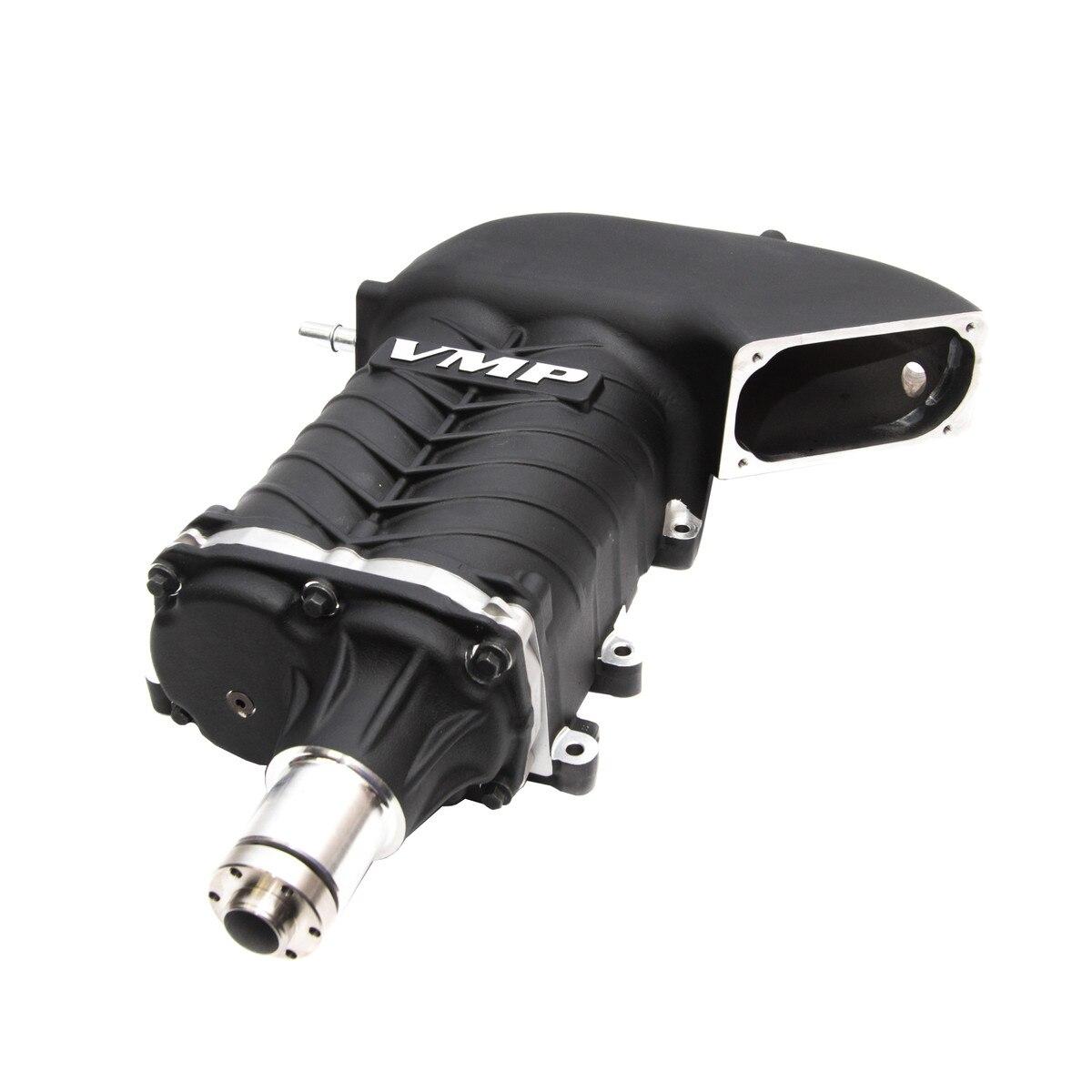

VMP 2.3 L TVS supercharger head-unit
3.2 inch supercharger pulley for 10psi

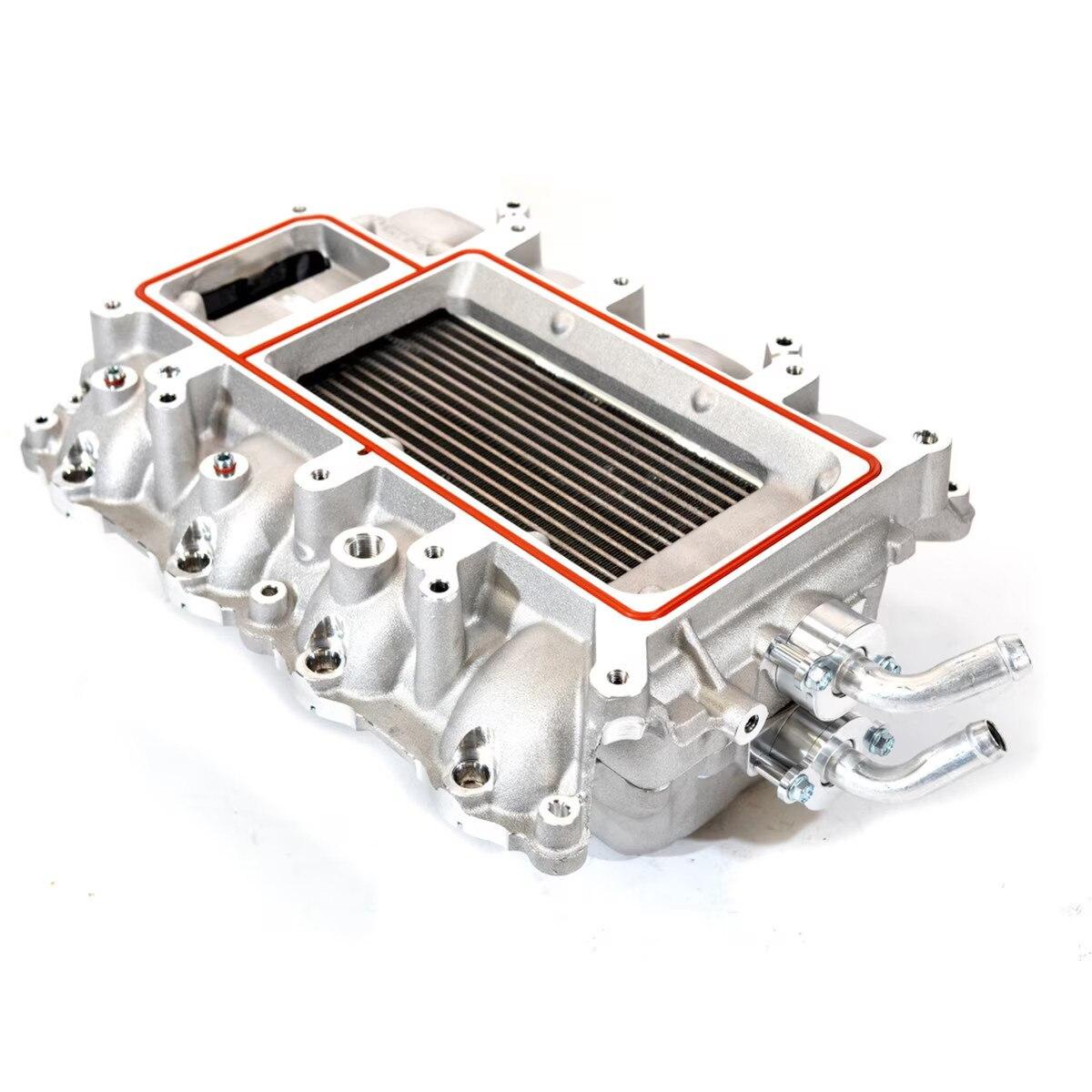

Cast aluminum supercharger lower intake manifold with integrated CAC (charge air cooler / intercooler)
VMP Twinjet 67 MM throttle body

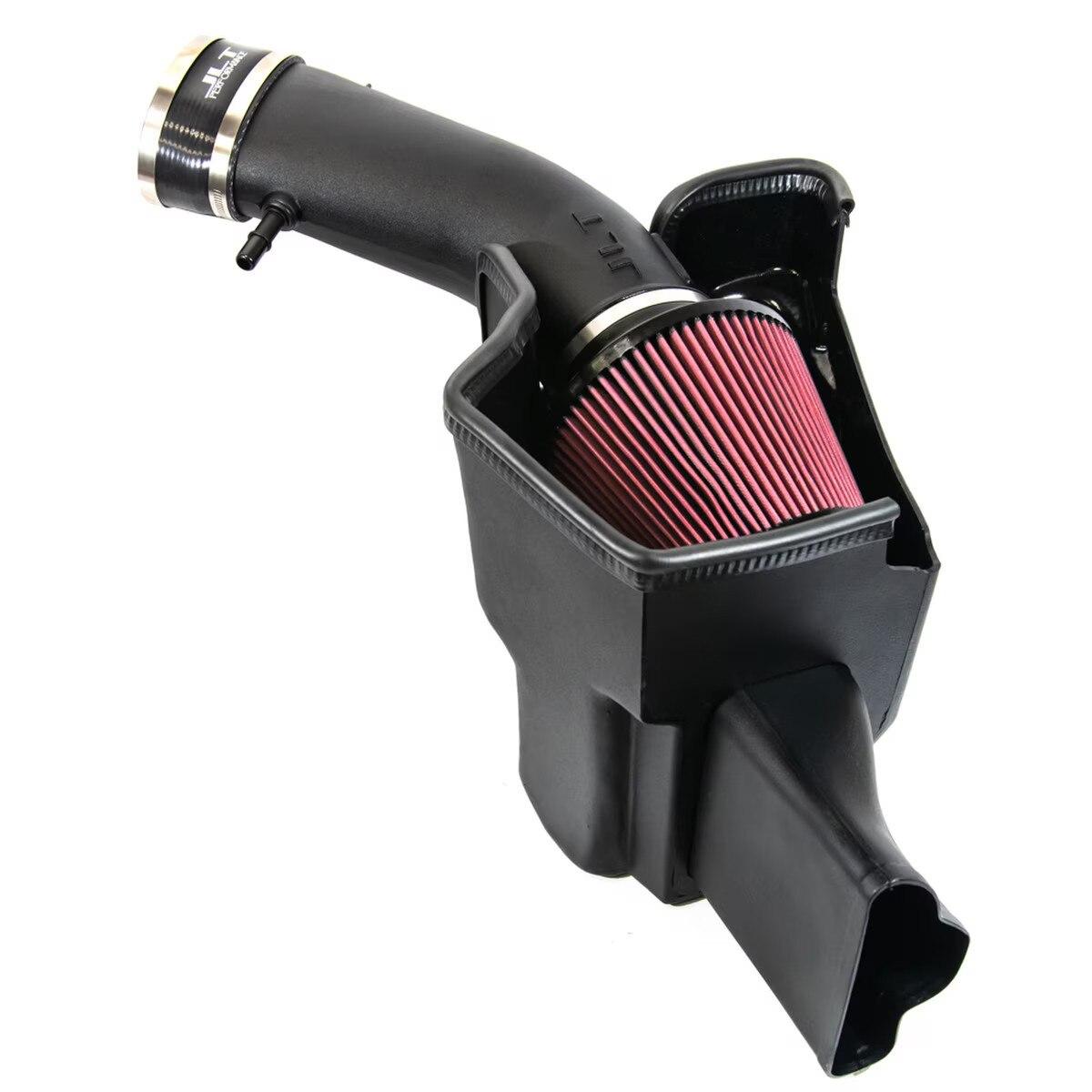

125 MM JLT air intake
VMP billet aluminum fuel rails #8
56 lb fuel injectors
VMP Plug and Play fuel pump booster

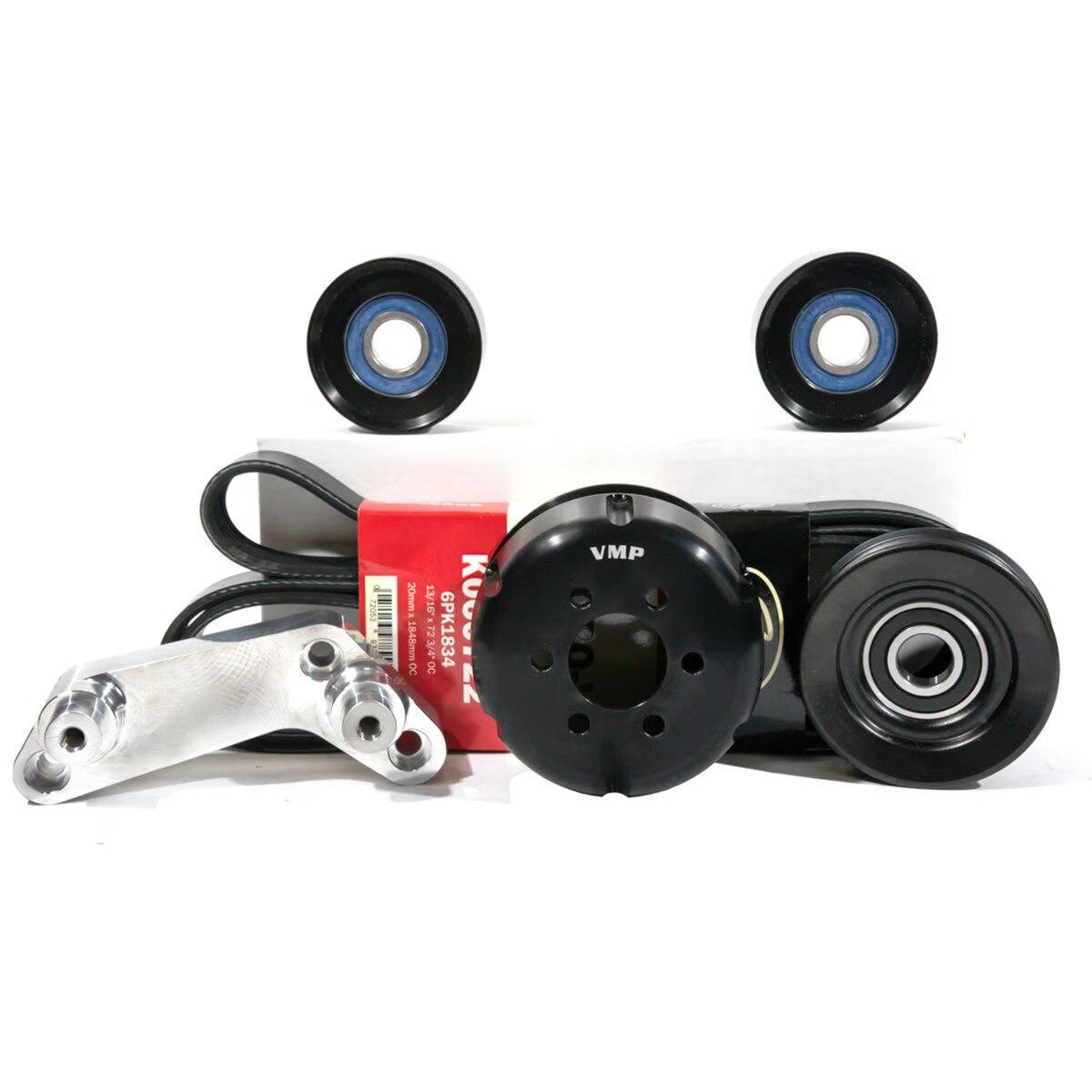

VMP No-Grind FEAD system with belt, all idlers, tensioner, and bracketry

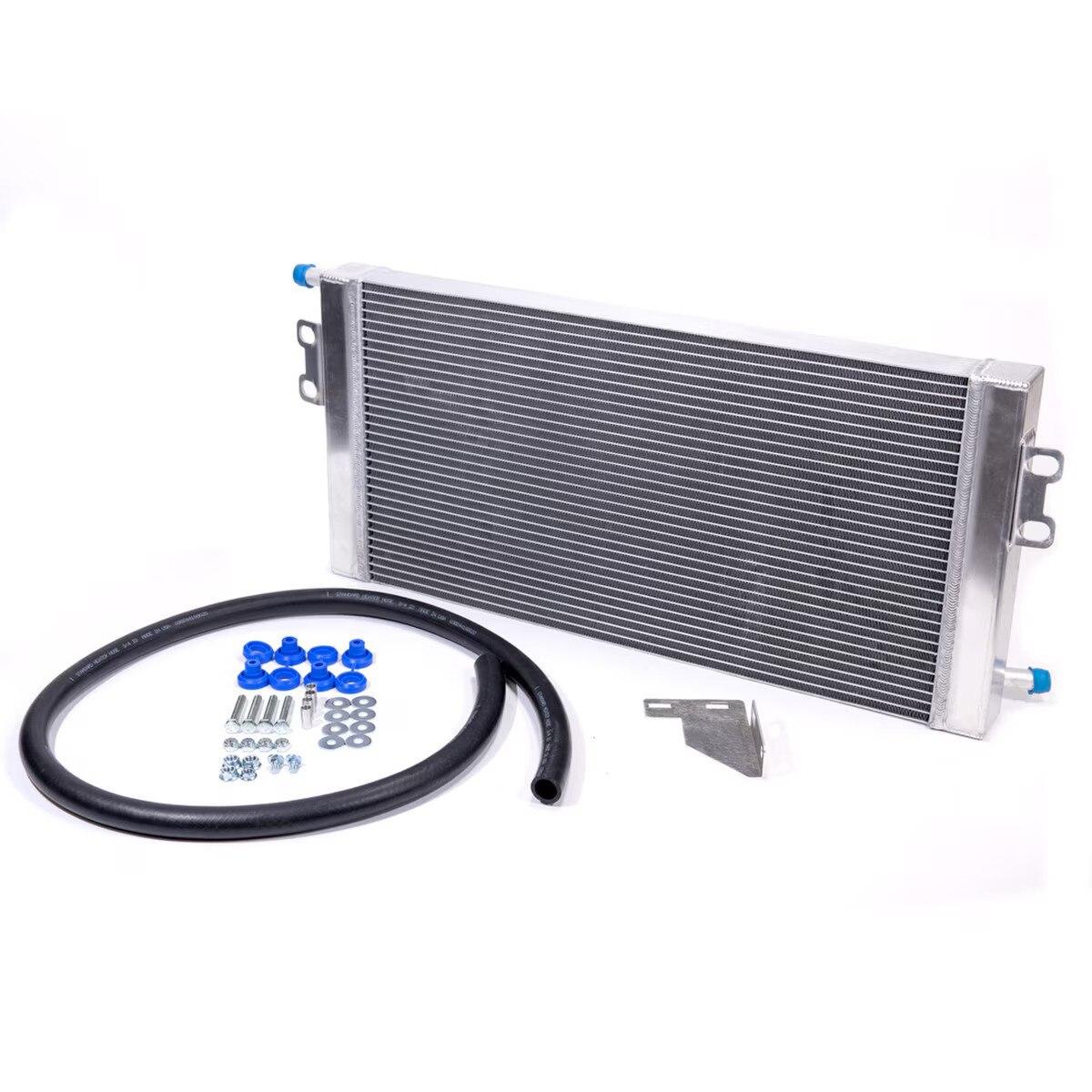

VMP heat exchanger / low-temp radiator
High flow Bosch brushless intercooler pump with lines and reservoir for supercharger low-temp cooling system
VMP plug and play wiring harness set
All required fasteners, wiring, brackets, hoses and clamps you need to supercharge
(1) VMP Tune for 91-93 Octane via SCT X4 Tuning Device (sold separately)
Please refer to the "VMP Supercharger Kit Tuning Support" section below for more information
Even though these kits use older 2.3 TVS head units they have the latest VMP intercooler core and high flow Bosch pump.
Recommended parts:
We recommend NGK TR7ix plugs for supercharged coyotes
