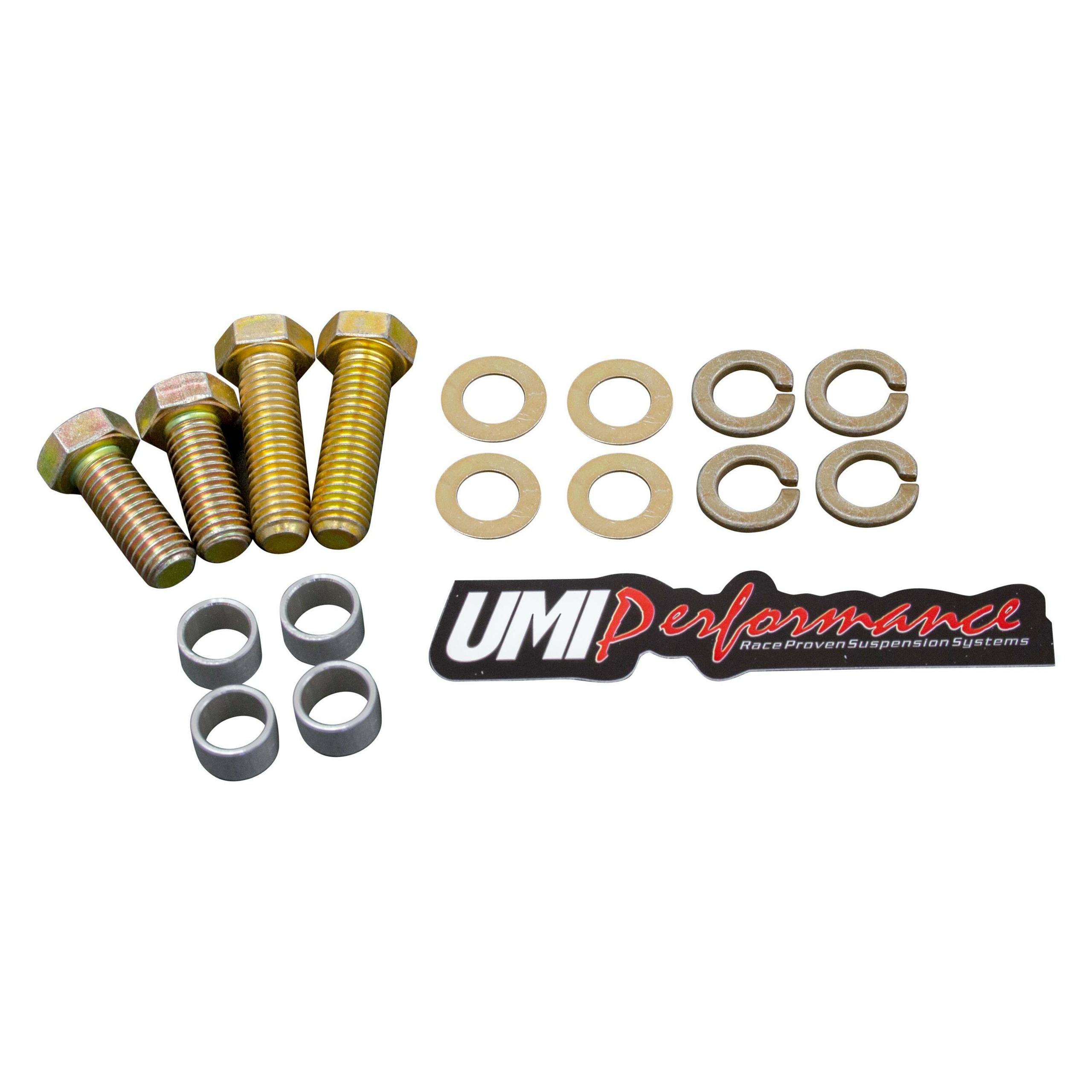

UMI Performance 1982-2002 GM F-Body Rear Torque Arm Hardware Kit, Moser 12-Bolt - 2998
This kit is highly recommended when installing an aftermarket torque arm to the Moser 12-bolt rear end. The Moser 12-Bolt rear end is supplied with four ½” mounting holes while most aftermarket torque arms are built with 5/8” mounting holes. The reduced thread connection from the thicker torque arm mount and slop found in the mounting holes can cause torque arm damage and bolts to loosen. This kit adapts UMI’s torque arm bracket to the Moser 12-bolt differential housing. By using carefully selected bolt lengths and specially designed spacers, excess play is minimized and strength and reliability are maximized. This kit will also fit other aftermarket brackets which use 5/8” diameter mounting holes and 3/8” bracket thickness. The P/N 2998 kit is the finishing touch to ensure a bulletproof system. This product is designed and manufactured with pride in Philipsburg, PA-USA.
UMI Performance bump steer kits relocate the outer tie rod pivot point which results in decreased toe change during wheel travel. Standard kits include sleeves, rod ends, jam nuts and high quality, direct fit tapered studs. Race kits require drilling of the spindle and include heavy duty 5/8 bolts. Race kits are recommended for autocross and road race applications while standard kits are indicated for street/strip use.
