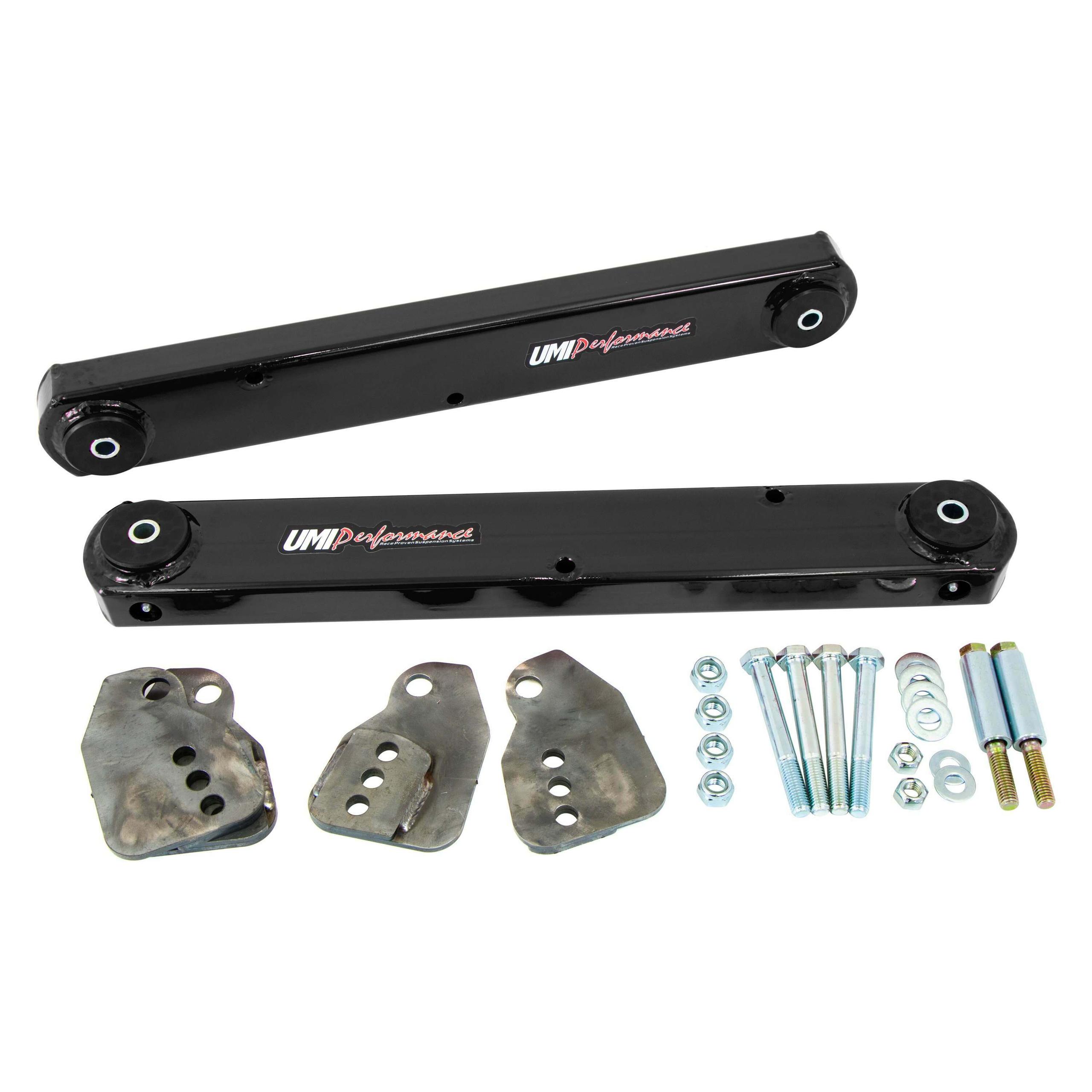

UMI Performance 1978-1987 GM G-Body Rear Lift Bar Set-Up - 3020-B
The UMI Performance lift bars replace your stock rear control arms adding tremendous track gains while not effecting ride height and keeping ride quality at its best. Lift bars are designed to work with axle torque to load the chassis of the car, forcing the rear wheels downward while pushing the tires into the ground for harder launches and improved 60-foot times. These bars are designed to greatly improve traction and reduce unwanted wheel hop. Constructed of boxed mild steel tubing, 0.120" wall and 0.188" thick mounting plates-completely CNC machined for exact tolerances and a superb fit. Lift bars feature grease-able Energy Suspension bushings that reduce bushing deflection but still make these arms a 100% street-able. Each lift bar features the correct provisions for adding a stock or aftermarket sway bar, sway bar holes are placed in the correct pattern to maintain the sway bar level with the rear end. All sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. The rear mounting brackets feature two settings that allow the lift bar to be lowered 2" or 3" depending on user preference and the vehicles suspension set-up. Lift bars also correct lost geometry and correct instant center on a lowered vehicle. Add a set of our adjustable upper control arms for the maximal rear suspension set-up!
Installation: This kit can be either bolted or welded into place. All hardware and detailed installation instructions are included, hardware kit also includes (4) new metric grade 10.9 control arm bolts with nylon lock nuts. If bolting into place some drilling is required with this kit. Some hardware included not shown.
Features:
- Built using 0.120" Wall Thickness Rectangular Mild Steel Tubing
- CNC Machined for Precision Tolerances and Accuracy
- MIG Welded DOM Steel Bushing Holders
- Grease-able Energy Suspension Bushings with Grease Fittings
- Durable Long Lasting Powder Coat finish
UMI Performance bump steer kits relocate the outer tie rod pivot point which results in decreased toe change during wheel travel. Standard kits include sleeves, rod ends, jam nuts and high quality, direct fit tapered studs. Race kits require drilling of the spindle and include heavy duty 5/8 bolts. Race kits are recommended for autocross and road race applications while standard kits are indicated for street/strip use.
