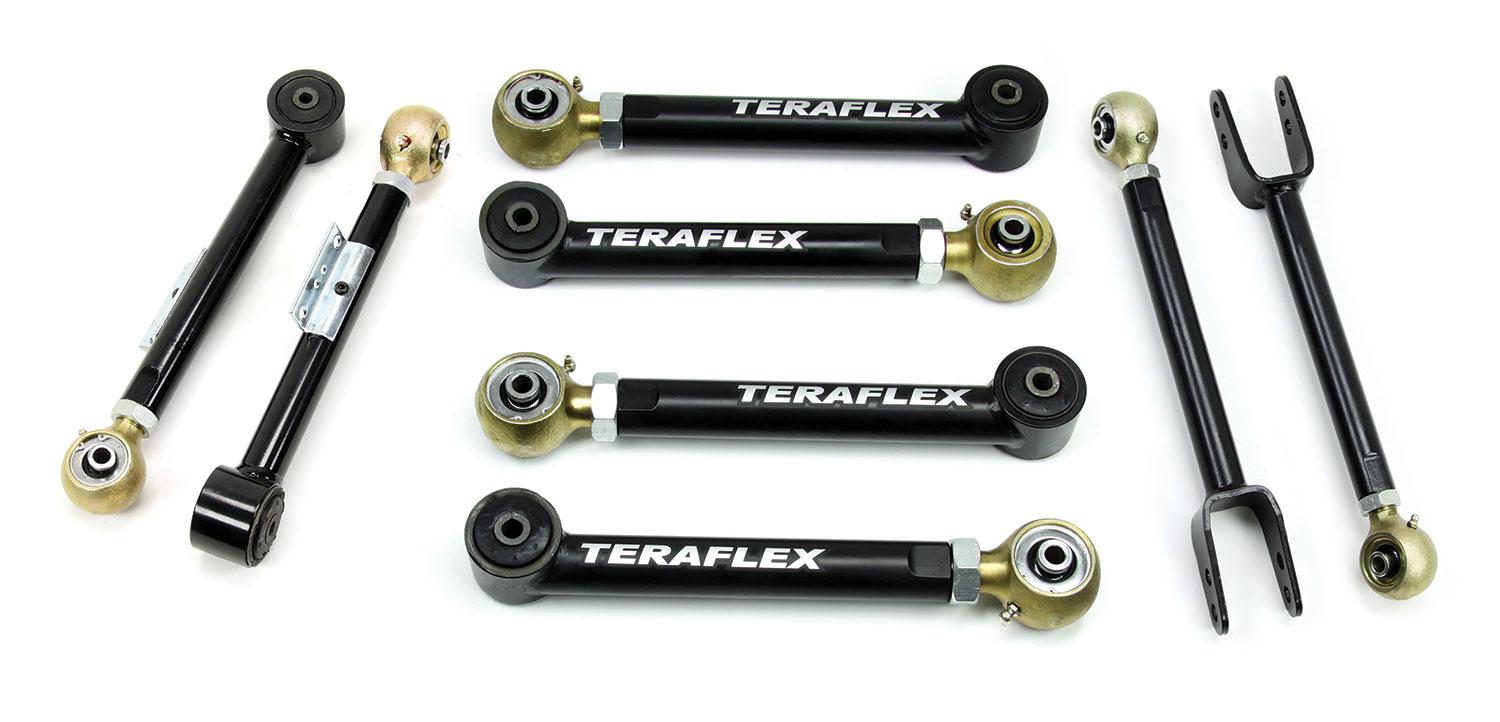

Teraflex TJ / ZJ Short Control Arm Kit 8-Arm 0-4 Inch Lift - 1615000
TeraFlex TJ / ZJ: Short Control Arms provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited and ZJ Grand Cherokee models with 0-4 Inch Lifts. Bolts to the factory control arm mounting brackets.
- Rebuildable joints for easy maintenance.
- Can be added to any existing suspension lift.
Includes:
- Short Control Arm Pairs:
- Arm Pair - Front Upper (# 1613800)
- Arm Pair - Lower (Front or Rear) (# 1615700) x 2
- Arm Pair - Rear Upper (# 1614800)
Fitment Vehicle(s):
- TJ Wrangler (short wheelbase)
- LJ Wrangler Unlimited (long wheelbase)
- ZJ Grand Cherokee
Specs:
Control Arm Specs:
TJ / ZJ / XJ / MJ: Short Control Arm Pair - Front Upper (# 1613800):
- Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
- Factory Length: 15-1/8 Inch
- Min. Length: 14-13/16 Inch
- Max. Length: 17-3/16 Inch
- Both - Bolts: 7/16 Inch (12mm)
- Joint - Axle: NA
- Joint - Frame: 4116230
TJ / ZJ / XJ / MJ: Short Control Arm Pair - Lower (Front or Rear) (# 1615700) x 2:
- Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
- Factory Length: 15-3/4 Inch
- Min. Length: 14-15/16 Inch
- Max. Length: 17-5/16 Inch
- Both - Bolts: 9/16 Inch (14mm)
- Joint - Axle: 4116260
- Bushing - Frame: 4915161
TJ / ZJ: Short Control Arm Pair - Rear Upper (# 1614800)
- Tube Diameter & Wall: 1.25 Inch x 0.25 Inch
- Factory Length: 13-1/4 Inch
- Min. Length: 13 Inch
- Max. Length: 14-3/8 Inch
- Both - Bolts: 7/16 Inch (12mm)
- Joint - Axle: NA
- Joint - Frame: 4116230
