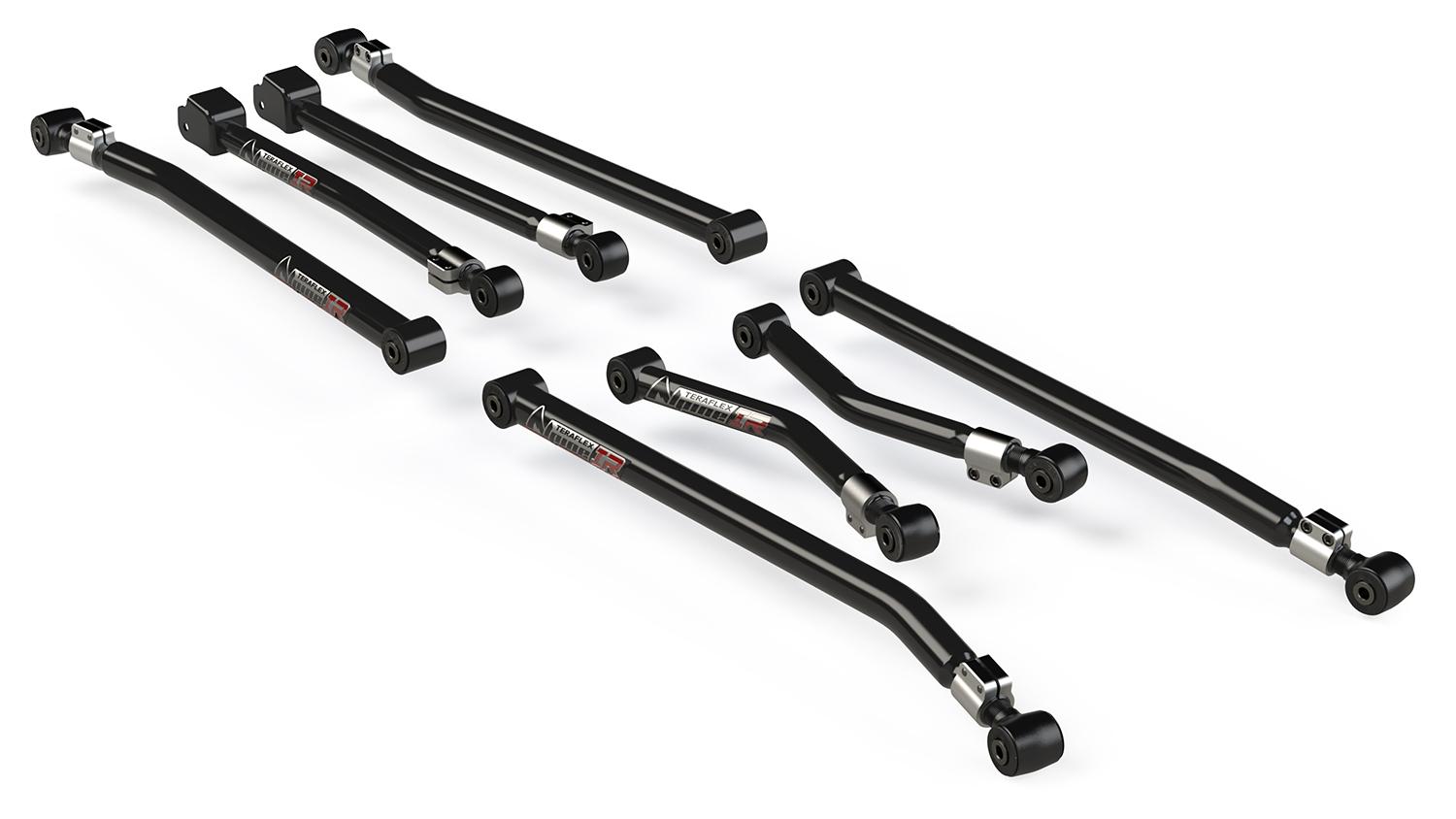

Teraflex 07-18 Wrangler JK Alpine IR Long Arm Kit 8-Arm 3-6 Inch Lift - 1415612
TeraFlex JK: Alpine IR Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance.
MUST be used with Long Arm Bracket Kit (# 1957000) - Not Included. Can be added to any existing suspension lift.
Includes:
- Alpine IR Long Arm Pairs:
- Arm Pair - Front Upper (# 1315570)
- Arm Pair - Front Lower (# 1315580)
- Arm Pair - Rear Upper (# 1315590)
- Arm Pair - Rear Lower (# 1315600)
Fitment:
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
Specs:
Control Arm Specs:
- JK: Alpine IR Long Arm Pair - Front Upper (# 1315570):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 18-3/4 Inch
- Min. Length: 27-3/8 Inch
- Max. Length: 28-7/8 Inch
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- IR Bushing - Axle: OEM
- IR Bushing - Frame: 611019
- JK: Alpine IR Long Arm Pair - Front Lower (# 1315580):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 22-5/8 Inch
- Min. Length: 33-3/4 Inch
- Max. Length: 35-1/4 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611015
- JK: Alpine IR Long Arm Pair - Rear Upper (# 1315590):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17-7/16 Inch
- Min. Length: 20 Inch
- Max. Length: 21-1/2 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611016
- JK: Alpine IR Long Arm Pair - Rear Lower (# 1315600):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min. Length: 35-3/4 Inch
- Max. Length: 37-1/4 Inch
- Bolt - Both: 14mm
- IR Bushing - Both: 611015
