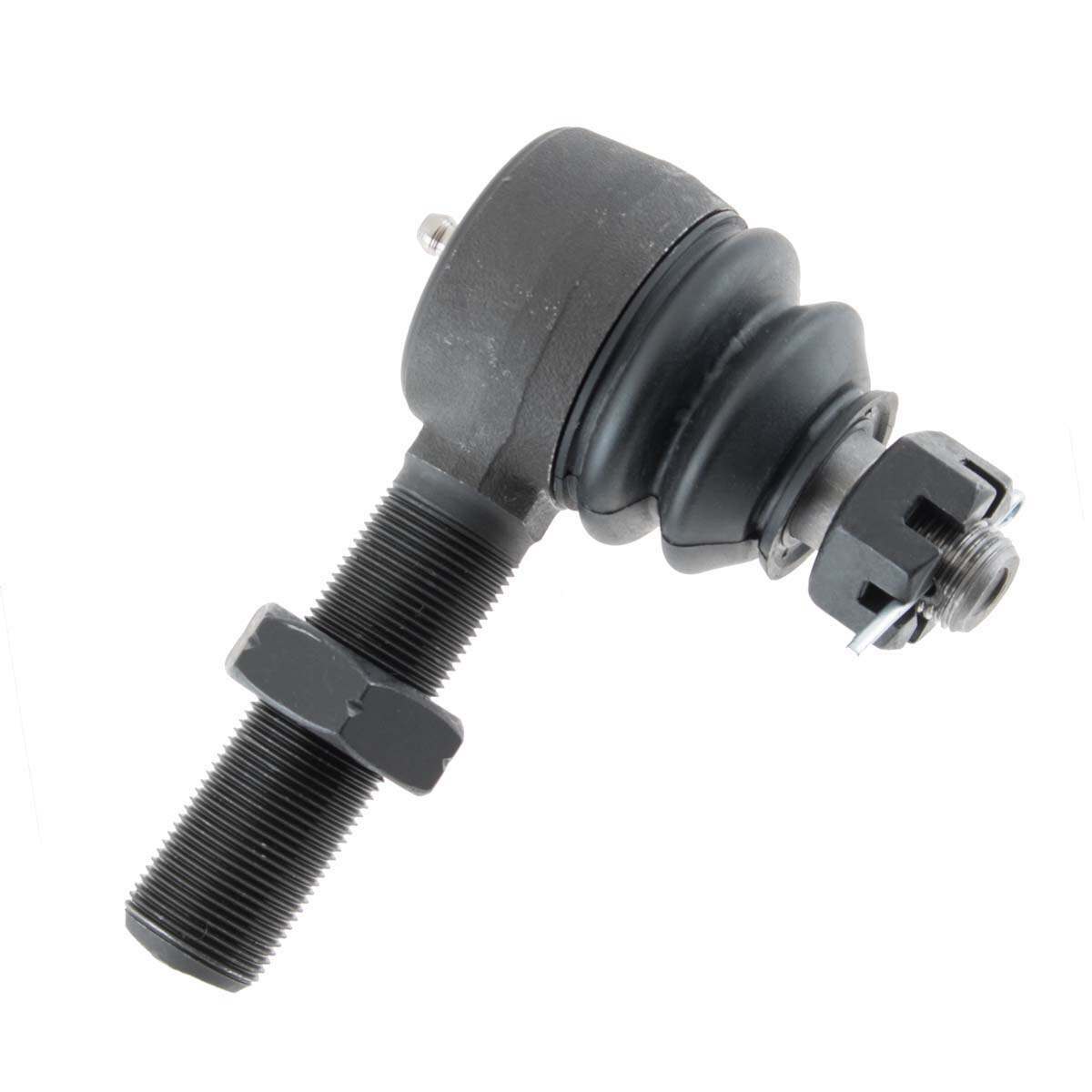

Synergy MFG Dodge Ram HD Single Plane Tie Rod End Metal On Metal 1-14 LH Synergy MFG (1994-2019 Ram 3500, Ram 1500, Ram 2500, 1500, 3500, 2500) - 4160-L
Synergy Dodge Ram HD Single Plane Metal-on-Metal Tie Rod End 1-14 LH
Details:
- Synergy Dodge Ram Heavy Duty Metal-on-Metal Tie Rod Ends
- Fully greasable sintered metal on metal bushing design has high wear resistance
- Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
- Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
- Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
- Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
- Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
- Boots are made from tear/wear resistant black NBR and come with retaining springs. (4133-L, 4136-L, 4138-L, and 4160-L only. 4134-L does not include a dust boot. 4134-L low misalignment boot available separately, 4134-02)
- Includes all necessary hardware for installation
- 1-14 UNF LH Thread
- Synergy High Performance Grease (4119) is the recommended grease for this product
- Fits: 94-current Dodge Ram trucks with Synergy 8525 or 8725 Steering
- Sold Individually
