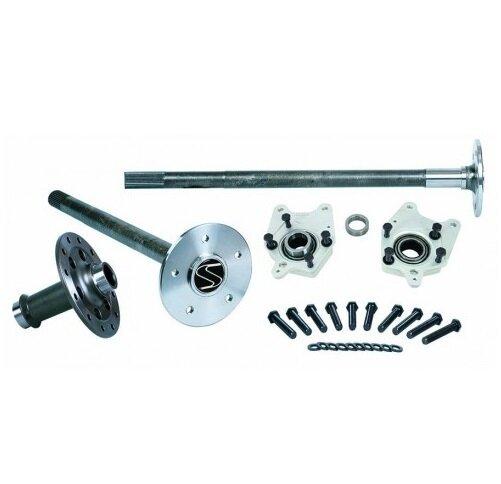

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the materials torsional strength
• Finish machined after heat treat to ensure accuracy
• Upgraded to 35 spline axles
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts
1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers
* Measured from underneath the hex of the stud
Lightweight Steel Spool – D1567
• Forged from premium 4140 steel
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering
Notes For ABS
This kit will not work with factory reluctor rings – Custom rings sold below
Read instructions carefully beforehand as assembly order is crucial
