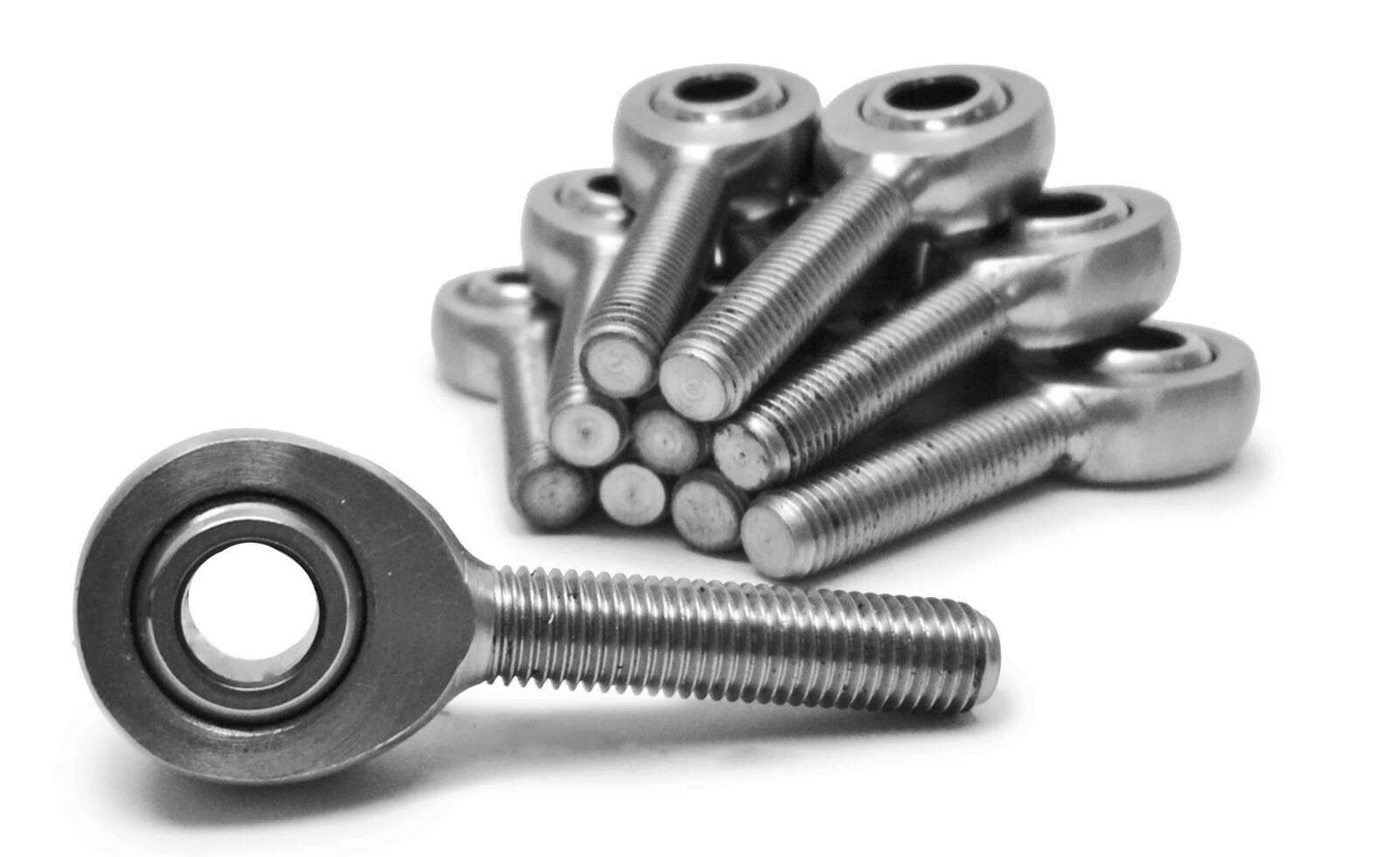

Steinjager Steinjäger Metric Male Rod Ends Steel Housing, PTFE Race M5 x 0.80 LH 10 Pack - J0015085
Quantity Per Package: This Package Includes 10 Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: Male M5 X 0.80 Lh X 20Mm
Ball Id: 5Mm
Housing Material: Steel
Finish: Zinc Clear
Ball Finish: Hard Chrome Plated
Bearing Race: Ptfe
Housing Width: 18Mm
Base Of Rod End To Center Of Ball: 33Mm
Ball Thickness: 8Mm
Ultimate Static Load Rating: 957 Lbs
Common Other Names For This Product: Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Wtf-M Thread Bungs, Mhtconnecting Tubes, Female Spherical Rod Ends, Jam Nuts, And Bolts.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Asmm (Steel Raced) Series, Our Dxtm (Nylon) Series, Dstm (Stainless) Series, Or Dpm (Bronze Zerked) Series.
Inch Alternative: The Inch Equivalent To This Series Is Our Mtm Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
