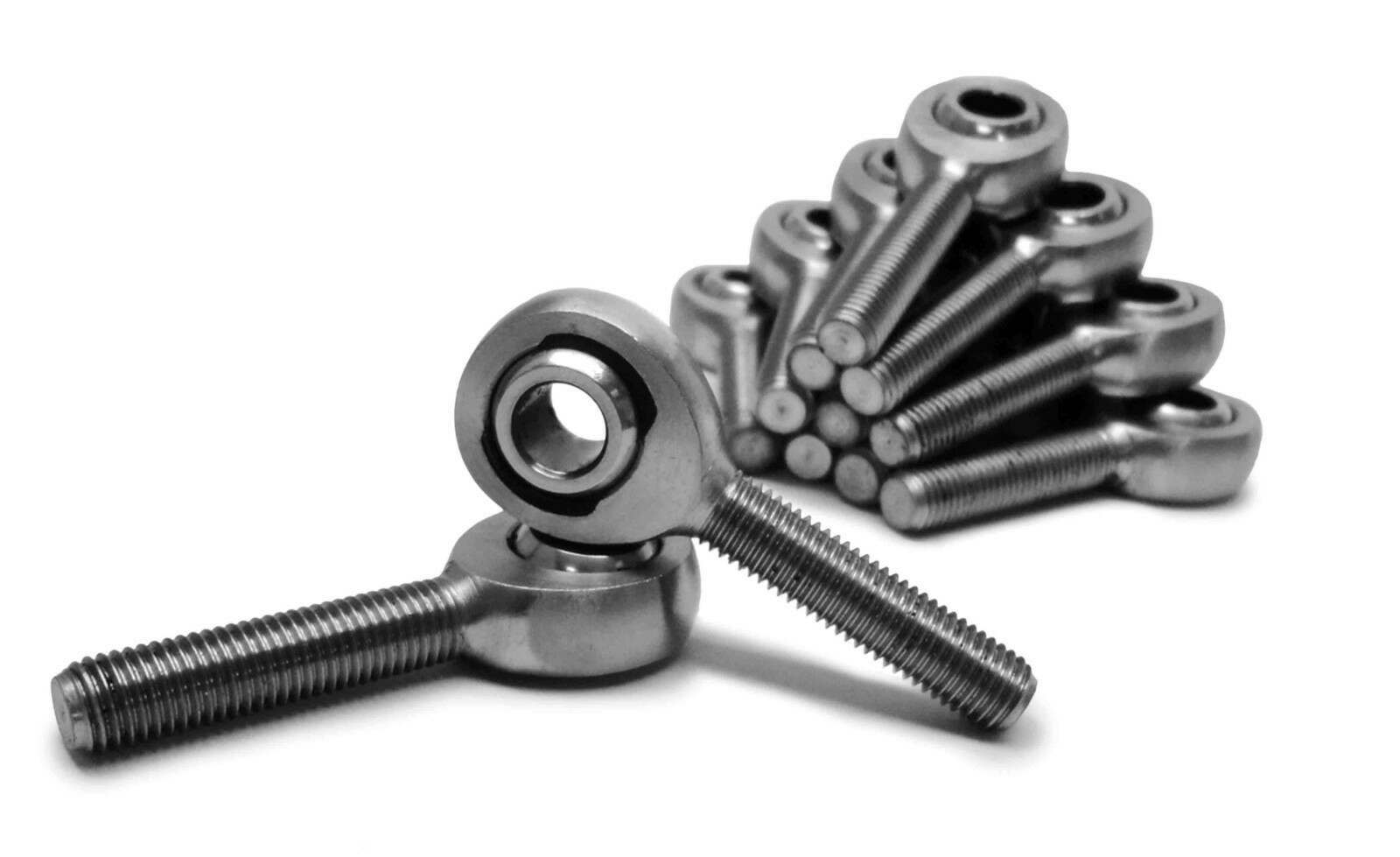

Steinjager Steinjäger Metric Male Rod Ends Chrome Moly Housing, Nylon Race M20 x 1.50 RH 12 Pack - J0015078
Quantity Per Package: This Package Includes 12 Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: Male M20-1.50 Rh X 41Mm
Ball Id: 20Mm
Housing Material: 4130 Heat Treated Chrome Moly Steel
Finish: Bright Chrome Plated
Ball Finish: Hard Chrome Plated
Bearing Race: Slotted Nylon
Housing Width: 50Mm
Base Of Rod End To Center Of Ball: 78Mm
Ball Thickness: 25Mm
Ultimate Static Load Rating: This Rod End Has A Very High Rating. We Pull It To 40,000 Lbs, But It Is Much Stronger Than That.
Common Other Names For This Product: Chromoly Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Wtf-M Thread Bungs, Mhtconnecting Tubes, Female Spherical Rod Ends, Jam Nuts, And Bolts.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Asmm (Steel Raced) Series, Our Dwtm (Telfon Raced) Series, Dstm (Stainless) Series, Or Dpm (Bronze Zerked) Series.
Nch Alternative: The Inch Equivalent To This Series Is Our Mxm Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
