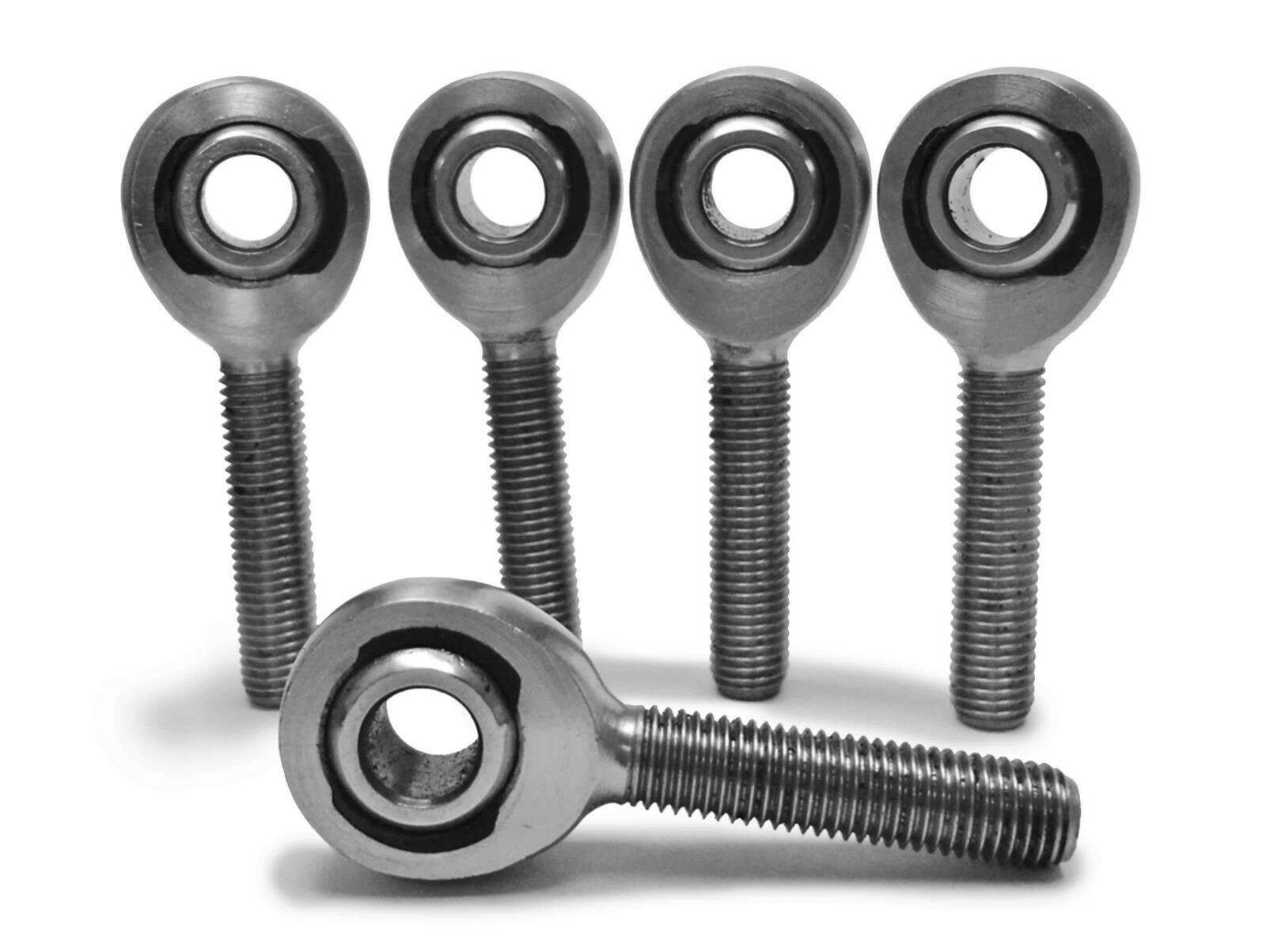

Steinjager Steinjäger Metric Male Rod Ends Chrome Moly Housing, Nylon Race M12 x 1.75 RH 5 Pack - J0015034
Quantity Per Package: This Package Includes Five Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: Male M12-1.75 Rh X 33Mm
Ball Id: 12Mm
Housing Material: 4130 Heat Treated Chrome Moly Steel
Finish: Bright Chrome Plated
Ball Finish: Hard Chrome Plated
Bearing Race: Slotted Nylon
Housing Width: 32Mm
Base Of Rod End To Center Of Ball: 54Mm
Ball Thickness: 16Mm
Ultimate Static Load Rating: 14,580 Lbs
Common Other Names For This Product: Chromoly Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Wtf-M Thread Bungs, Mhtconnecting Tubes, Female Spherical Rod Ends, Jam Nuts, And Bolts.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Asmm (Steel Raced) Series, Our Dwtm (Telfon Raced) Series, Dstm (Stainless) Series, Or Dpm (Bronze Zerked) Series.
Inch Alternative: The Inch Equivalent To This Series Is Our Mxm Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
