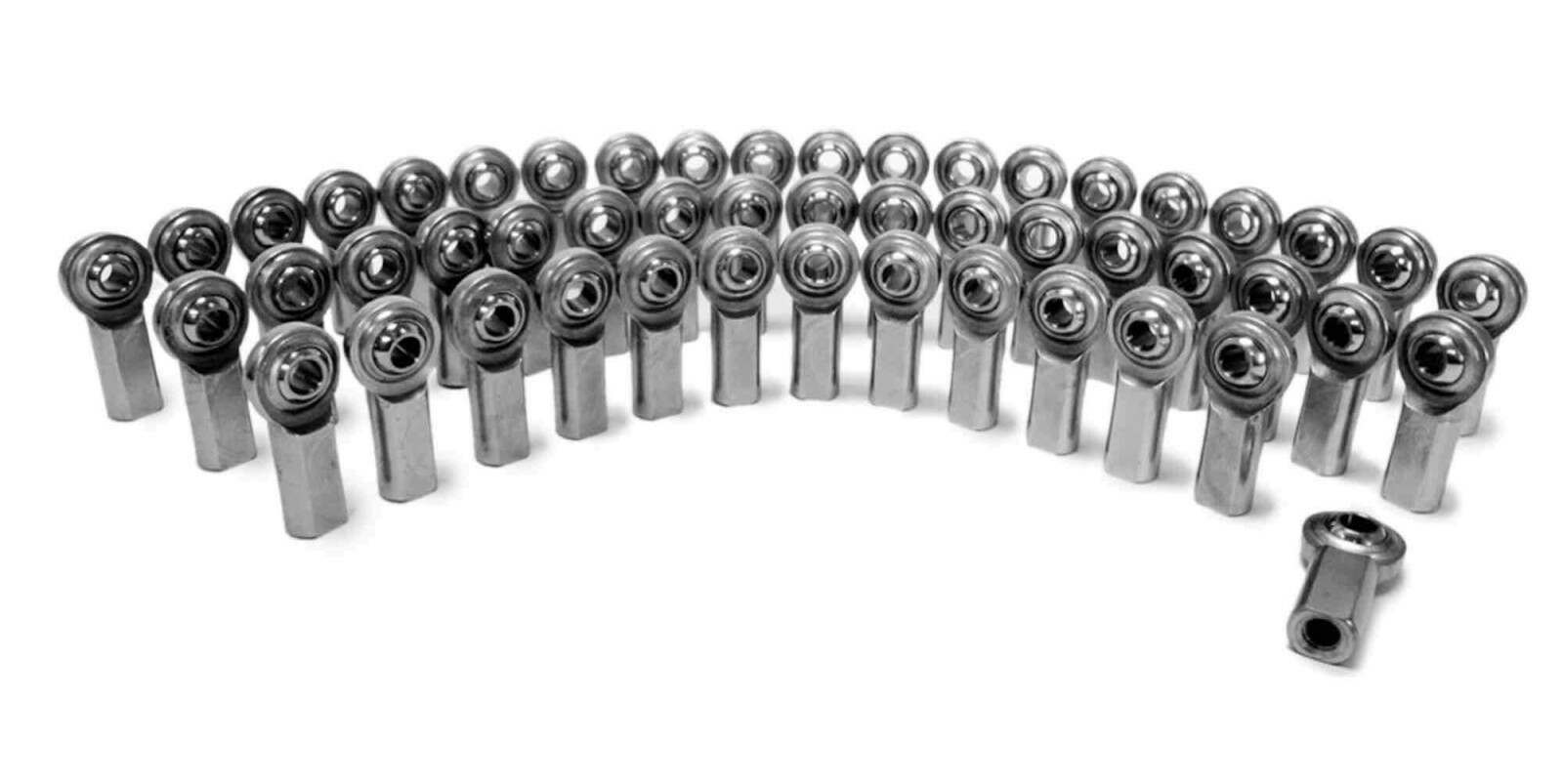

Steinjager Steinjäger Metric Female Rod Ends Stainless 304 Housing, PTFE Race M10 x 1.50 RH 50 Pack - J0015002
Quantity Per Package: This Package Includes 50 Spherical Rod Ends
Product Name: Female Spherical Rod End
Thread: Female M10 X 1.50 Rh X 20Mm
Ball Id: 10Mm
Housing Material: Stainless Steel
Finish: Zinc Clear
Ball Finish: Hard Chrome Plated
Bearing Race: Ptfe
Housing Width: 28Mm
Base Of Rod End To Center Of Ball: 43Mm
Ball Thickness: 14Mm
Ultimate Static Load Rating: 2486 Lbs
Common Other Names For This Product: Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Wtf-M Thread Bungs, Mhtconnecting Tubes, Male Spherical Rod Ends, Jam Nuts, And Bolts.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Asfm (Steel Raced) Series, Our Dxtf (Nylon) Series, Dstf (Stainless) Series, Or Dpf (Bronze Zerked) Series.
Inch Alternative: The Inch Equivalent To This Series Is Our Mtf Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
