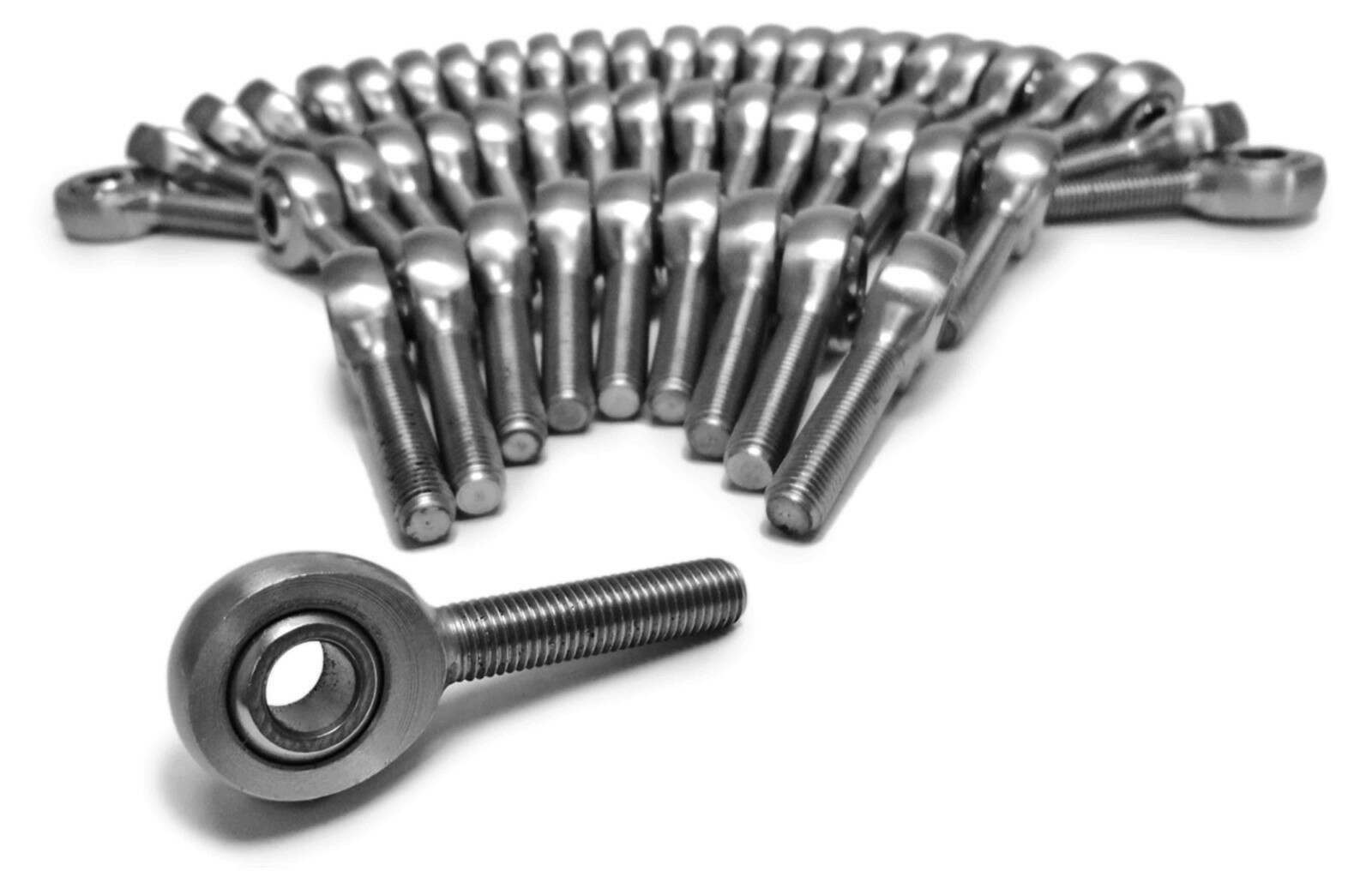

Steinjager Steinjäger Inch Male Rod Ends 5/8-18 RH Steel Housing, 2 Piece 50 Pack - J0014933
Quantity Per Package: This Package Includes 50 Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: Male 5/8 X 18 Rh X 1.625'
Ball Id: 5/8'
Housing Material: Steel
Finish: Zinc Yellow
Ball Finish: Hard Chrome Plated
Bearing Race: Steel On Steel
Housing Width: 1.500'
Base Of Rod End To Center Of Ball: 2.625'
Ball Thickness: .750'
Ultimate Static Load Rating: 10,454 Lbs
Common Other Names For This Product: Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Wtf Thread Bungs, Hbt Connecting Tubes, Female Spherical Rod Ends, Jam Nuts, And Bolts.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Asmm (Steel Raced) Series, Our Mxm (Nylon) Series, Stm (Stainless) Series, Or Mpm (Bronze Zerked) Series.
Metric Alternative: The Metric Equivalent To This Series Is Our Dwtm Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
