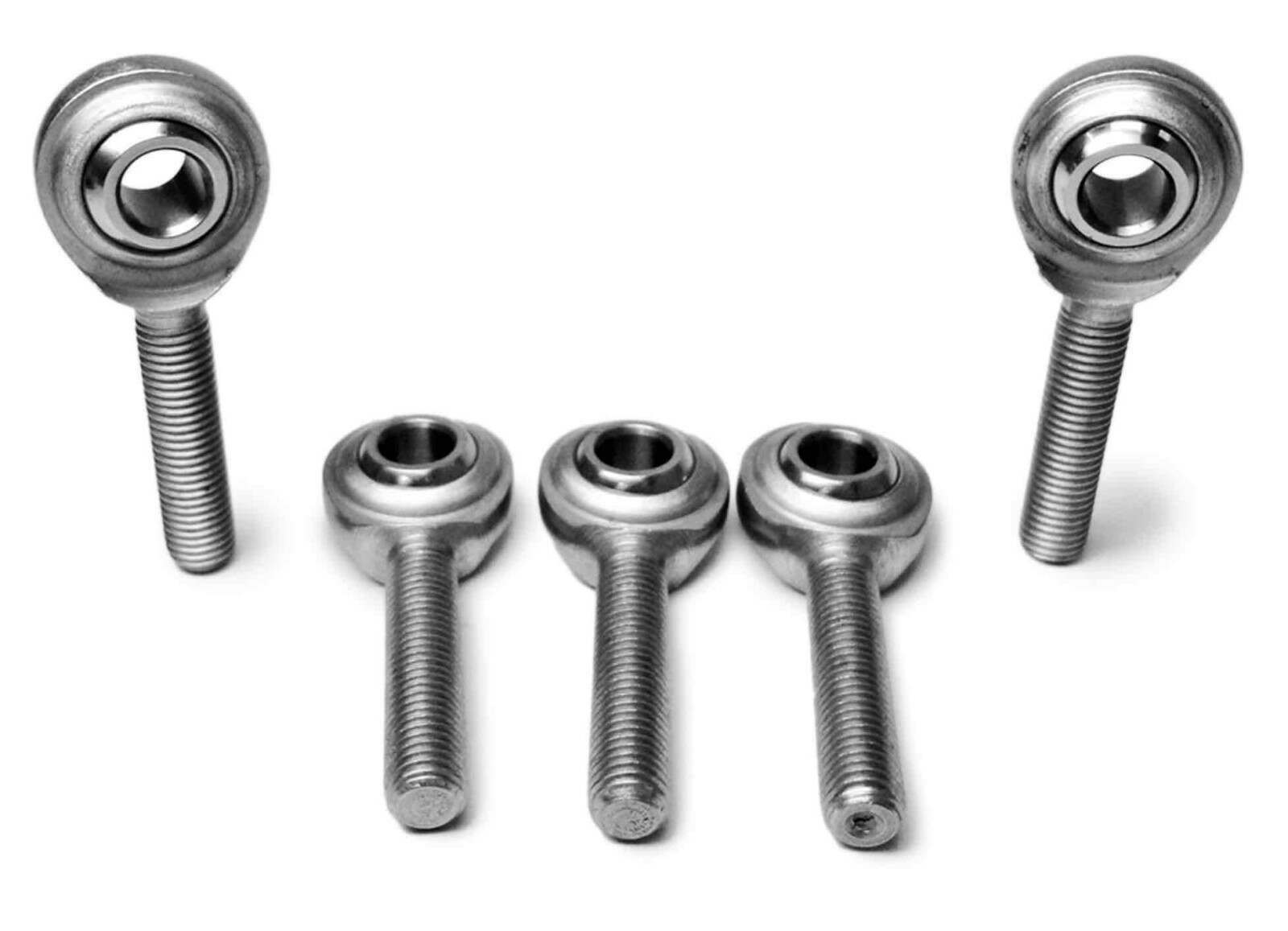

Steinjager Steinjäger Inch Male Rod Ends 5/16-24 RH Steel Housing, Bronze Race 5 Pack - J0029628
Quantity Per Package: Package Includes 5 Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: 5/16-24 Rh
Ball Id: 5/16'
Housing Material: Steel
Finish: Plated Zinc Yellow
Ball Finish: Hard Chrome Plated
Bearing Race: Bronze
Housing Width: 0.875'
Base Of Rod End To Center Of Ball: 1.875'
Ball Thickness: 0.437'
Ultimate Static Load Rating: 1600 Lbs
Common Other Names For This Product: Heim Joint, Rose Joint, Gelenkk??pfe, Rotula Esf?(C)fico, Embouts, Teste A Snodo
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
