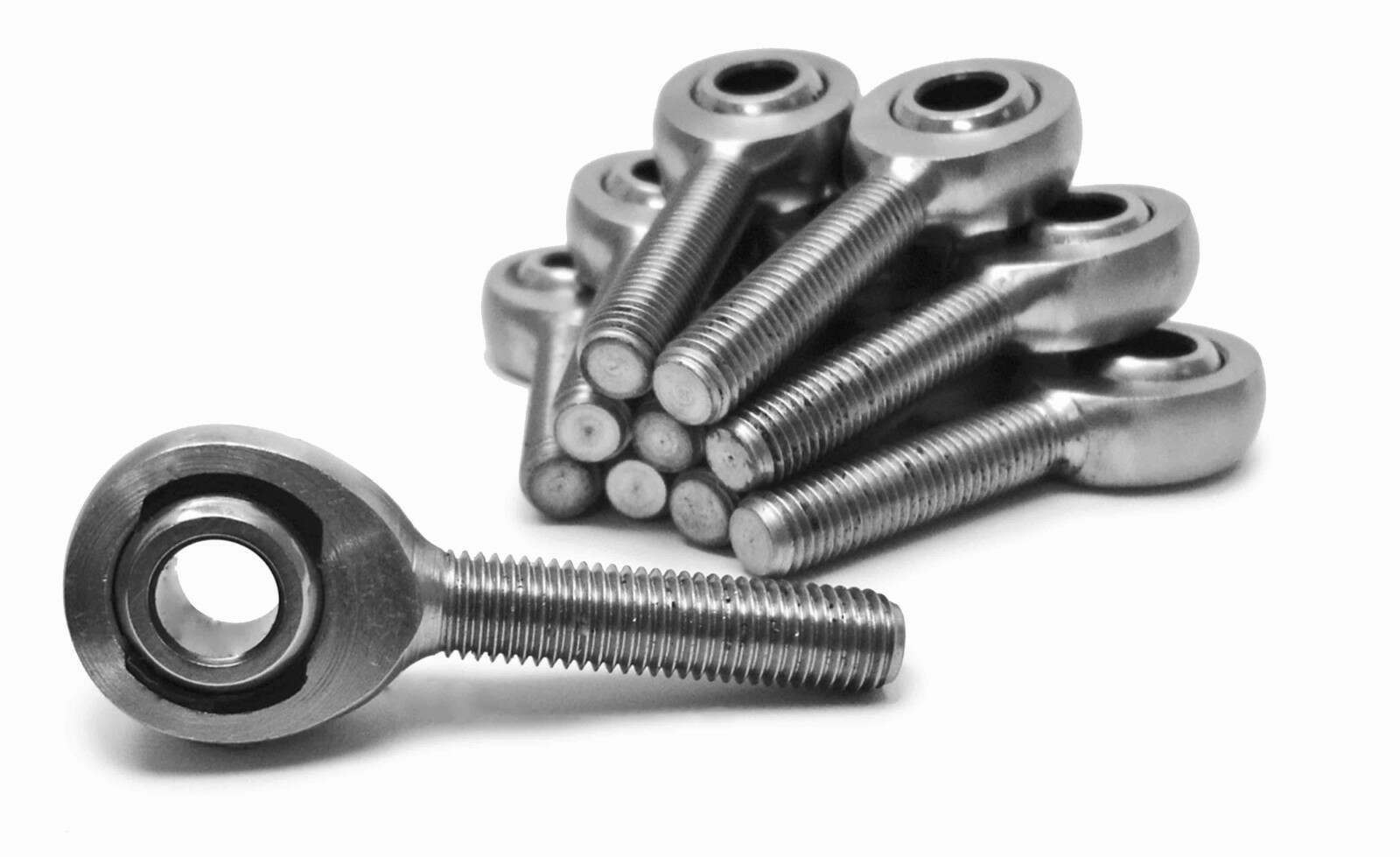

Steinjager Steinjäger Inch Male Rod Ends 3/8-24 LH Chrome Moly Housing, Nylon Race 10 Pack - J0014800
Quantity Per Package: This Package Includes 10 Spherical Rod Ends
Product Name: Male Spherical Rod End
Thread: Male 3/8-24 Lh X 1.25' Long
Ball Id: 3/8'
Housing Material: 4130 Heat Treated Chrome Moly Steel
Finish: Bright Chrome Plated
Ball Finish: Hard Chrome Plated
Bearing Race: Slotted Nylon
Housing Width: 1.000'
Base Of Rod End To Center Of Ball: 1.938'
Ball Thickness: 0.500'
Ultimate Static Load Rating: 9,771 Lbs
Common Other Names For This Product: Chromoly Heim Joint, Rose Joint
Application: Our Larger Chrome Moly Spherical Rod Ends Are Used As Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces. This Size Rod End Is Often Used In Hand Or Foot Actuated Push-Pull Linkages.
Common Accessories: These Spherical Rod Ends Are Typically Used With Our Mcw-6 Rod End Retaining Washers/Spacers, Rs375 Rod End Seals, Wtf Thread Bungs, Banl Thread Bung Adjuster Nuts, Ladder Bar Adjusters, Hbt And Aht Connecting Tubes, Female Spherical Rod Ends, Jam Nuts, And Bolts. Steinjager Also Offers A Variety Of Completed Welded Tubular Suspension Parts And Do-It-Yourself Universal And Application Specific (4) Four Link Triangulated And Parallel Suspensions, (3) Three Link Suspensions, Upper And Lower Control Arms, Lift Kits, Lowering Kits, Panhard Bars, Wishbone Kits, Track Bars, Traction Arms, And Wobble Bars.
Alternative Designs: For Lighter Duty Linkage Applications, Consider Our Msml (Steel Raced) Series, Our Mtml (Telfon Raced) Series, Stml (Stainless) Series, Or Mpml (Nylon) Series.
Mounting Studs: This Product Is Available With A Factory Installed Mounting Stud. Contact Us To Enquire About Our Mxml-6S Studded Rod End.
Metric Alternative: The Metric Equivalent To This Series Is Our Dxtml Series.
Warning: Regardless Of A Specific Product'S Name Or Marketing Description, Rod Ends Used In The Wrong Application Will Fail. We Encourage Our Customers To Know The Load Rating Requirements Of Their Application.
