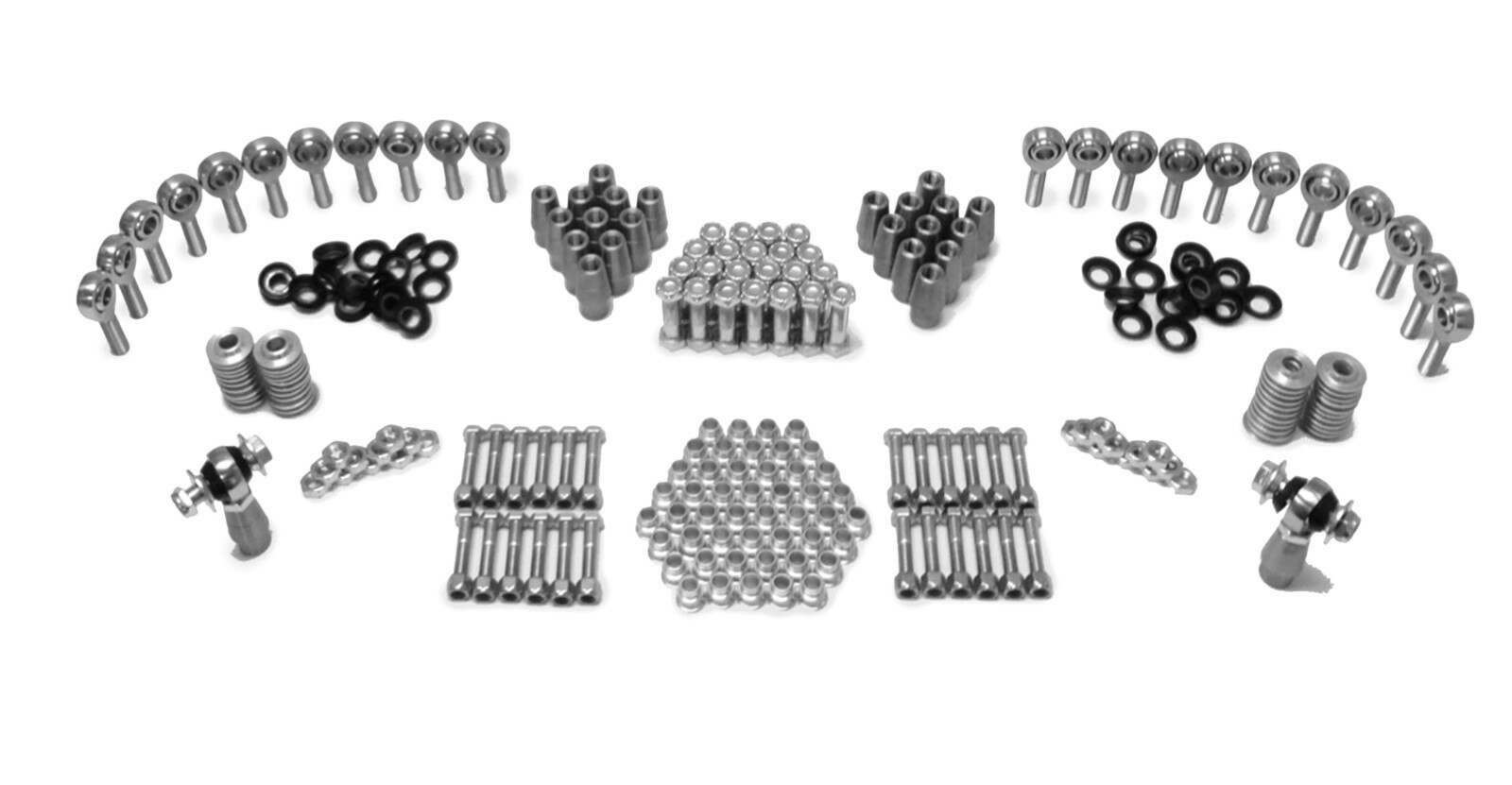

Steinjager Steinjäger Builders Kit Rod End Kits 7/8-14 x 3/4 RH and LH Chrome Moly Housing, Nylon Race Fits 1.750 x 0.120 Tubing 24 Rod Ends - J0015167
Kit Includes...
Spherical Rod End Bearings, Right Hand: (12) Twelve 7/8-14 Rh X 3/4' Bore Mxm-14-12 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Spherical Rod End Bearings, Left Hand: (12) Twelve 7/8-14 Lh X 3/4' Bore Mxml-14-12 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Thread Bungs, Right Hand: (12) Twelve Rh Chrome Moly Bungs To Fit 1.750' Od X 0.120' W Tubing.
Thread Bungs, Left Hand: (12) Twelve Lh Chrome Moly Bungs To Fit 1.750' Od X 0.120' W Tubing.
High Misalignment Inserts: (48) Hmbzc-12-10 Zinc Plated Steel Inserts. 5/8' Bore Size. Each Insert Adds 0.509' To Width Of Assembly, Or 1.018' Overall (Two Per Rod End).
Spacers/Washers: (48) Mcw-12 Zinc Plated Steel Spacers. 3/4' Bore. 0.300' Thick.
Rubber Seals: (48) Neoprene Face Seals Bonded To A Stainless Steel Washer. Use Two Per Spherical Rod End Bearing.
Rubber Boots: There Are No Rubber Boots In This Kit.
Nuts & Bolts...
(12) 7/8-14 Rh Grade 2 Plated Jam Nuts (For Rod End Stem)
(12) 7/8-14 Lh Grade 2 Plated Jam Nuts (For Rod End Stem)
(24) 5/8-18 Rh X 3.50' Grade 5 Plated Bolts (For Use With Misalignment Inserts)
(24) 5/8-18 Rh Grade 5 Plated Lock Nuts (For Use With Misalignment Insert Bolts)
(24) 3/4-16 Rh X 3.50' Grade 5 Plated Bolts (For Use With Rod Ends Without Inserts)
(24) 3/4-16 Rh Grade 5 Plated Lock Nuts (For Use With Rod End Bolts)
Accessories: Steinjager Also Manufactures Complete Tubular Suspension Links From Dom And/Or Chrome Moly Tubing. Contact Us About Your Special Application Or Private Labeling Opportunity.
Welding: For The Best Safety Results, Make Sure Any Welding Is Done By A Certified Welder, And That The Mating Components Are Of The Same Or Comparable Material.
