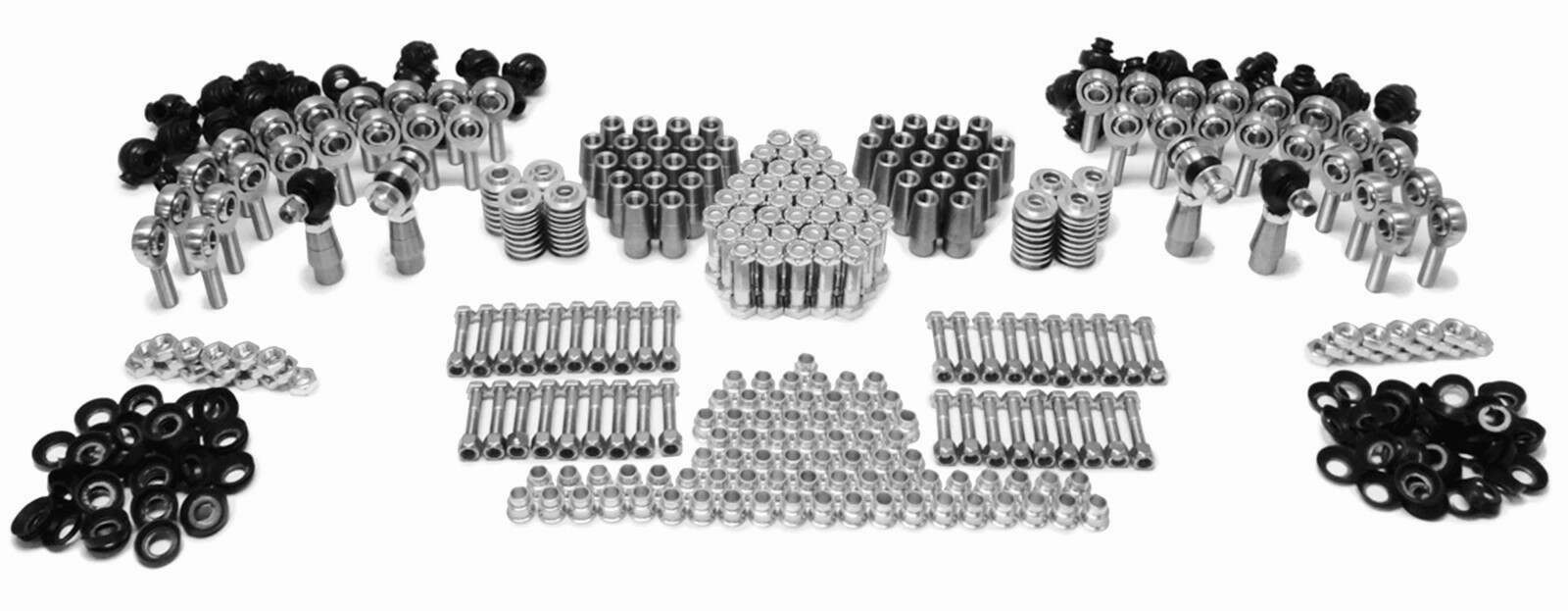

Steinjager Steinjäger Builders Kit Rod End Kits 3/4-16 RH and LH Chrome Moly Housing, Nylon Race Fits 1.250 x 0.120 Tubing 40 Rod Ends - J0015171
Kit Includes...
Spherical Rod End Bearings, Right Hand: (20) Twenty 3/4-16 Rh X 3/4' Bore Mxm-12 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Spherical Rod End Bearings, Left Hand: (20) Twenty 3/4-16 Lh X 3/4' Bore Mxml-12 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Thread Bungs, Right Hand: (20) Twenty Rh Chrome Moly Bungs To Fit 1.250' Od X 0.120' W Tubing.
Thread Bungs, Left Hand: (20) Twenty Lh Chrome Moly Bungs To Fit 1.250' Od X 0.120' W Tubing.
High Misalignment Inserts: (80) Hmbzc-12-10 Zinc Plated Steel Inserts. 5/8' Bore Size. Each Insert Adds 0.509' To Width Of Assembly, Or 1.018' Overall (Two Per Rod End).
Spacers/Washers: (80) Mcw-12 Zinc Plated Steel Spacers. 3/4' Bore. 0.300' Thick.
Rubber Seals: (80) Neoprene Face Seals Bonded To A Stainless Steel Washer. Use Two Per Spherical Rod End Bearing.
Rubber Boots: (40) Neoprene Boots For Spherical Rod Ends Fitted With High Misalignment Inserts.
Nuts & Bolts...
(20) 3/4-16 Rh Grade 2 Plated Jam Nuts (For Rod End Stem)
(20) 3/4-16 Lh Grade 2 Plated Jam Nuts (For Rod End Stem)
(40) 5/8-18 Rh X 3.50' Grade 5 Plated Bolts (For Use With Misalignment Inserts)
(40) 5/8-18 Rh Grade 5 Plated Lock Nuts (For Use With Misalignment Insert Bolts)
(40) 3/4-16 Rh X 2.50' Grade 5 Plated Bolts (For Use With Rod Ends Without Inserts)
(40) 3/4-16 Rh Grade 5 Plated Lock Nuts (For Use With Rod End Bolts)
Accessories: Steinjager Also Manufactures Complete Tubular Suspension Links From Dom And/Or Chrome Moly Tubing. Contact Us About Your Special Application Or Private Labeling Opportunity.
Welding: For The Best Safety Results, Make Sure Any Welding Is Done By A Certified Welder, And That The Mating Components Are Of The Same Or Comparable Material.
