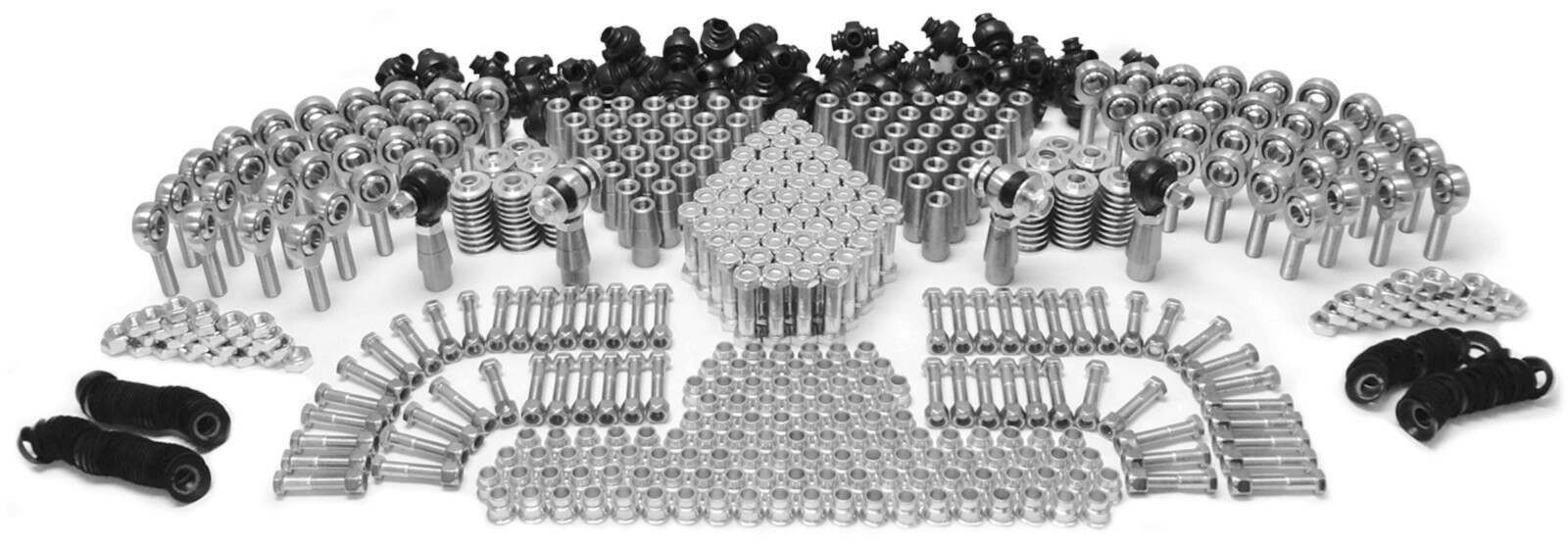

Steinjager Steinjäger Builders Kit Rod End Kits 1/2-20 RH and LH Chrome Moly Housing, Nylon Race Fits 1.000 x 0.083 Tubing 60 Rod Ends - J0015181
Kit Includes...
Spherical Rod End Bearings, Right Hand: (30) Thirty 1/2-20 Rh X 1/2' Bore Mxm-8 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Spherical Rod End Bearings, Left Hand: (30) Thirty 1/2-20 Lh X 1/2' Bore Mxml-8 Chrome Moly Male Spherical Rod Ends. 4130 Heat Treated Chrome Moly Housing, Chrome Plated, Slotted Nylon Race.
Thread Bungs, Right Hand: (30) Thirty Rh Chrome Moly Bungs To Fit 1.000' Od X 0.083' W Tubing.
Thread Bungs, Left Hand: (30) Thirty Lh Chrome Moly Bungs To Fit 1.000' Od X 0.083' W Tubing.
High Misalignment Inserts: (120) Hmbzc-8-6 Zinc Plated Steel Inserts. 3/8' Bore Size. Each Insert Adds 0.438' To Width Of Assembly, Or 0.876' Overall (Two Per Rod End).
Spacers/Washers: (120) Mcw-8 Zinc Plated Steel Spacers. 1/2' Bore. 0.228' Thick.
Rubber Seals: (120) Neoprene Face Seals Bonded To A Stainless Steel Washer. Use Two Per Spherical Rod End Bearing.
Rubber Boots: (60) Neoprene Boots For Spherical Rod Ends Fitted With High Misalignment Inserts.
Nuts & Bolts...
(30) 1/2-20 Rh Grade 2 Plated Jam Nuts (For Rod End Stem)
(30) 1/2-20 Lh Grade 2 Plated Jam Nuts (For Rod End Stem)
(60) 3/8-24 Rh X 2.75' Grade 8 Plated Bolts (For Use With Misalignment Inserts)
(60) 3/8-24 Rh Grade 5 Plated Lock Nuts (For Use With Misalignment Insert Bolts)
(60) 1/2-20 Rh X 2.50' Grade 8 Plated Bolts (For Use With Rod Ends Without Inserts)
(60) 1/2-20 Rh Grade 5 Plated Lock Nuts (For Use With Rod End Bolts)
Accessories: Steinjager Also Manufactures Complete Tubular Suspension Links From Dom And/Or Chrome Moly Tubing. Contact Us About Your Special Application Or Private Labeling Opportunity.
Welding: For The Best Safety Results, Make Sure Any Welding Is Done By A Certified Welder, And That The Mating Components Are Of The Same Or Comparable Material.
