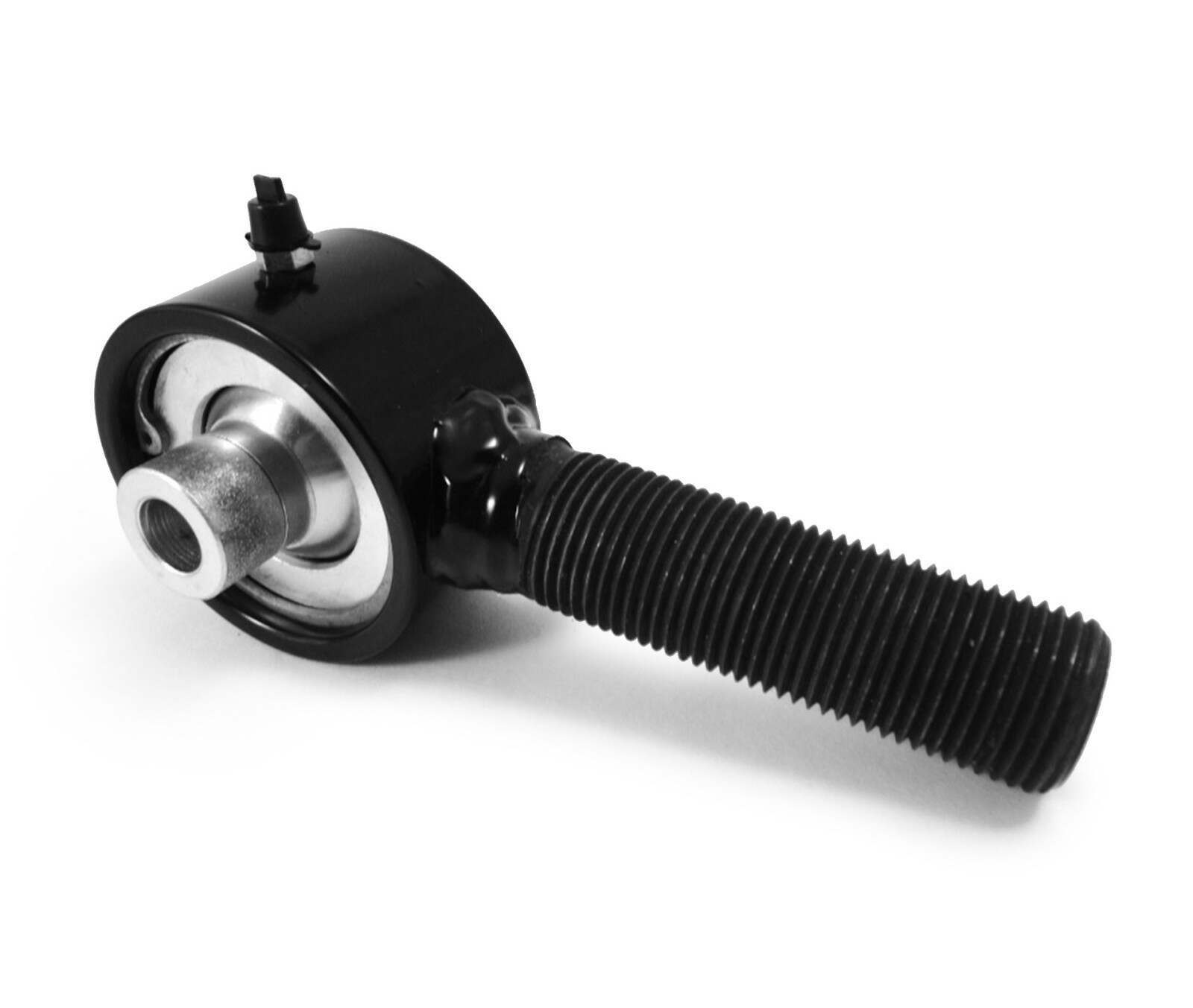

Steinjager Male Rebuildable Rod Ends 7/8-14 RH 7/16 Bore 2.500 Wide 1 Pack - J0031282
Quantity Per Package: This Package Includes One Steinj??ger Joint, A Cartridge Style Rebuildable Rod End
Product Name: Steinj??ger Joint, Male
Thread Size: 7/8-14
Dimensions In Inches Unless Otherwised Noted:
A - 7/16
B - 0.843
G - 4.625
H - 2.875
J - 2.500
M - 1.500
N - 2.500
Housing Material: 4130 Chrome Moly
Stud Material: Grade 8 Equivalent
Race Material: Poly
The Steinj??ger Joint Is Intended To Be Used In A Double Shear Application. Use In A Single Shear Application Could Cause Premature Wear Or Part Failure.
The Steinj??ger Joint Was Designed With The End User, Fabricator And Retailer In Mind. Interchangeable Inserts With Varying Widths And Bores Allow You To Have Less Products On Hand But Have A Variety Of Options. This Is Ideal When You Are Limited On Space Both On The Trails Or In Your Shop.
Custom Fabricating: Steinjager Offers A Full Range Of Tube Fabricating Capabilities Including Sawing, Cnc Bending, Robotic Mig Welding, Tig Welding, Threading, Drilling, Tapping, Reaming, Deburring, Forging, Upset Forging, Press Forming, Press Flattening, Assembly, Rotary Swaging, Power Bending, And Powder Painting. Laser Cutting, Cnc Turned Parts, Multispindle Parts, And Progressive Stampings Are Also Available As Part Of Tubular Weldments And Assemblies. Steinjager Also Offers Complete Wireforming Capabilities Including All Of The Above Process, Plus Zinc Plating, Heat Treating And Cold Heading. Let Us Custom Build And/Or Private Label Your Application For You!
