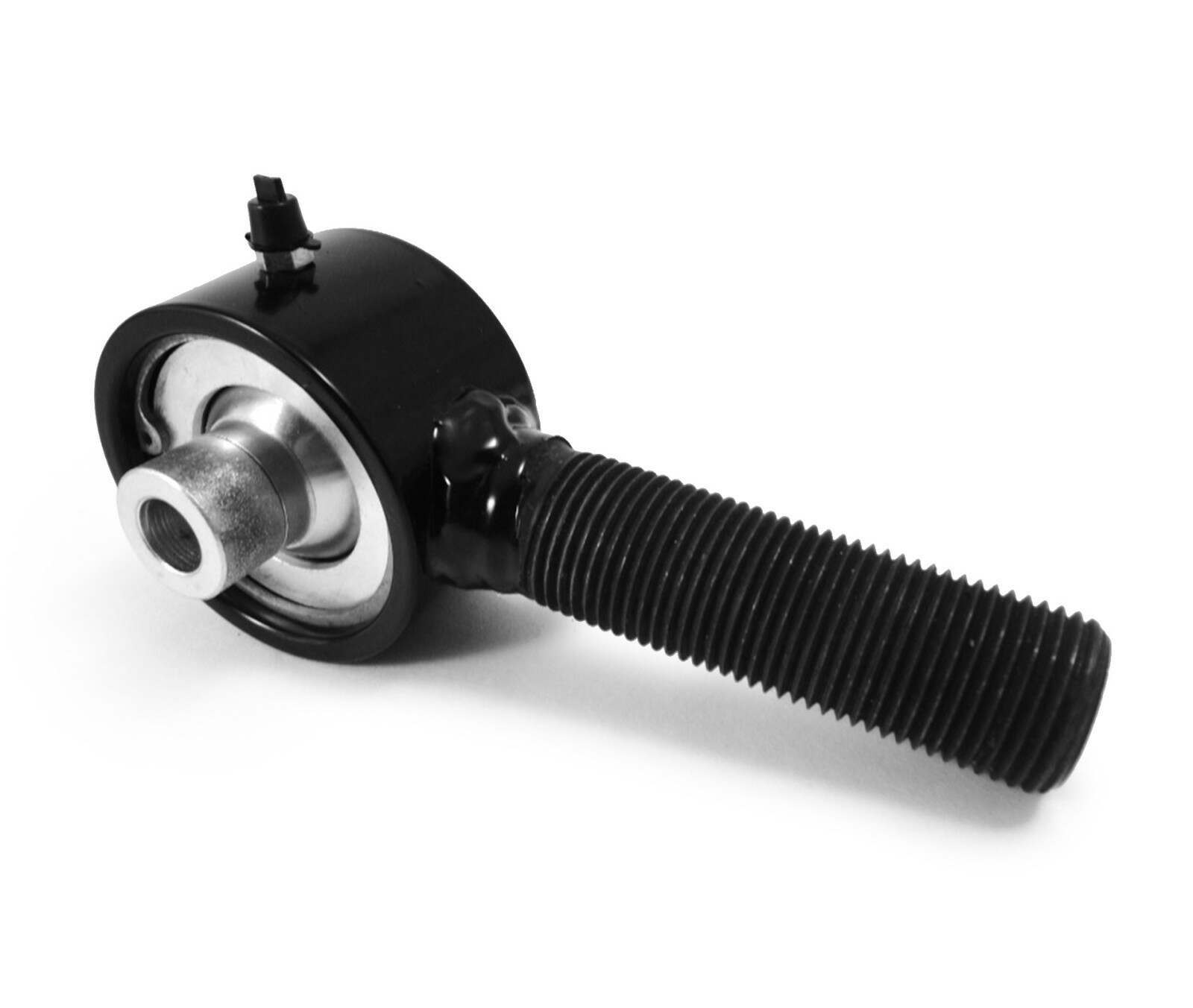

Steinjager Male Rebuildable Rod Ends 7/8-14 RH 12mm Bore 2.625 Wide 1 Pack - J0031306
Quantity Per Package: This Package Includes One Steinj??ger Joint, A Cartridge Style Rebuildable Rod End
Product Name: Steinj??ger Joint, Male
Thread Size: 7/8-14
Dimensions In Inches Unless Otherwised Noted:
A - 12Mm
B - 0.843
G - 4.625
H - 2.875
J - 2.500
M - 1.500
N - 2.625
Housing Material: 4130 Chrome Moly
Stud Material: Grade 8 Equivalent
Race Material: Poly
The Steinj??ger Joint Is Intended To Be Used In A Double Shear Application. Use In A Single Shear Application Could Cause Premature Wear Or Part Failure.
The Steinj??ger Joint Was Designed With The End User, Fabricator And Retailer In Mind. Interchangeable Inserts With Varying Widths And Bores Allow You To Have Less Products On Hand But Have A Variety Of Options. This Is Ideal When You Are Limited On Space Both On The Trails Or In Your Shop.
