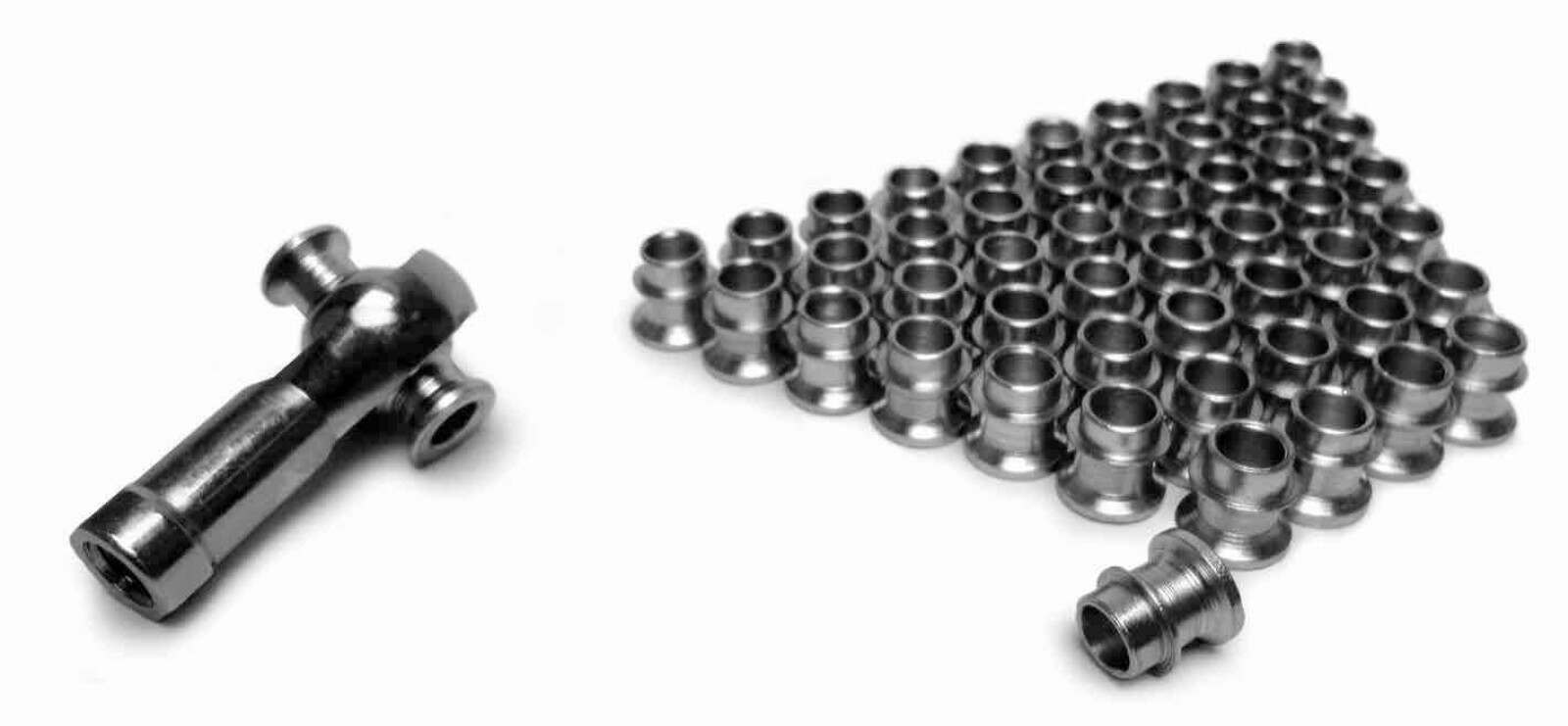

Steinjager For 8mm Rod Ends Straight Style Rod End Misalignment Inserts Yields 6mm Bore Plated Steel 50 Pack - J0014245
Quantity Per Package: This Package Includes 50 Bushings (Enough For 25 Spherical Rod Ends). This Item Does Not Include The Spherical Rod End.
Product Name: High Misalignment Insert Bushing
Fits Rod End Bore Size Of: 8Mm
Bore Size Of Insert: 6Mm
Material: Steel
Finish: Plated Zinc Clear (Silver)
Length Of Bushing After Installation: Each Bushing Adds 7.47Mm Of Width To The Rod End, Or 14.94Mm Overall (Because Two Bushings Are Required Per Rod End).
Diameter Of Flare: 11.10Mm
Common Other Names For This Product: Heim Joint Bushings, Tapered Rod End Spacers, Rod End Inserts.
Application: High Misalignment Bushings Are Used To Increase The Misalignment Angle Of A Spherical Rod End Bearing. Two High Misalignment Bushings Are Required For Each Spherical Rod End Bearing. The High Misalignment Inserts Are A Simple Slip Fit. These Bushings Provide For More Clearance So The Bolt Head Does Not Minimize The Natural Cone Angle Of The Spherical Rod End Bearing.
Typical Mating Part: These Bushings Are Commonly Used In Conjunction With Our Dxtm-8 Chrome Moly Spherical Rod End Bearing, And Our Dstm-8 Stainless Steel Teflon Race Spherical Rod End Bearing. They Can Also Be Used With Some Spherical Plain Bearings, And Most 8Mm Bore I.D. Spherical Rod Ends - Male Or Female.
Inch Alternative: The Inch Equivalent To This Series Is Our Hmbzc Series.
