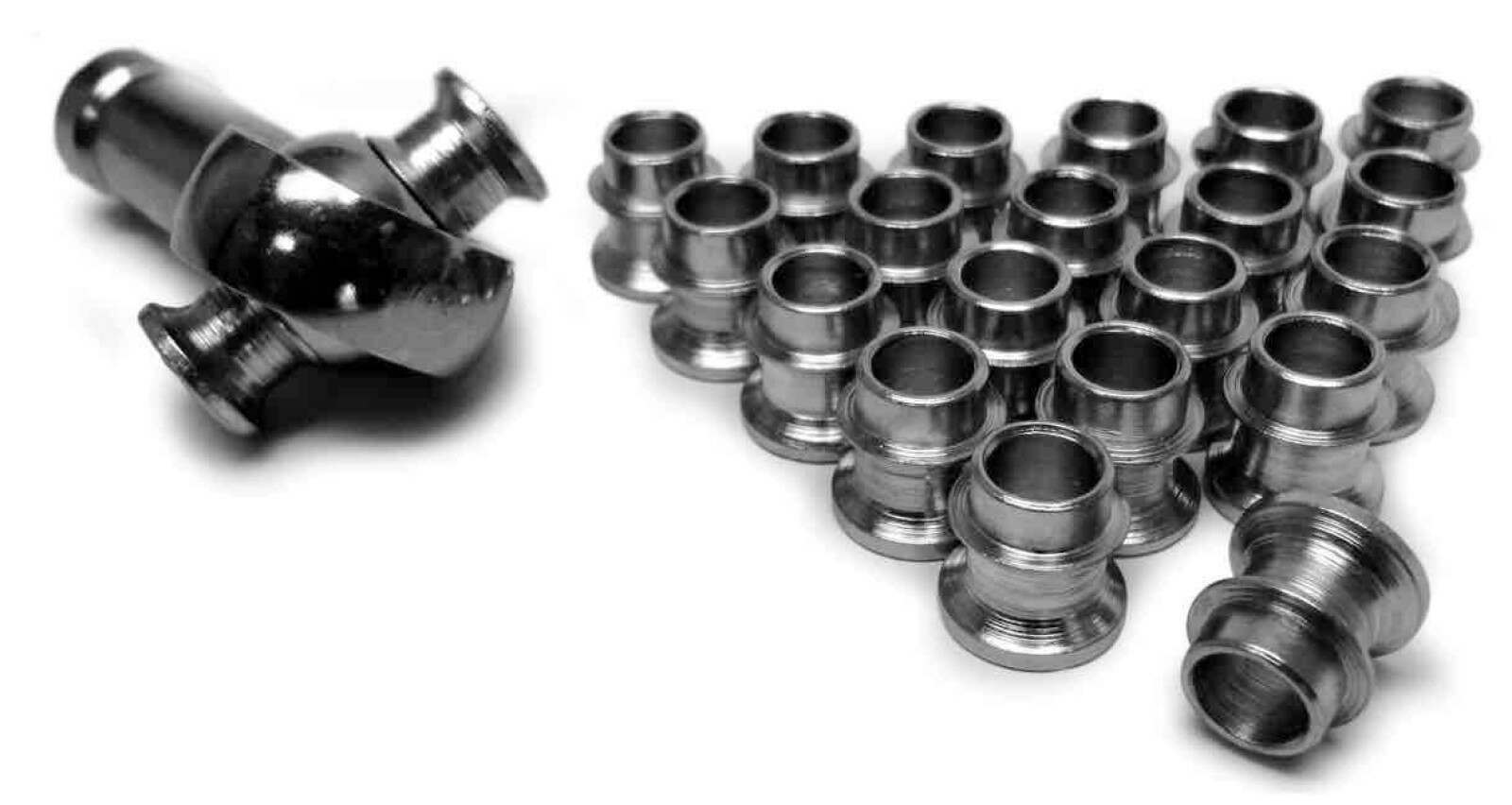

Steinjager For 5/8 Rod Ends Straight Style Rod End Misalignment Inserts Yields 1/2 Bore Stainless 20 Pack - J0014235
Quantity Per Package: This Package Includes 20 Bushings (Enough For 10 Spherical Rod Ends). This Item Does Not Include The Spherical Rod End.
Product Name: High Misalignment Insert Bushing
Fits Rod End Bore Size Of: 5/8'
Bore Size Of Insert: 1/2'
Material: Stainless Steel
Length Of Bushing After Installation: Each Bushing Adds 0.485' Of Width To The Rod End, Or 0.970' Overall (Because Two Bushings Are Required Per Rod End).
Diameter Of Flare: 0.880'
Common Other Names For This Product: Heim Joint Bushings, Tapered Rod End Spacers, Rod End Inserts.
Application: High Misalignment Bushings Are Used To Increase The Misalignment Angle Of A Spherical Rod End Bearing. Two High Misalignment Bushings Are Required For Each Spherical Rod End Bearing. The High Misalignment Inserts Are A Simple Slip Fit. These Bushings Provide For More Clearance So The Bolt Head Does Not Minimize The Natural Cone Angle Of The Spherical Rod End Bearing.
Typical Mating Part: These Bushings Are Commonly Used In Conjunction With Our Mxm-10 Chrome Moly Spherical Rod End Bearing, And Our Stm-10 Stainless Steel Teflon Race Spherical Rod End Bearing. They Can Also Be Used With Some Spherical Plain Bearings, And Most 5/8' Bore I.D. Spherical Rod Ends - Male Or Female.
Metric Alternative: The Metric Equivalent To This Series Is Our Hmbss-M Series.
