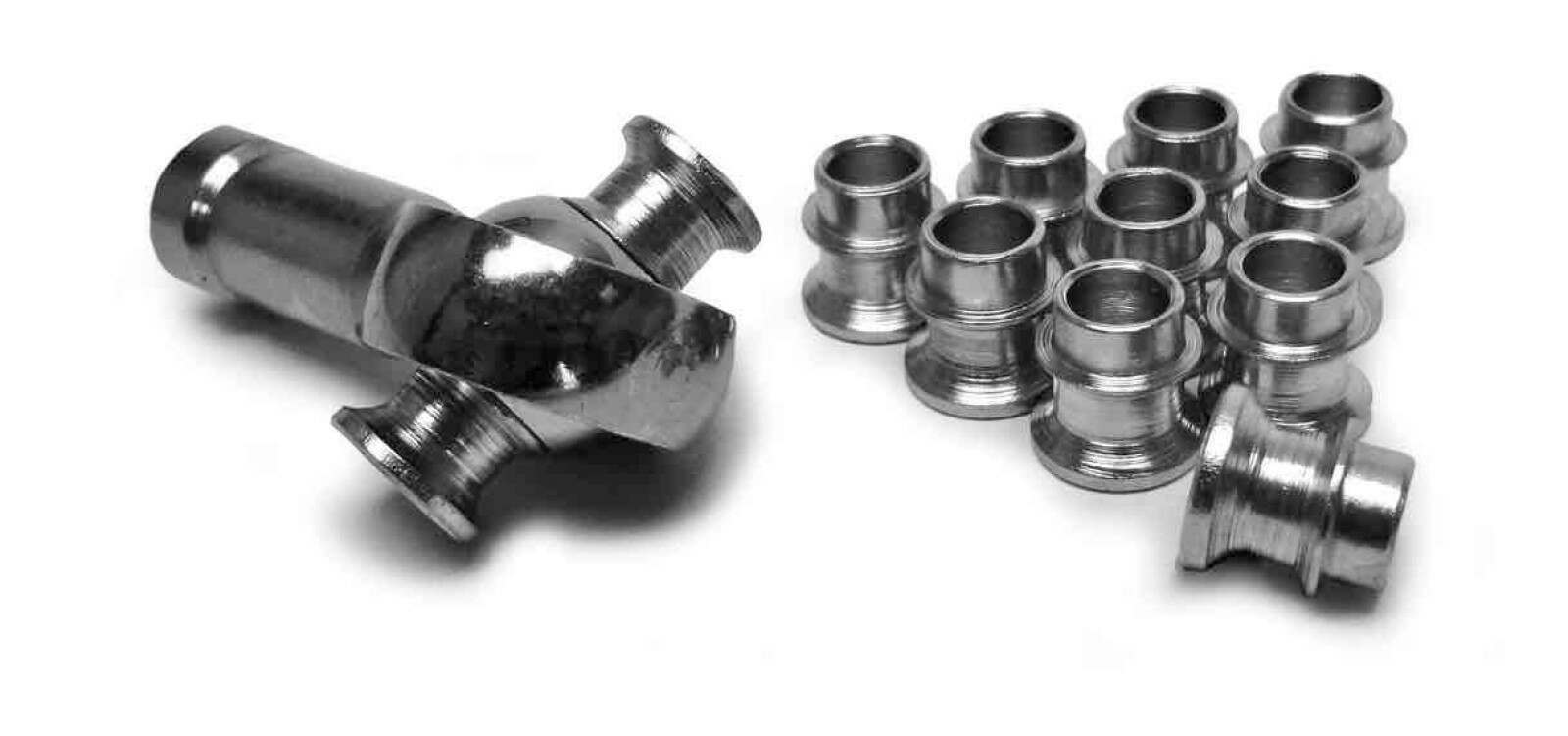

Steinjager For 10mm Rod Ends Straight Style Rod End Misalignment Inserts Yields 8mm Bore Plated Steel 10 Pack - J0014199
Quantity Per Package: This Package Includes 10 Bushings (Enough For Five Spherical Rod Ends). This Item Does Not Include The Spherical Rod End.
Product Name: High Misalignment Insert Bushing
Fits Rod End Bore Size Of: 10Mm
Bore Size Of Insert: 8Mm
Material: Steel
Finish: Plated Zinc Clear (Silver)
Length Of Bushing After Installation: Each Bushing Adds 9.32Mm Of Width To The Rod End, Or 18.64Mm Overall (Because Two Bushings Are Required Per Rod End).
Diameter Of Flare: 14.40Mm
Common Other Names For This Product: Heim Joint Bushings, Tapered Rod End Spacers, Rod End Inserts.
Application: High Misalignment Bushings Are Used To Increase The Misalignment Angle Of A Spherical Rod End Bearing. Two High Misalignment Bushings Are Required For Each Spherical Rod End Bearing. The High Misalignment Inserts Are A Simple Slip Fit. These Bushings Provide For More Clearance So The Bolt Head Does Not Minimize The Natural Cone Angle Of The Spherical Rod End Bearing.
Typical Mating Part: These Bushings Are Commonly Used In Conjunction With Our Dxtm-10 Chrome Moly Spherical Rod End Bearing, And Our Dstm-10 Stainless Steel Teflon Race Spherical Rod End Bearing. They Can Also Be Used With Some Spherical Plain Bearings, And Most 10Mm Bore I.D. Spherical Rod Ends - Male Or Female.
Inch Alternative: The Inch Equivalent To This Series Is Our Hmbzc Series.
