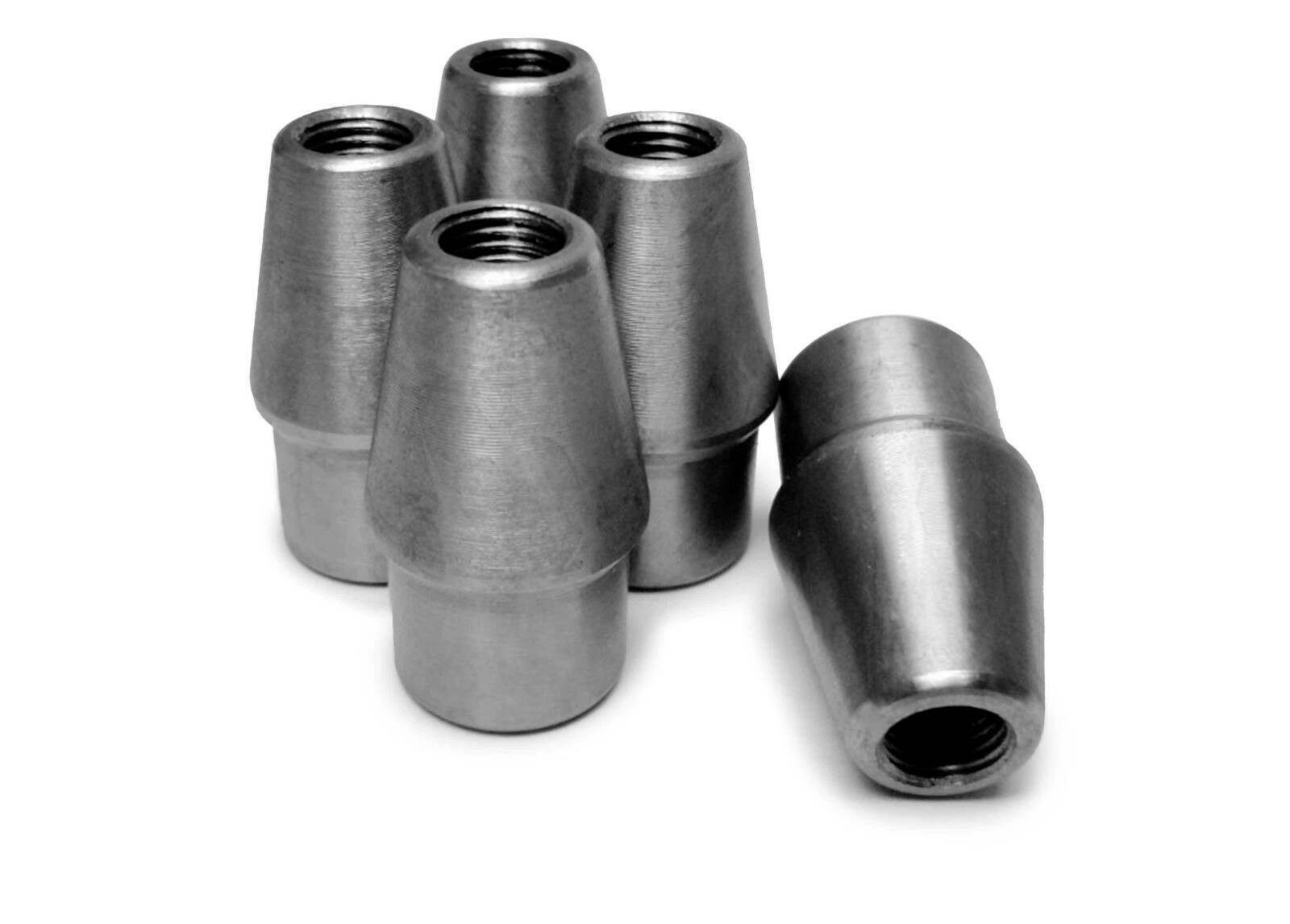

Steinjager 5/8-18 RH Thread Bungs Fits 1.000 x 0.058 Tubing 5 Pack - J0015386
Quantity Per Package: Package Includes Five Chrome Moly Weldable Thread Bungs
Product Name: Chrome Moly Weldable Thread Bung
Thread: Female 5/8'-18 Rh
Material: 4130 Chrome Moly
Mating Tube: 1.00' Od X .058' W Tubing
Overall Length: 2.00'
Exposed Length: 1.00'
Diameter Of Inserted Portion: .869'
Maximum Diameter Of External Portion: 1.00'
Finish: These Chrome Moly Weldable Thread Bungs Come Bare Metal (Plain Finish) And Ready To Weld. Comment: For The Best Safety Results, Make Sure Any Welding Is Done By A Certified Welder, And That The Mating Components Are Of The Same Or Comparable Material.
Common Other Names For This Product: Chromoly Thread Inserts, Weld Threads, Bungs
Application: Our Chrome Moly Weldable Thread Bungs Are Typically Used On Sway Bar End Links, Panhard Bars, Control Arms, Three Link And Four Link Suspensions And Strut Tower Braces.
Common Accessories: Our Thread Bungs Are Available With Our Male Spherical Rod End Bearings, Nuts, And Tubular Kits.
Typical Mating Part: This Chrome Moly Weldable Thread Bung Is Commonly Used With Our
Mxm-10(Male Spherical Rod End).
Alternative Designs: Steinjager Offers A Variety Of Completed Welded Tubular Suspension Parts And Do-It-Yourself Universal And Application Specific (4) Four Link Triangulated And Parallel Suspensions, (3) Three Link Suspensions, Upper And Lower Control Arms, Lift Kits, Lowering Kits, Panhard Bars, Wishbone Kits, Track Bars, Traction Arms, And Wobble Bars.
Metric Alternative: The Metric Equivalent To This Series Is Our Wtf-M Series.
