RockJock 4x4 Johnny Joint Rod End 2 Inch Narrow Forged Long Shank Bent for TJ/LJ/XJ/MJ/ZJ Front Trac Bar 1 Inch-14 RH Threads 1.600 Inch x .510 Inch Ball - RJ-305301-102
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 inch diameter, narrow body and features a 9 inch long shank, from CL of joint to end of tip of threads), 3 1/2 inch of 1 inch-14 RH threads and a 1.600 inch wide x .510 inch thru-hole center pivot ball.

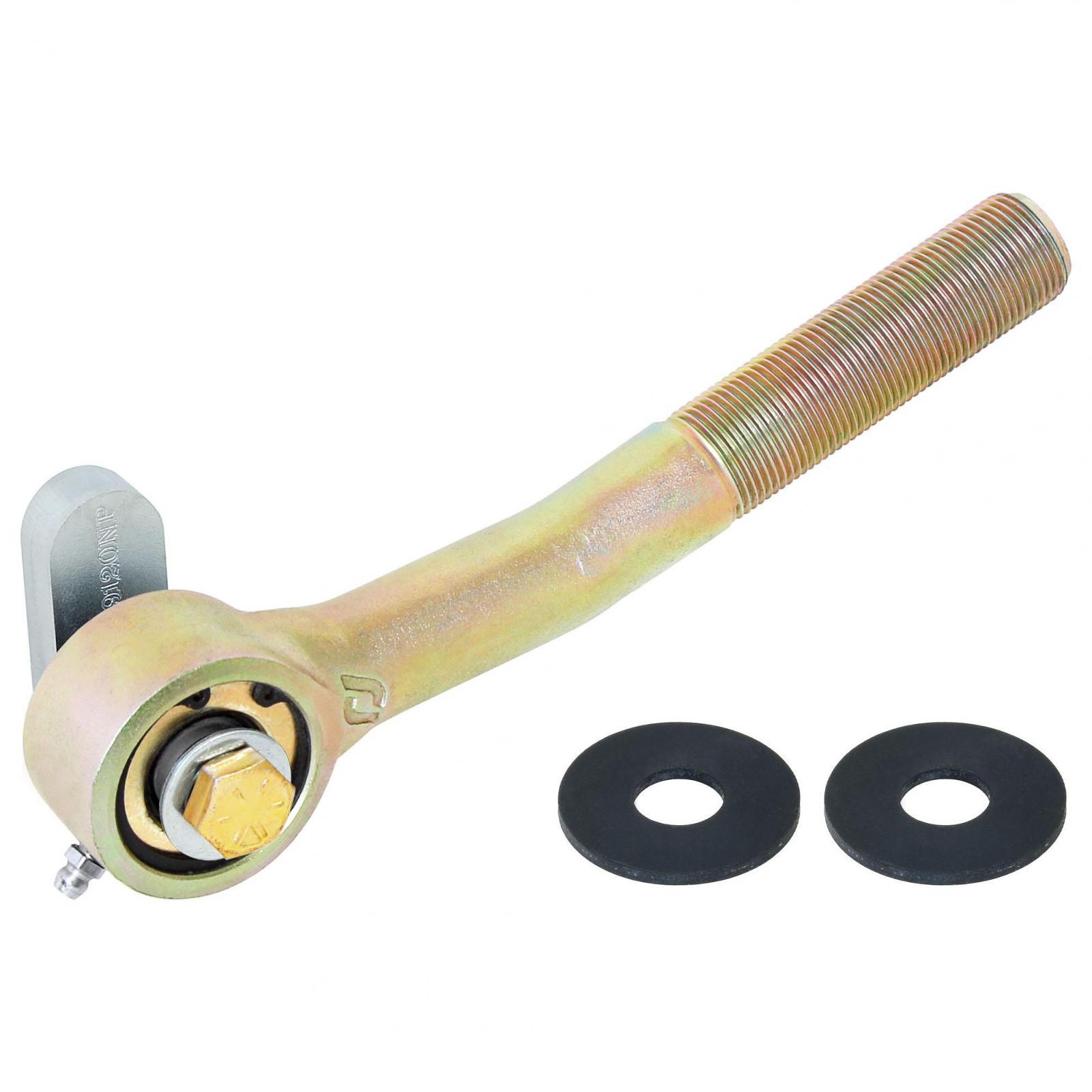

Being that, in our applications, we use this specific joint in TJ, LJ, XJ, MJ and XJ front trac bars, the shank portion features a 12 degree vertical bend, 3 1/2 inch from the joint Cl, as seen in the photo, making it specific to fitment in this application.
Finish is gold zinc plating. RockJock Forged Johnny Joint Rod Ends are found incorporated into our suspension kits and components, but are also available individually for universal usage when custom suspension is being fabricated. Joint is externally greasable via a zerk fitting.
Kit Fits:
- Included Component in our CE-9120TJS TJ, LJ, XJ, MJ and ZJ Front Trac Bar
- Universal Application
Kit Includes:
- (1) Forged Johnny Joint Assembly
- (2) Rubber Washers (fit outboard on both sides of the Johnny Joint to encourage the joint to re-center itself after articulating)
- All required hardware for attaching the joint to the axle housing of a TJ, LJ, XJ, MJ or ZJ
Rod End Specs:
- Forged 4140 Chromoly Construction
- 2 in. O.D., narrow body Johnny Joint at one end
- Measures 8.130 in. from CL of the joint to the end of the tip of the threads
- 12 degree vertical bend in the shank, 3 1/2 in. from the joint CL, specific to the CE-9120TJS Trac Bar application.
- 3 1/2 in. of 1 in.-14 RH Threads
- Features our CE-91122-6 center pivot ball (1.600 in. x .510 in.)
Notes:
- Intended for use at the axle end of our CE-9120TJS TJ, LJ, XJ, MJ and ZJ Front Trac Bar.
- See CE-9113JN for a Jam Nut to fit this joint.
- If a Weld-In Bung and Jam Nut are required, see CE-9113B.
Parts List:
- Johnny Joint Forging: RJ-305301-2
- Johnny Joint Rebuild Kit: CE-9112NRK
- Johnny Joint Center Pivot Ball: CE-91122-6
- Rubber Washer: CE-9120W
- 1/2 in.-20 x 2 3/4 in. Long Hex Bolt: CE-91257A744
- 1/2 in. Flat Washer: CE-H0014
- 1/2 in.-20 Flag Nut: CE-9120NP
- Zerk Fitting: CE-1103K21
