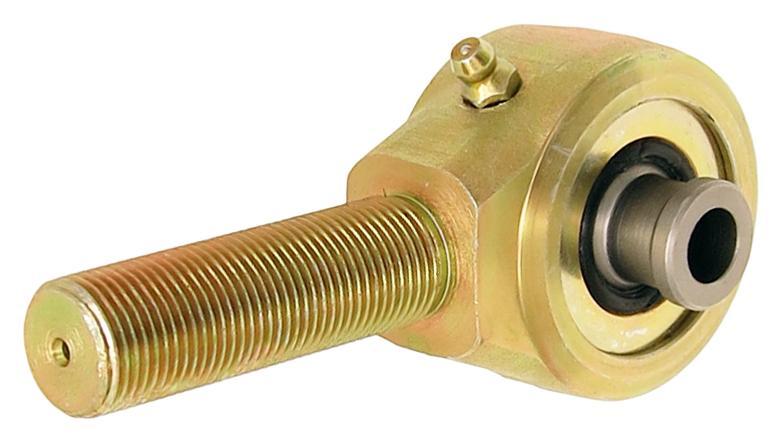

RockJock 4x4 Narrow Forged Johnny Joint 2 Inch 1.970 Inch X 0.562 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each - CE-9112N75-27
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 right hand threads on the shank, and a 1.970 Inch mounting width ball with a .562 Inch thru bolt hole. Finished in gold zinc plating.
Details:
- Narrow Forged Johnny Joint
- 2 Inch
- 1.970 Inch X 0.562 Inch Ball
- 3/4 Inch-16 Right Hand Threaded Shank
- Externally Greased
- Each
