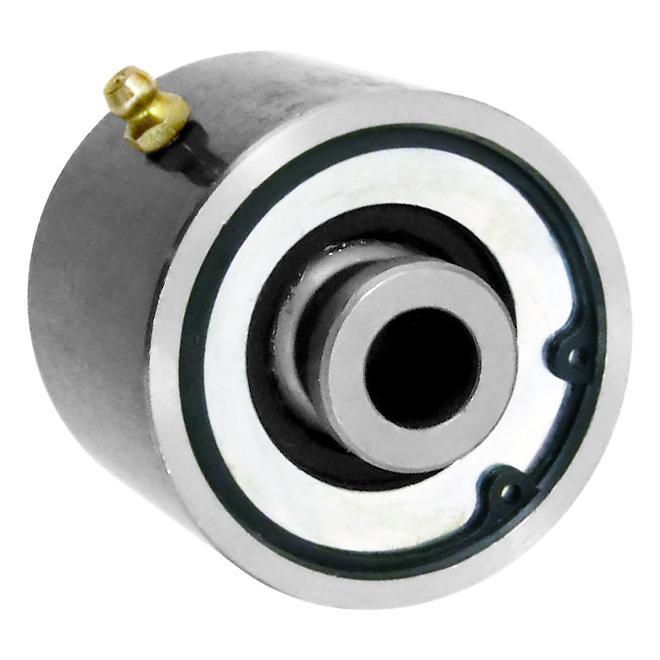

RockJock 4x4 Johnny Joint Rod End 2 1/2 Inch Weld-On 2.590 Inch X 0.718 Inch Ball Externally Greased Each - CE-9110P-20
RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
The outer shell is weldable .180 Inch wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 Inch o.d. and features a 2.590 Inch mounting width and a .718 Inch thru bolt hole.
Details:
- Johnny Joint Rod End
- 2 1/2 Inch
- Weld-On
- 2.590 Inch X 0.718 Inch Ball
- Externally Greased
- Each
