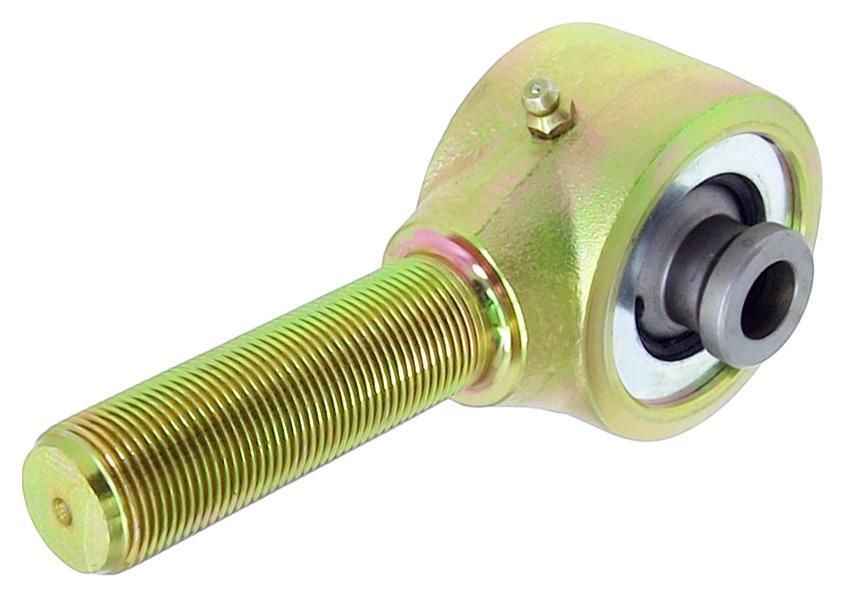

RockJock 4x4 Johnny Joint Rod End 2 1/2 Inch Narrow Forged 1 Inch-14 RH Threads 2.625 Inch x .640 Inch Ball - RJ-331300-102
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint features a narrow 2 1/2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 1 inch-14 right hand threads on the shank, and a 2.625 inch mounting width ball with a .640 thru bolt hole. Finished in gold zinc plating.
