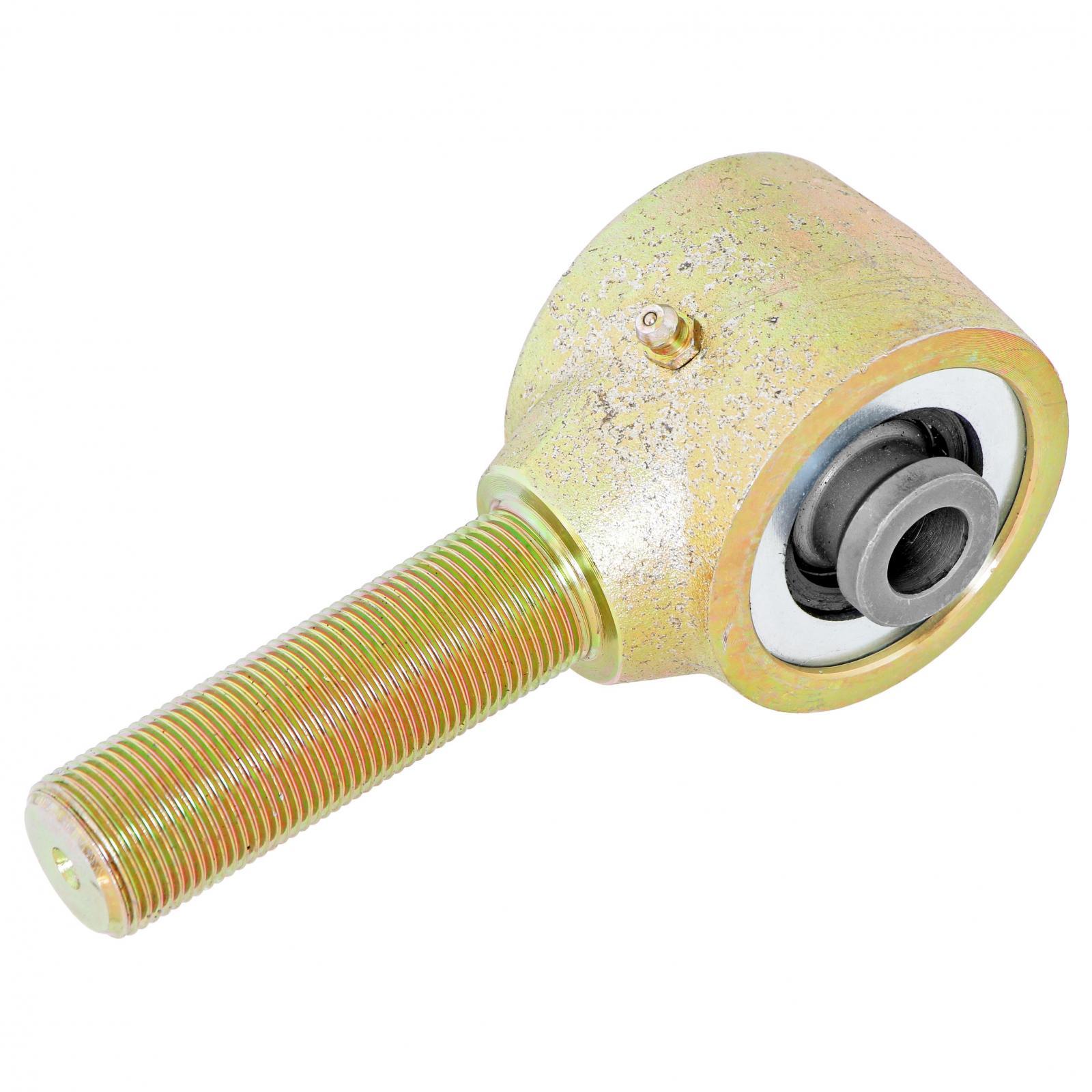

RockJock 4x4 Forged Johnny Joint 2 1/2 Inch 2.625 Inch X 0.562 Inch Ball 1 Inch-14 Left Hand Threaded Shank Externally Greased Each - CE-9113L
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 Inch-14 left hand threads on the shank, and a 2.625 Inch mounting width ball with a .562 Inch thru bolt hole. Finished in gold zinc plating.
Details:
- Forged Johnny Joint
- 2 1/2 Inch
- 2.625 Inch X 0.562 Inch Ball
- 1 Inch-14 Left Hand Threaded Shank
- Externally Greased
- Each
