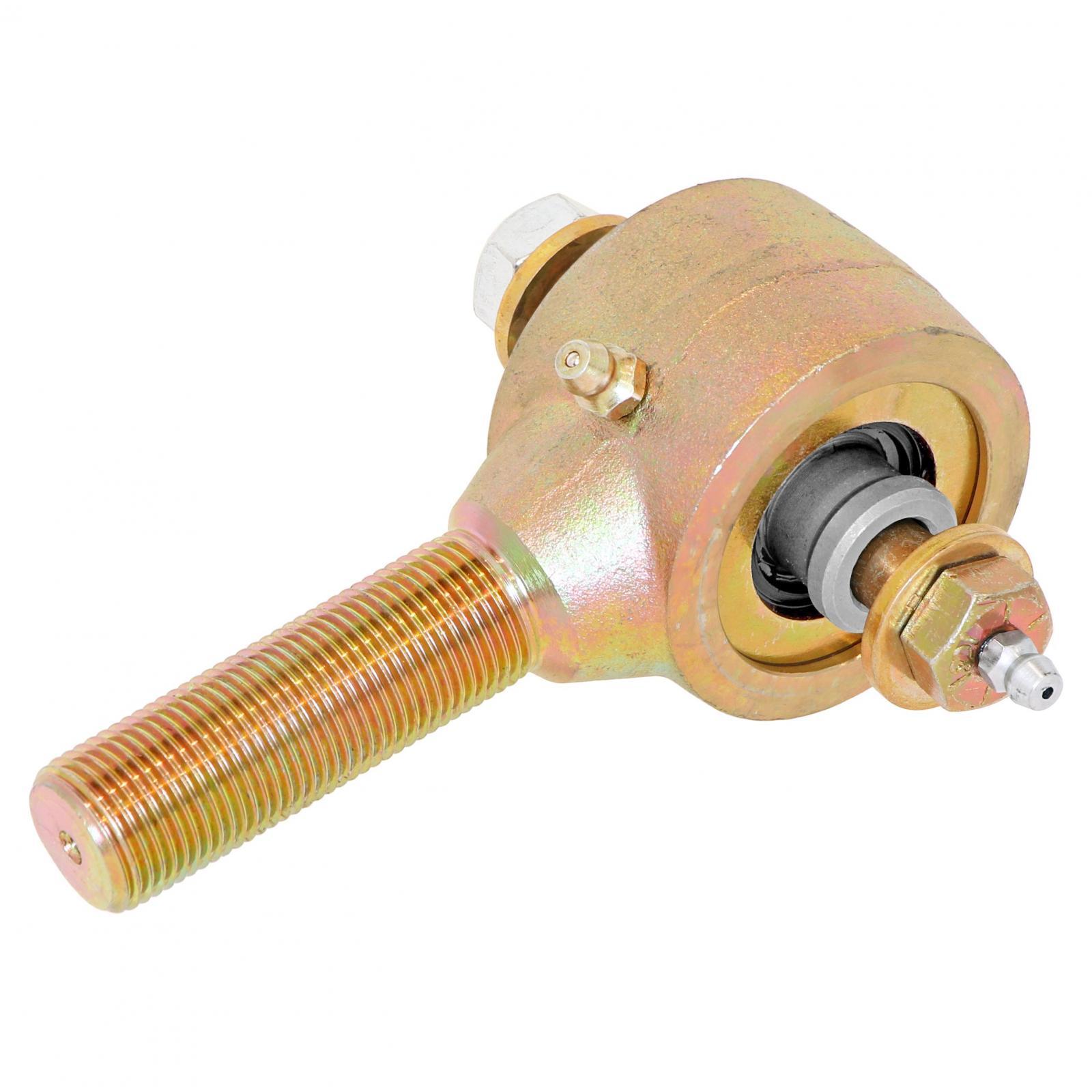

RockJock 4x4 Forged Johnny Joint 2 Inch 2 Inch X 0.4375 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Internally Greased Includes Greasable Bolt Each - CE-9112S
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 right hand threads on the shank, and a 2 Inch mounting width ball with a .4375 Inch thru bolt hole.
Finished in gold zinc plating. This unit also includes a 7/16 Inch greasable bolt for external greasing of the joint.
Details:
- Forged Johnny Joint
- 2 Inch
- 2 Inch X 0.4375 Inch Ball
- 3/4 Inch-16 Right Hand Threaded Shank
- Internally Greased
- Includes Greasable Bolt
- Each
