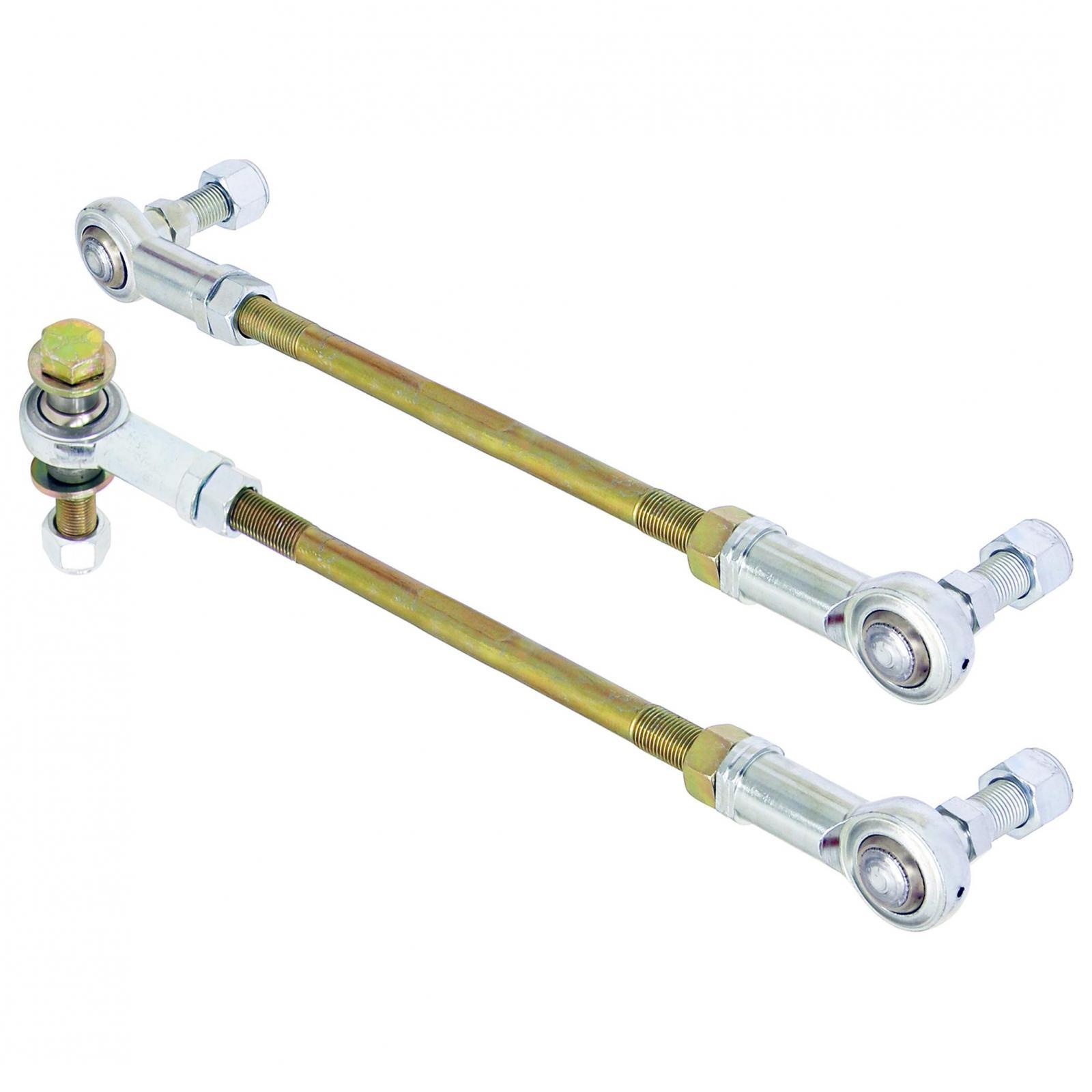

RockJock 4x4 Adjustable Sway Bar End Link Kit for JL/JT Front (8 1/2 Inch Long Rods w/ heim joints and Jam Nuts pair) - RJ-243100-101
RockJock's Adjustable Sway Bar End Link Set for the front of Jeep JL Wranglers and JT Gladiators features 8 1/2 inch long link rods with 2 5/8 inch of 1/2 inch-20 LH thread and 2 5/8 inch of 1/2 inch-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links. Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift.
You can simply buy a complete new link set to accommodate your needs. To accommodate the JL and JT application, this kit includes 3 heim joints that feature 1/2 inch-20 RH thread studs and one thru-bolt heim joint, high-misalignment spacers and hardware for use at the passenger's side of axle housing location. Nyloc nuts and jam nuts are included.
Kit Fits:
- (Included In) Jeep JL Wrangler and JT Gladiator Suspension Kits - All
- (Included in) Jeep JL Wrangler and JT Gladiator Front Antirock Sway Bar Kits - All
- Universal Use
Kit Includes:
- (2) 8 1/2 in. Link Rods (gold) (CE-9901RD4)
- Jeep JL Wrangler and JT Gladiator Front Sway Bar Link Hardware Pack (CE-99005JLF)
Gold Rod Specs:
- 8 1/2 in. Long
- 1/2 in. Diameter
- 1/2 in.-20 LH Threads - 2 5/8 in. Long
- 1/2 in.-20 RH Threads - 2 5/8 in. Long
- Center Smooth Area - 3 1/4 in. Long
Adjustment Range:
- Closed - At maximum trimming of this rod (15/16 in. of thread left on each side and the heims and jam nuts screwed on til they meet the smooth area of the rod), C-C is 8 3/8 in.
- Extended - Uncut rods with heims installed safely adjust out to 11 3/4 in. C-C
Notes:
- These are the links that we include in our JL and JT Suspension Kits as well as JL and JT front Antirock Sway Bar Kits
