RockJock 4x4 Johnny Joint Uni-Ball for 3-Links. Fits JL JT Aftermarket Diffs (only) and all JK TJ LJ XJ MJ and ZJ Stock and Aftermarket Diffs. - RJ-301001-101
RockJock Uni-Balls for Front Axle Housings are used in 3-link suspension applications, where the passenger's side upper control arm has been eliminated and all of the suspension load is now being applied to the one axle housing mounting location.
Our Uni-Balls press into the stock bushing holes on the casting side, driver's side ONLY) of the front differential housing and provide a durable solution that incorporates a 5/8 inch thru-bolt hole for heavier hardware.
This Uni-Ball will press into a stock JK or a stock TJ/LJ/XJ/MJ/ZJ housing, as well as aftermarket replacement differentials from companies such as Dana, UD-60s), Dynatrac, East Coast Gear, Fusion 4x4 and Currie Enterprises, cast center housings ONLY, does not apply to 9 inch / fabricated style differentials).
Additionally, most aftermarket differentials that are intended for installation in a JL/JT vehicle, still retain the bushing specs. of a JK bushing, making this the applicable Uni-Ball to install in an aftermarket differential, again, cast center only, not 9 inch style going into a JL/JT for STOCK JL/JT housings, see our RJ-301002-101 Uni-Ball.
The mounting width of the center pivoting assembly is 2 inch, to allow it to fit into the fork on JL/JT/JK/TJ/LJ/XJ/MJ/XJ front upper control arm, however, the 5/8 inch thru-bolt hole will require drilling of the bolt hole in the control arm fork. Uni-Balls feature a sealed bearing assembly, so no greasing is required. Finish is clear zinc plating.
Kit Fits:
- Jeep Wrangler JL Unlimited (4-door) - casting/driver's side ONLY w/ aftermarket differential w/ JK bushing specs. ONLY
- Jeep Wrangler JL (2-door) - casting/driver's side ONLY w/ aftermarket differential w/ JK bushing specs. ONLY
- Jeep Gladiator JT - casting/driver's side ONLY w/ aftermarket differential w/ JK bushing specs. ONLY
- Jeep Wrangler TJ - casting/driver's side ONLY of stock or aftermarket differential
- Jeep Wrangler TJ Unlimited (LJ) - casting/driver's side ONLY of stock or aftermarket differential
- Jeep Cherokee XJ - casting/driver's side ONLY of stock or aftermarket differential
- Jeep Comanche MJ - casting/driver's side ONLY of stock or aftermarket differential
- Jeep Grand Cherokee ZJ - casting/driver's side ONLY of stock or aftermarket differential
Kit Includes:
Uni-Ball Specs:

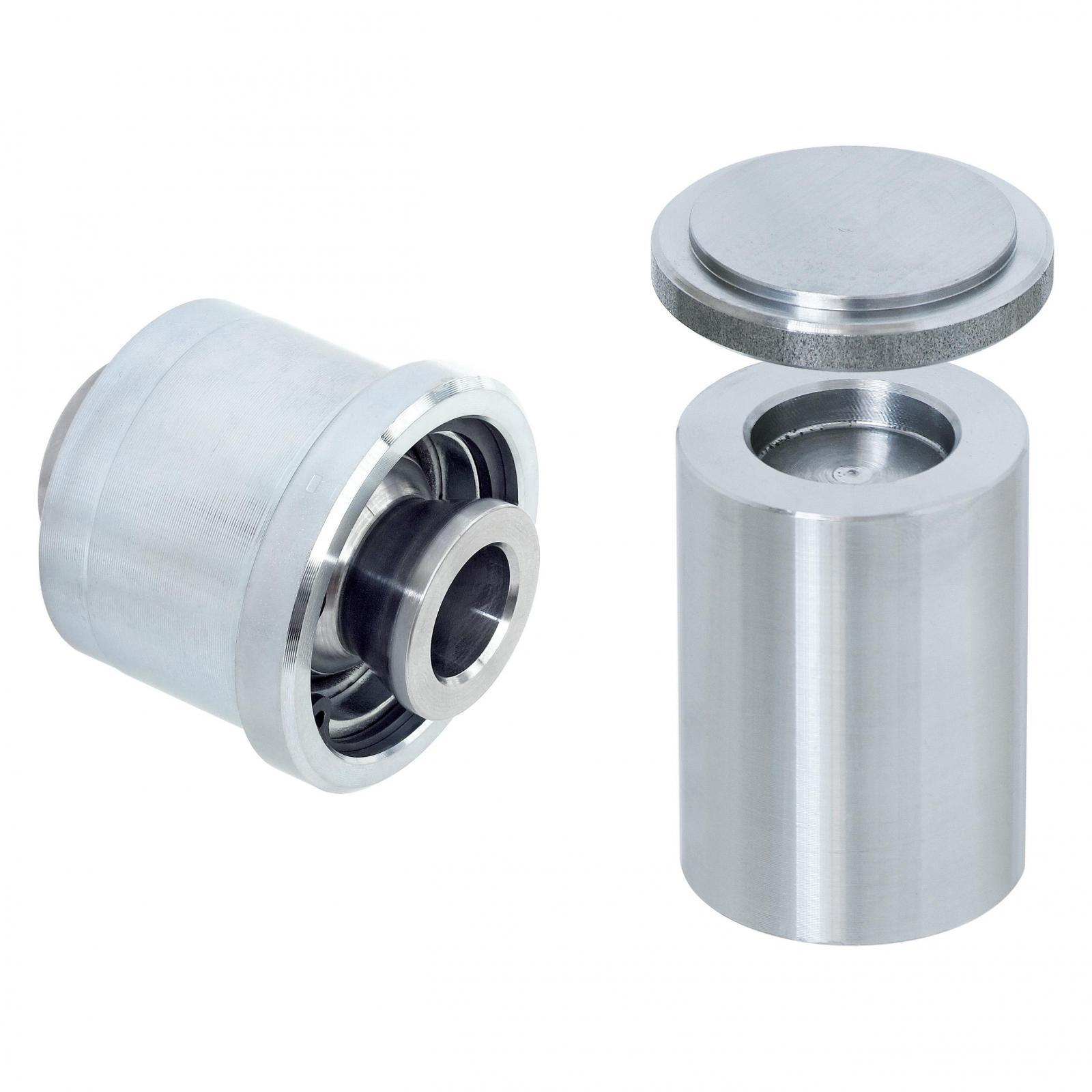

- CNC machined steel outer barrel, clear zinc plated (1.793 in. on the press fit area)
- Stainless steel, sealed spherical bearing assembly
- Stainless steel high misalignment spacers (provide for a 2 in. mounting width and a 5/8 in. thru-hole)
Notes:

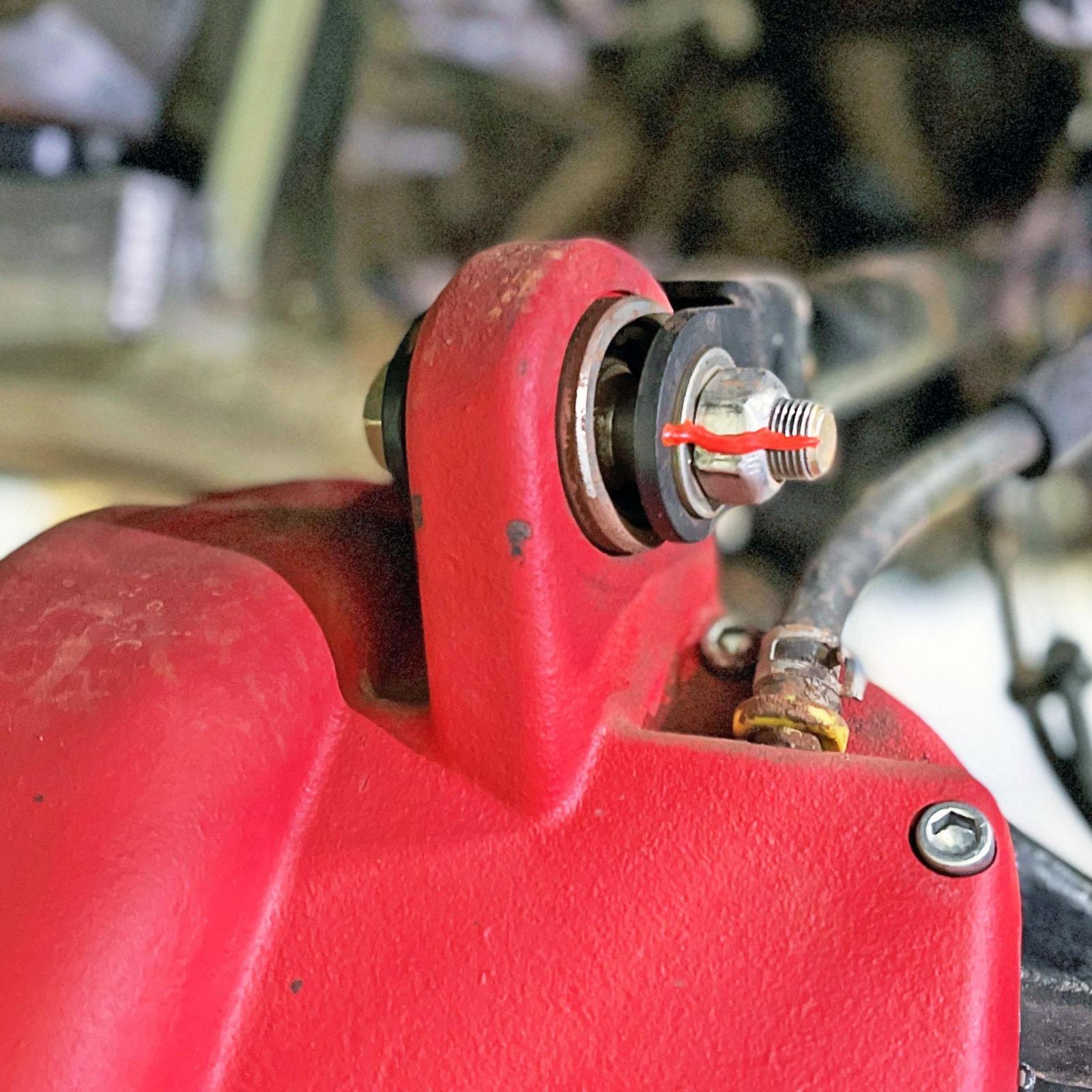

- Uni-Balls are ONLY used on the driver's side of the differential housing where they install into the machined hole in the cast iron loop on the top of the differential casting above the differential cover. Uni-Balls are for use in 3-link applications and NOT for use on the passenger's side of any differential.
- Not for use on 9 in. Ford / fabricated style differentials.
- A 5/8 in. drill bit and drilling of the control arm mounting bolt hole in the control arm fork will be necessary for assembly.
- Purchase RJ-530000-1 and RJ-530000-3 for an easy install tool for this Uni-Ball.
- Be Aware the factory frame end of your upper control arms are NOT sufficient to support being your only control arm! You must modify/replace your frame bracket so that a 2 1/2 in. Johnny Joint may be installed!
