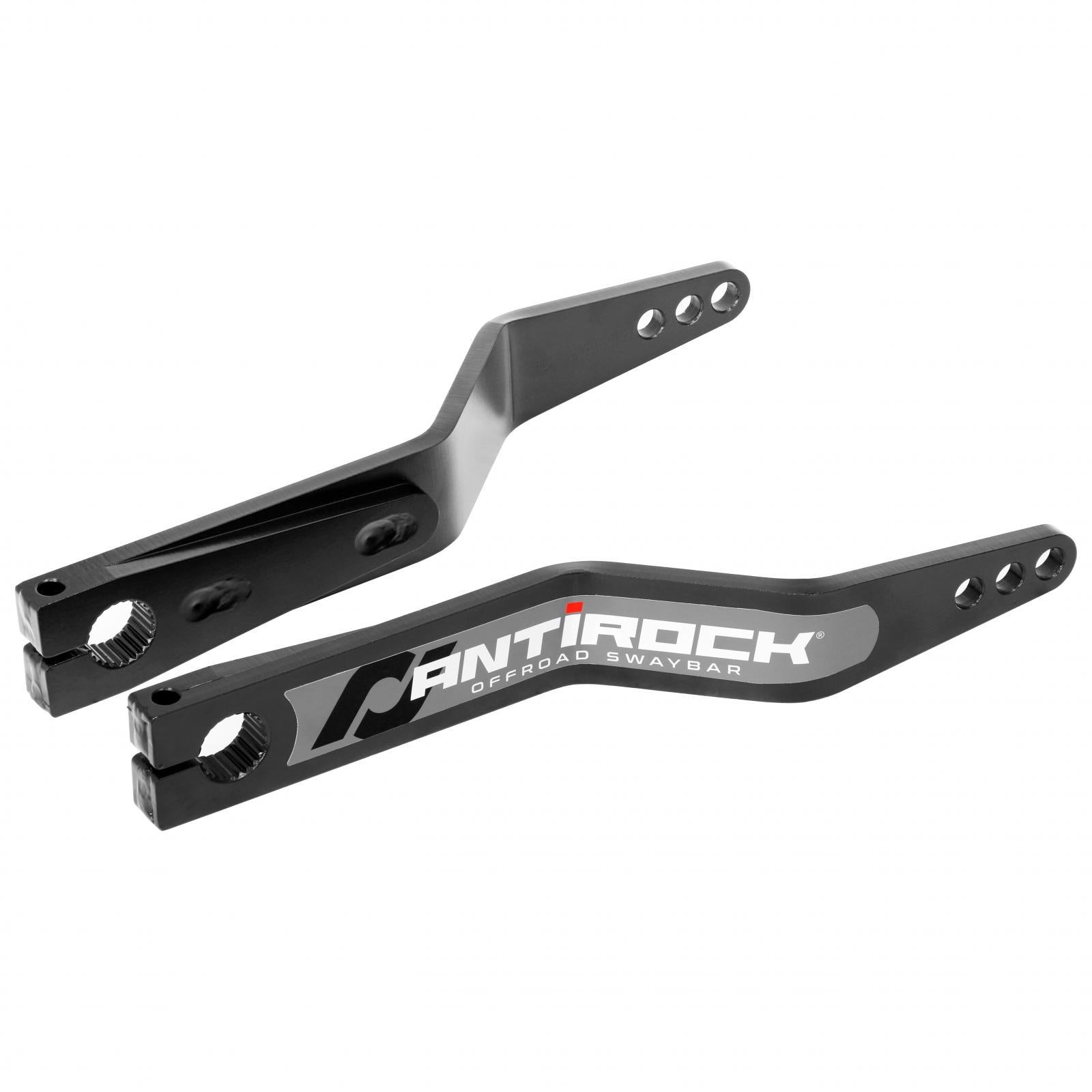

RockJock 4x4 Antirock Fabricated Steel Sway Bar Arms, 15.2 in. Long, 2.5 in. Offset Bend, 3 Holes - RJ-282101-101
RockJock's 15 in. Fabricated Steel Antirock Sway Bar Arms are available separately for custom builders or as replacement parts for existing kits. These arms would be replacements for the arms found in our 2021-up Bronco front Antirock kits.
These specific arms are 15 in. long from tip to tip, 3/4 in. thick at the splines, 3/8 in. thick the balance of the body of the arm feature a 2 1/2 in. offset bend to provide clearance in applications where it's needed. At the arm mounting end, you'll find our standard 25 spline that fits all common Antirock torsion bars.
At the end link mounting end you'll find three 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. The end 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.
Arms Fit:
- Universal Application (in 25 spline torsion bar applications)
- 2021-up Bronco front Antirock Kit (RJ-286100-101)
Kit Includes:
- (1) Pair of 15 in. long Fabricated Steel Antirock Sway Bar Arms

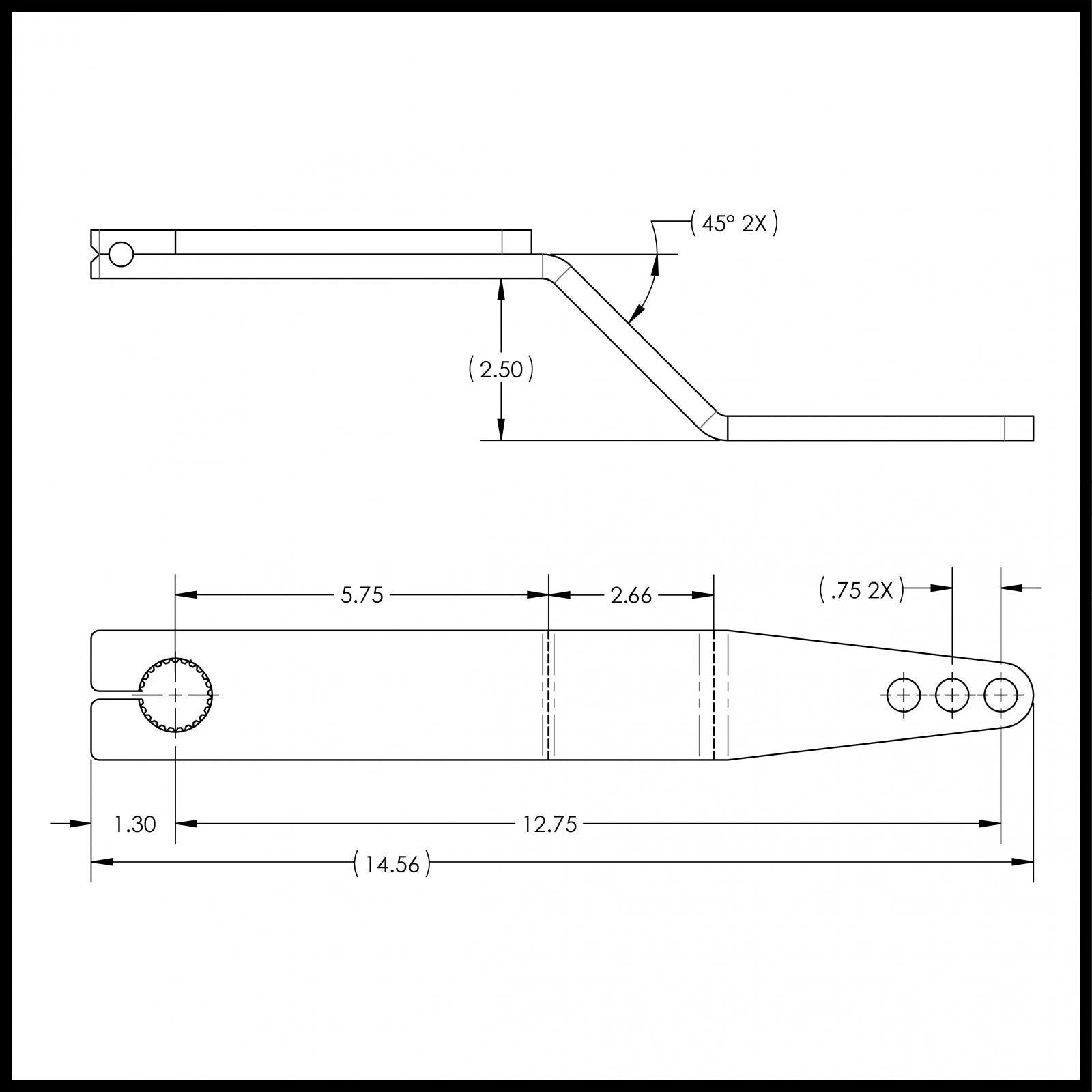

Component Specs:
- Overall length = 15 in. (measured on a flat plane)
- Material = mild steel
- Thickness: = 3/4 in. at the splines, 3/8 in. the balance of the body of the arm
- Offset = 2 1/2 in.
- Spline count = 25
- Center of splined hole to center of nearest 1/2 in. hole = 10.75 in.
- Center of splined hole to center of middle 1/2 in. hole = 11.75 in.
- Center of splined hole to center of farthest 1/2 in. hole = 12.75 in.
- Weight = 9 lbs. (for the pair)
Notes:
- These are the replacement arms for 2021-up Bronco front Antirock kits.
- The end 2 holes are able to be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.
- See CE-99005A for sway bar arm hardware kit.
