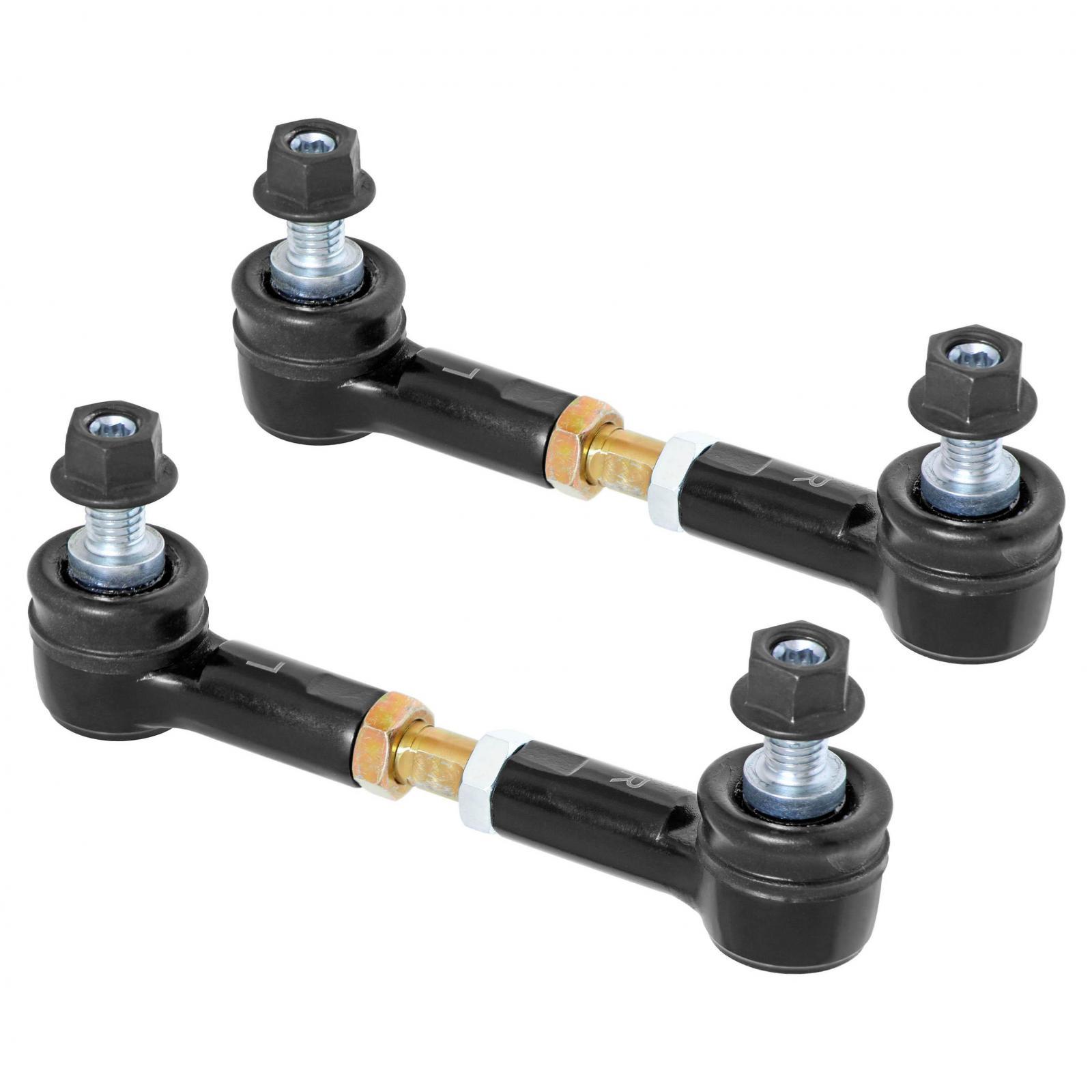

RockJock 4x4 Adjustable Sway Bar End Link Kit (3 1/2 in. Long Rods w/ Sealed Rod Ends and Jam Nuts) - RJ-283100-101
This RockJock Adjustable Sway Bar End Link Set features 3 1/2 in. long link rods with 1.40 in. of 1/2 in.-20 LH thread and 1.40 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
Kit Fits:
- (Included in) 2021-Up Bronco Front Antirock Sway Bar Kits
- Universal Use
Kit Includes:
- (2) 3 1/2 in. End Link Rods (gold)
- (2) 1/2 in.-20 LH Sealed Rod Ends
- (2) 1/2 in.-20 RH Sealed Rod Ends
- (2) 1/2 in.-20 LH Jam Nuts
- (2) 1/2 in.-20 RH Jam Nuts
Gold Rod Specs:
- 3 1/2 in. Long
- 1/2 in. Diameter
- 1/2 in.-20 LH Threads - 1.40 in. Long
- 1/2 in.-20 RH Threads - 1.40 in. Long
- Center Smooth Area - .700 in. Long
- Wrench Flat accepts a 1/2 in. wrench
Adjustment Range:
- Closed - At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 6.215 in.
- Extended - Uncut rods with ends installed safely adjust out to 7.140 in. C-C
Notes:
- These are the links that we include in our 2021-up Bronco front Antirock Sway Bar Kit
- Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms.
- Wrench flats: gold rods - 1/2 in. wrench, sealed rod ends - 18mm wrench, jam nuts - 3/4 in. wrench
